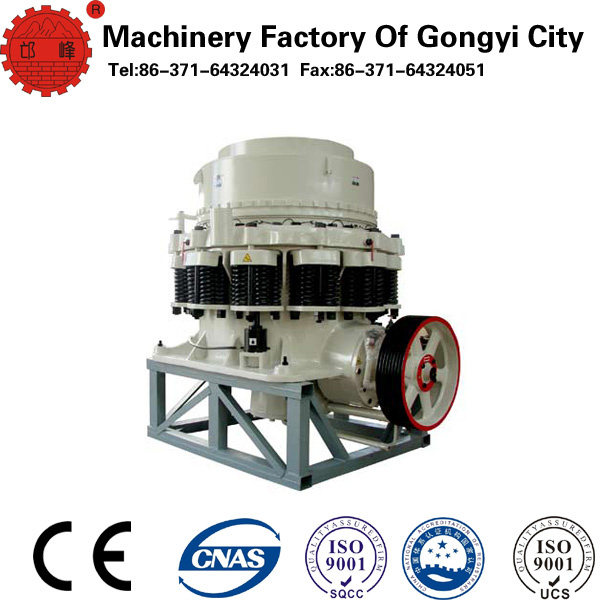

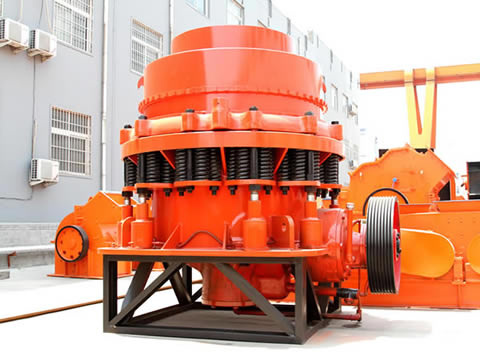

Mineral Cone Crusher
A cone crusher is generally used as a secondary crusher in a crushing circuit. Cone crushers are used extensively throughout the aggregate and mineral processing industry.
Brief Introduction to Mineral Cone Crusher:
A cone crusher is generally used as a secondary crusher in a crushing circuit. Cone crushers are designated in size either by the gape and mantle diameter or by the size of the receiving opening. Cone crushers can be used for primary or secondary crushing. Cone crushers are used extensively throughout the aggregate and mineral processing industry.
Symons cone crusher lifts or drops dynamic cone through each single hydraulic cylinder to realize a variety of functions such as overload protection and cleaning chamber. Configured with electronic intelligent throat control system, hydraulic cone crusher realizes process control and operation optimization. It has been widely used for the crushing of medium or above medium hardness ores and rocks in metallurgical industry, building materials industry, road construction, chemical and silicate industries.
Working Principle of Mineral Cone Crusher:

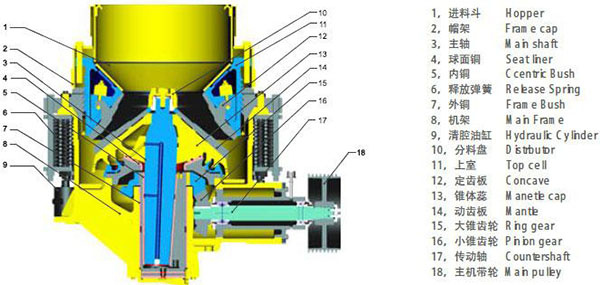

In the working process of cone crusher, motor drives rotation of eccentric bushing through pulley or coupling; transmission shaft swings forced by eccentric shaft sleeve, which makes the surface of breaking wall sometimes near and sometimes leave the surface of rolling mortar wall, so that the materials are continuously impacted, extruded and bent in a ring crushing cavity.
Product Advantage of Mineral Cone Crusher:
High reliability, good stability
Convenient maintenance, easy operation
Low operation costs, wide application range
Laminating crushing makes good discharging grain shape
Cost effective
Long life
| Model | Cone big end dia(mm) | Input dimension (mm) | Size of discharge open (mm) | Capacity (T/h) | Main motor | Overall
dimension (m) |
| Power (Kw) | Rotating speed | Voltage (V) | Length (m) | Width (m) | Height (m) |
| 2ft | fine | 610mm | 35 | 3-13 | 9-36 | 22 | 985 | 380 | 2.195 | 1.158 | 1.651 |
| coarse | 51 | 5-16 | 16-50 |
| 3ft | fine | 914mm | 41 | 3-13 | 27-90 | 75 | 985 | 380 | 2.656 | 1.746 | 2.241 |
| medium | 60 | 3-16 | 27-100 |
| coarse | 76 | 6-19 | 60-126 |
| 4ft | fine | 1219mm | 57 | 5-16 | 50-132 | 110 | 985 | 380 | 2.56 | 1.942 | 2.928 |
| medium | 73 | 10-16 | 90-145 |
| coarse | 89 | 13-19 | 141-181 |
| Extra | 117 | 13-25 | 145-218 |
| 4 1/4ft | fine | 1295mm | 64 | 3-16 | 36-163 | 155 | 985 | 380 | 2.958 | 2.254 | 3.156 |
| medium | 89 | 6-16 | 82-163 |
| coarse | 105 | 10-25 | 169-227 |
| Extra | 133 | 19-25 | 209-236 |
| 5 1/2ft | fine | 1679mm | 70 | 5-13 | 90-209 | 240 | 985 | 380 | 3.917 | 2.87 | 3.771 |
| medium | 89 | 6-13 | 136-281 |
| coarse | 133 | 10-19 | 190-336 |
| Extra | 133 | 13-19 | 253-336 |
| 7ft | fine | 2134mm | 105 | 5-16 | 190-408 | 400 | 985 | 380 | 4.13 | 3.251 | 4.454 |
| medium | 133 | 10-19 | 354-508 |
| coarse | 178 | 13-25 | 454-599 |
| Extra | 203 | 16-25 | 508-653 |
Remarks: Same as ** |
