Q1 Dual 10" Line Array System, Line Array, PRO Audio, Outdoor System
Product Specifications
| Prod Model: |
Q1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Lf: |
10 Inch |
| RMS: |
800W |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| THD: |
0.005%-0.01% |
| Certification: |
SGS |
Product Description

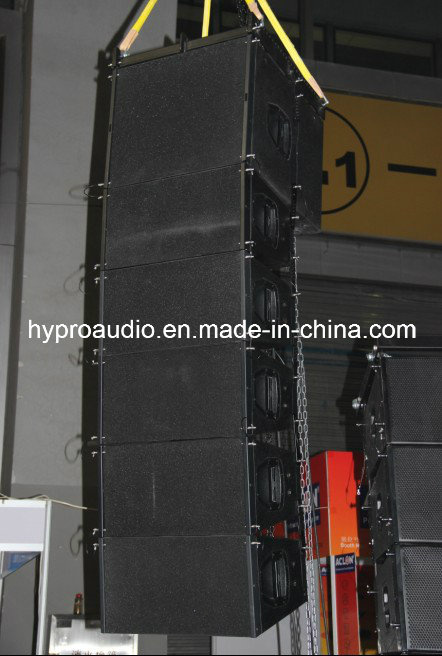

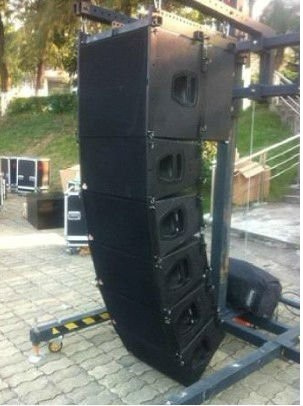

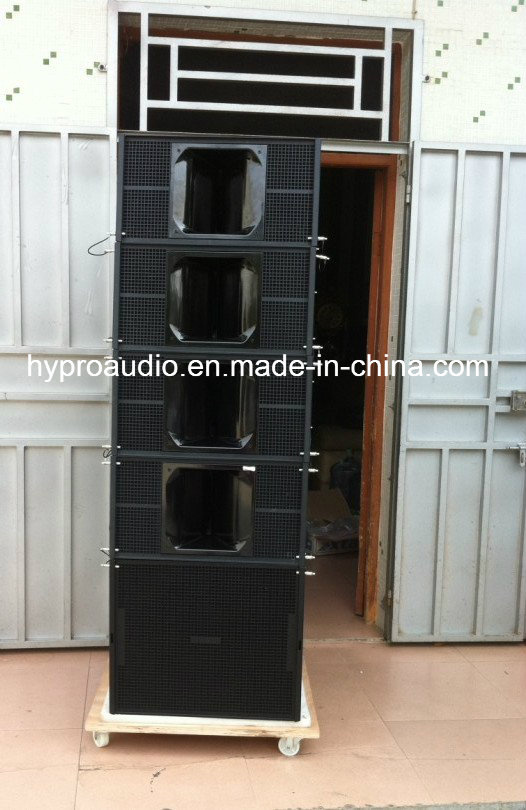

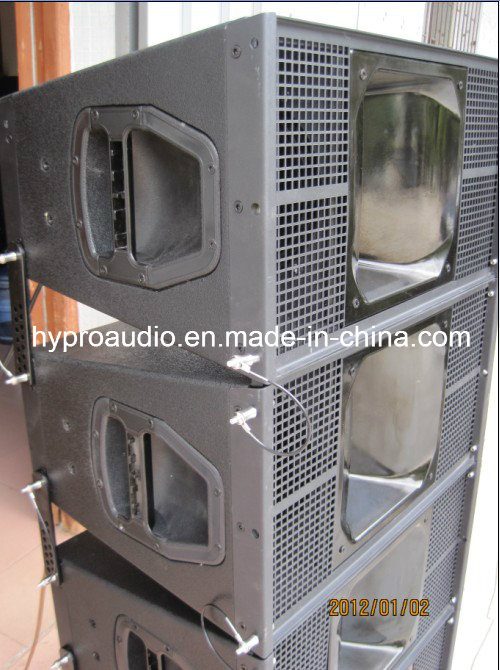

The Q1 is a passive 2 way loudspeaker housing two 10" LF drivers positioned in a dipolar arrangement and a 3" HF compression driver fitted to a toroidal wave shaping device. The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wave front. The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to twenty cabinets with a fully user and venue defined vertical profile.
| Frequency response (-3dB) | 60Hz-19KHz |
| Components | LF: 2x10in,Neodymium
HF:1x3inch, Neodymium |
| Nominal Impedance | 8ohms |
| System sensitivity (1w@1m) | 106dB SPL |
| Maximum SPL | 139dB |
| Power handling | 800W |
| Peak power | 1600W |
| HxV | 75°x15° |
| Dimensions (W x D x H) | 583x310x425 mm |
| Connectors | 2xSpeakon connectors (NL 4) |
| Enclosure material | 15mm plywood |
| Finish | Textured black paint |
| Grille | Black perforated steel |
| NG(Kg) | 23kg |
Guangzhou Hao Yang PRO Audio Manufactory was founded in 1998, a number of its brands; Agent and a number of famous foreign brands, such as: The United States, Factory is a specialized professional stage doing fine speaker, professional audio equipment and digital audio system for R & D and production, sales in one of the producers; Warm service units in order to survive, quality assurance, stability, technological innovation and development, domestic and foreign customers for the cost-effective professional audio equipment.
Professional audio equipment factory targeted for its strong and took advantage of a variety of applications, According to the designers of the product adaptation to different characteristics of the product structure and configuration of the different functions of the formation of a series of widely used in high-end KTV, theaters, sports venues, outdoor performances, nightclubs, indoor SHOW it, the stage bars, Multi-function hall and many other places use the product line. Our products may not be the best, but our product is the most applicable, the most reliable, most cost-effective!
At the same time, in the bigger, stronger, do a good job in their own brand names outside the factory for domestic and foreign customers with OEM, ODM services for customers with special needs box processing services.
