Q1--Dual10 Inch Line Array Speaker, PRO Audio, PA System
Product Specifications
| Prod Model: |
Q1 and Q-Sub |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Components: |
2X10"+1X3" |
| Brand Name: |
Diase |
| Driver: |
Neodymium |
| Usages: |
Concert, Band, Stadium, Church, Theate |
| Package: |
Carton or Flight Case |
| Noise: |
<102dB |
| Hi-Fi: |
Not Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker System: |
Optional Combination |
| Speaker Material: |
Wood |
| Application: |
Commercial |
| Certification: |
SGS |
Product Description
Q series system ---Q1 and Q-sub
1. Line array speaker, PRO audio, PA system
2. 2x10"+1x3" Neodymium
3. High copy D&B audio
4. Concert, Band, stadium, Church, theateQ1:

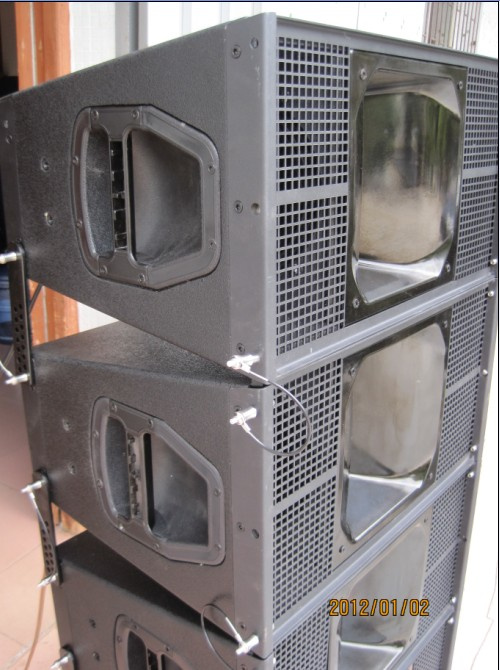

1: The Q1 is a passive 2-way loudspeaker housing two 10" LF drivers positioned in a dipolar arrangement and a 3" HF compression driver fitted to a toroidal wave shaping device.
2:The 75° constant directivity horizontal dispersion pattern is maintained down to 400 Hz, while the vertical HF dispersion of 15° allows the Q1 to be used to construct vertical columns that produce a curved coherent wave front.

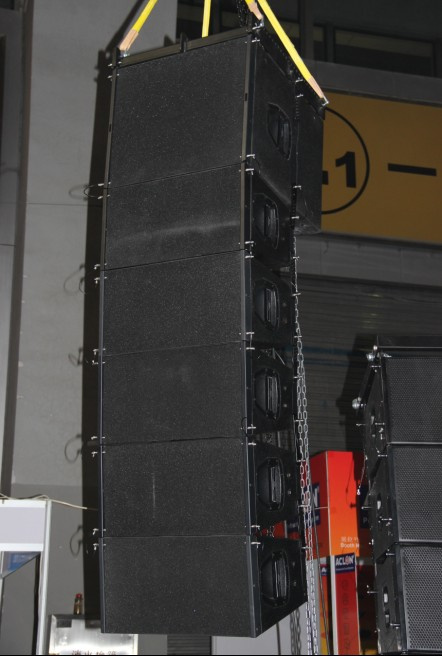

3:The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0° and 14°. Q1 cabinets can therefore be used in vertical configurations starting from two cabinets with a 15° to 30° dispersion, up to twenty cabinets with a fully user and venue defined vertical profile.
Q-SUB :
1: The Q-SUB is an passive bass-reflex loudspeaker fitted with a high excursion 18" driver.

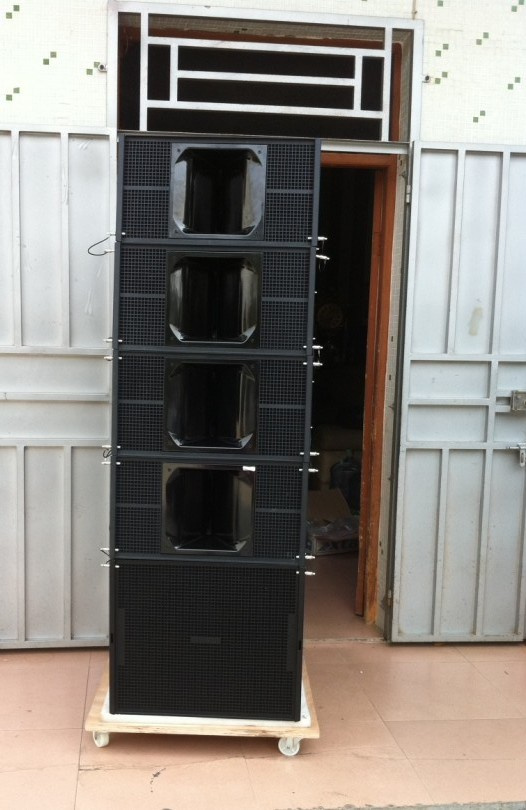

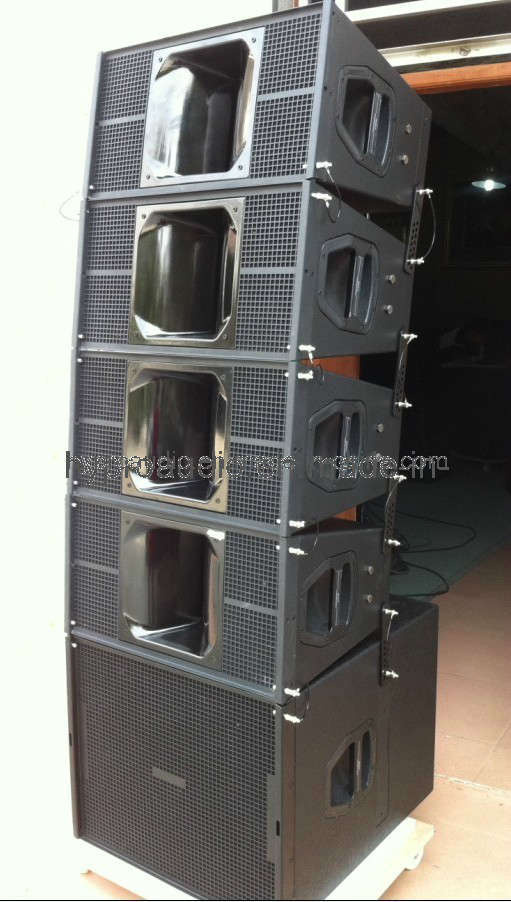

2 : The Q -SUB is mechanically compatible with the Q1 and Q7; ten sockets in the front grill and side panels for Q-Series rigging components permit use in various combinations, either flown or ground stacked.
3 :The Q -SUB cabinet is constructed from plywood with an impact resistant paint finish, a pair of handles, four heavy duty wheels and an M20 threaded flange in the top panel to accept a loudspeaker stand.
| Q1 Dual 10" Line Array System(Neodymium Components) |
| Frequency response (-3dB) | 60Hz-19KHz |
| Components | LF: 2x10in, Neodymium
1x3inch, Neodymium |
| Nominal Impedance | 8ohms |
| System sensitivity (1w@1m) | 106dB SPL |
| Maximum SPL | 139dB |
| Power handling | 800W |
| Peak power | 1600W |
| HxV | 75° x15° |
| Dimensions (W x D x H) | 583x310x425 mm |
| Connectors | 2xSpeakon| connectors (NL 4) |
| Enclosure material | 15mm plywood |
| Finish | Textured black paint |
| Grille | Black perforated steel |
| NG(Kg) | 23kg |
| Q-sub reflected low frequency |
| Frequency response (-3dB) | 40Hz-200Hz |
| Components | 1x18" woofer(Neodymium) |
| System sensitivity (1w@1m) | 106dB SPL |
| Maximum SPL | 133dB |
| Power handling | 800W |
| Peak power | 1600W |
| Nominal Impedance | 8ohms |
| Connectors | 2xSpeakon connectors (NL 4) |
| Enclosure | 15mm plywood, compact reflected low frequency |
| Finish | Textured black paint |
| Grille | Black perforated steel |
| Dimensions (W x D x H) | 583x486x668 mm |
| NG(Kg) | 34kg |
Guangzhou Hao Yang PRO Audio Manufactory was founded in 1998, a number of its brands; Agent and a number of famous foreign brands, such as: The United States, Factory is a specialized professional stage doing fine speaker, professional audio equipment and digital audio system for R & D and production, sales in one of the producers; Warm service units in order to survive, quality assurance, stability, technological innovation and development, domestic and foreign customers for the cost-effective professional audio equipment.
Professional audio equipment factory targeted for its strong and took advantage of a variety of applications, According to the designers of the product adaptation to different characteristics of the product structure and configuration of the different functions of the formation of a series of widely used in high-end KTV, theaters, sports venues, outdoor performances, nightclubs, indoor SHOW it, the stage bars, Multi-function hall and many other places use the product line. Our products may not be the best, but our product is the most applicable, the most reliable, most cost-effective!
At the same time, in the bigger, stronger, do a good job in their own brand names outside the factory for domestic and foreign customers with OEM, ODM services for customers with special needs box processing services.
