Product Specifications
| Prod Model: |
Q2406-16 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Channels: |
16 |
| Warranty: |
One Year |
| Frequency: |
850/1800MHz |
| Interface: |
USB/RS232/RJ45 |
| Package Size: |
32*12*13cm |
| Type: |
Internal |
| Interface Type: |
USB |
| Transmission Rate: |
256Kbps |
Product Description

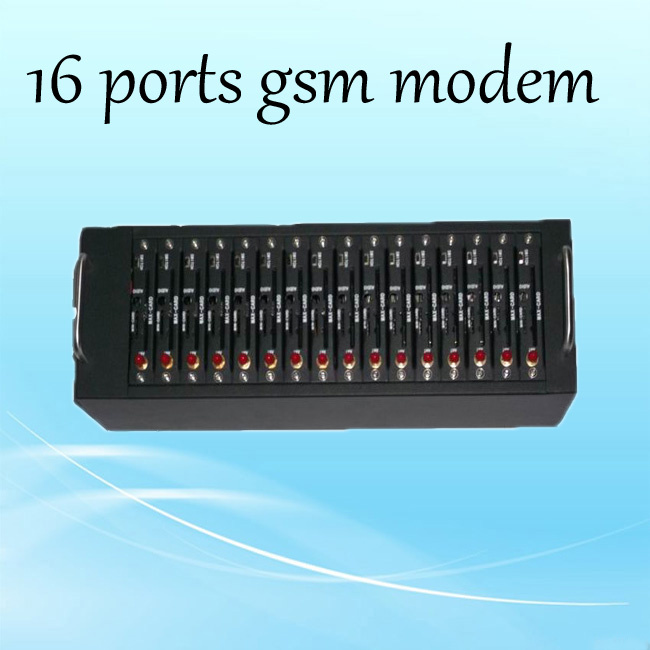

Multi Port send Bulk SMS / MMS 16 Ports with Wavecom Module Q2406 / GSM Modem:
The device built-in 16 wireless modules be inserted 16 SIM cards use 16 cards to send text messages, send speed as 16 times as a single channel modem. It uses the development of WAVECOM module, 220V power supply be a long time stability, generous luxury housing.
Dear friends, if you have questions about the function and the model, pls feel free to contact me.
KEY FEATURES:
Just like 16 single-channel equipments work at the same time
Insert eight SIM cards(big or small)
Connection with the computer through a data line be integrated with Serial 16
Each channel with separate power switch
Each individual module be demolished industrial chassis, elegant shell
BASIC FEATURES:
Asynchronous, transparent or non-transparent, to a maximum 14400 bits / s
Baud Rate: 300-115200 bits / s
Automatic baud rate: From 2400 to 19200 bits / s
Fax support three
Switched voice and fax
V. 42, V. 42bis
GPRS compatible
WAP compatible
SMA Antenna Interface
SIM Card Outlet
Power connector
RS-232, the Mini-dB-9 connector
AT command control ( GSM 07.07 and 07.05)
APPLICATION:
Large shopping malls, supermarkets
Professional market, large wholesalers
Large hotels, large-scale entertainment
Large agencies
Transport, logistics industry
Large enterprises, and institutions
Large hospitals, large bookstore
Newspaper, television and radio stations
Oil Company ( other chain business model)
Government agencies or large township
HARDWARE FEATURE:
Support dual-band GSM: 850/900/ 1800/1900 MHz
Meet the ETSI GSM 2 + standards
Class 4 ( 2W @ 900 MHz) Class 5 ( 1W @ 1800 MHz)
5 -24 VDC power supply (which be directly connected to the nickel- metal
Hydride or lithium batteries)
Operating Temperature: -20 ° C - + 55 ° C
Storage temperature: -25 ° C - + 70 ° C
Size: Standard 1U chassis
|
MODEL NO. |
FUNCTIONS |
FREQUENCY(MHZ) |
|
Q2303 |
SMS |
900/1800 |
|
Q2403 |
SMS/MMS |
900/1800 |
|
Q2406 |
SMS/MMS, TCP/IP protocol |
900/1800 |
|
Q24plus |
SMS/MMS, EDGE |
850/900/1800/1900 |
