Product Specifications
| Prod Model: |
Q3110 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Drum Type Shot Blasting Machine: |
Hot Produt Small Drum Shot Blasting Machine |
| Q3110: |
Rotary Barrel Shot Blasting Machines |
| Rotary Drum Shot Blasting Machines: |
Shot Blasting Machines |
| Rotary Barrel Sand Blasting Machines: |
Sand Blasting Machines |
| Auto Shot Blasting Machines: |
Drum Sand Blasting Machine |
| Tumblast Shot Blasting Machine: |
Tumble Shot Blasting Machine |
| Blasting Machine: |
Auto Sand Blasting Machine |
| Sand Blasting Equipments: |
Sandblasting Machine |
| Cleaning Equipment: |
SA2.5 |
| Q3110 Small Drum Shot Blasting Machine: |
Small Drum Shot Blasting Machine |
| Application: |
Steel Industry |
| Certification: |
ISO |
Product Description

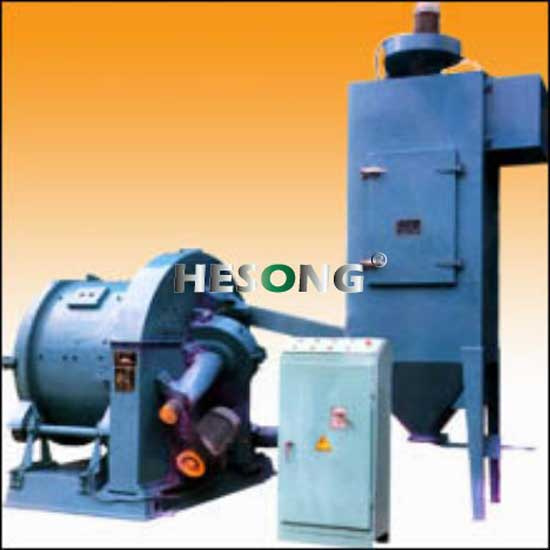

Q3110 Small Drum Shot Blasting Machine
Q3110 Small Drum Shot Blasting Machine Product Description
Drum Type Sand Blasting Machine is designed for Sand Blast Cleaning of small or medium size iron, steel, alloy and non-ferrous castings, forgings, heat treated parts.
The main parts of Q3110 Small Drum Shot Blasting Machine as follows:
1. Drum and the conveying system
The enclosure of the drum is made of casting iron, inside which the protecting plates are fastened with the bolts.
The end-cover is set on one side of the drum, so it is convenient to load or unload workpiece and it's easy to replace the protecting plates and maintenance.
Sand recycling and separating device
The sand-recycling device consists of the screw belt between the protecting plates of the drum and the enclosure, elevator and the separating sieve.
2. Dust collector
The machine adopts dry whirl type dust-collecting device. The separating efficiency is high. For the common green sand, the dust-collecting efficiency is up to 99% and 7μdust can be separated, so the cleaning condition is fine.
3. Blast wheel
The part is the main composition, which consists of impeller round plate, blades distributor, control cage, main shaft etc.
Q3110 Small Drum Shot Blasting Machine Technical index
| ITEM | units | Q3110 | Q3110BI | Q3113 | Q3113BII |
| Drum diameter | mm | 1000 | 1000 | 1300 | 1300 |
| Loading capacity | kg | 300 | 300 | 700 | 700 |
| max.weight of single piece | kg | 15 | 15 | 30 | 30 |
| productivity | kg/h | 600-1500 | 600-1500 | 2500-3500 | 2500-3500 |
| power | kw | 10 | 10 | 14.5 | 16 |
Q3110 Small Drum Shot Blasting Machine Trade Terms:
1. Payment:
1) Telegraphic Transfer (30% advance payment, balance before shipment)
2) Telegraphic Transfer (30% advance payment, balance against the copy of BL)
3) Letter of Credit: at sight
2. Lead Time: 7days after confirmed order
3. Delivery way: by sea
Shot Blasting applicaton:
Agriculture industry
Shot blasting: Tractor components, water pumps, farm implements, etc. |
Automobile industry
Shot blasting: Engine blocks, cylinder heads, break drums, etc. |
Building & infrastructure industry
Shot blasting: Structural steel, bars, transmission & television towers, etc. |
Transportation industry
Shot blasting: Engine blocks, axle & crank shafts, diesel engine components, etc. |
Oil & gas industry
Surface preparation: Pipes coating with paper, cement, epoxy, polythene, coal tar, etc. |
Mining industry
Shot blasting: Bulldozer, dumpers, crushers, land fill equipments, etc. |
Foundry industry
Shot blasting: Automobile, tractor, scooter & motor cycle components, etc. |
Aluminum casting industry
Shot peening: Automobile, scooter & motor cycle components, etc. |
Forging industry
Shot blasting: Crank shafts, connecting rods, torsion bars, other forged components, etc. |
Railway industry
Shot blasting: Side frames, bolster, couplers, rail wheel, entire coach, etc. |
Electrical industry
Shot blasting: Motor body, transformer tank, transmission tower, etc. |
Energy & power industry
Shot blasting: Sturbines, boilers, switch gear components, wind mill blades, column, etc.
Stainless steel industry
Shot blasting: Strips, angles, channels, pipes, tee, etc. |
Aviation industry
Shot peening: Jet engine, blades, propeller, turbine, hubs, land gear components, etc. |
Shipyard industry
Shot blasting: Steel plates, angles, channels, beams, etc. |
Steel mill industry
Shot blasting: Strips, angles, channels, pipes, tee, etc. |
Air polution control equipments
Applications: Foundry, carbon black, furnace, cupola, etc. |
Ceramic/paver industry
Applications: Antiskid, footpath, hospital, government buildig, public places, etc. |
