Product Specifications
Prod Model: |
Q69 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

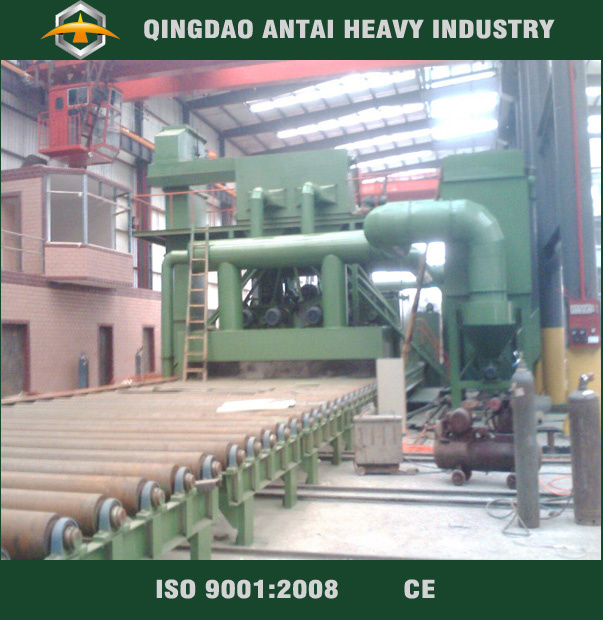

Roller Type Shot Blasting Machine(Q69)
The Q69 series roller type shot blasting machine is pass-through shot blasting machine used for the cleaning of steel plate, steel structure and profile. This kind of shot blasting machine can not only remove the scale and dust during welding, but also can enhance workpieces fatigue resistance, reaching the purpose of improving the inner and surface quality of steel plate
H beam shot blasting machine:
Shot blasting machine for h beam is designed and produced by adopting the advantages of similar products from both within the country and abroad. The rusting cleaning part (shot blasting) adopts high-efficient blast wheel and full shutter type shot sand separator. The sweeping machine adopts specially made high-strength nylon rolling brush and high-pressure ventilator. The preheating and drying part of shot blasting machine may adopt various heating methods. The paint spraying part adopts high-pressure airless spraying method. The complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced.
QH69 shot blasting machine is mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plate and various structural sections, as well as for cleaning and strengthening of metal structural parts.
Technical parameter of pass-through type shot blasting machine Q69 |
No. |
Model
Item |
Q698 |
Q6912 |
Q6915 |
Q6920 |
Q6925 |
Q6930 |
Q6940 |
1 |
Width of workpiece |
mm |
800 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
2 |
Size of inlet opening |
mm |
800*
1600 |
1200*
400 |
1500*
400 |
2000*
400 |
2500*800 |
3000*800 |
4000*400 |
3 |
Length of workpiece |
mm |
1200-
12000 |
1200-
6000 |
1200-
12000 |
1200-
12000 |
3000-12000 |
2400-12000 |
4500-18000 |
4 |
Roller speed |
m/min |
0.5-4 |
0.5-4 |
0.5-5 |
0.5-4 |
0.5-4.5 |
0.5-4 |
2-8 |
5 |
Thickness of plate |
mm |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-110 |
6 |
Abrasive flow rate |
kg/min |
8*120 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
7 |
Abrasive initial fill |
kg |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
8 |
Adjusting height of rolling brush |
mm |
400 |
200 |
350 |
450 |
600 |
850 |
900 |
9 |
Ventilation capacity |
m3/h |
22000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
10 |
Total power of shot blast machine
(no dust collector) |
kw |
90 |
78.3 |
113.6 |
156.6 |
224.55 |
204.8 |
293.6 |
Founded in 2003, Qingdao Antai Heavy Industry Machinery Co., Ltd. Qingdao formly changed to this name in 2011. Located in the beautiful west coast of Qingdao Jiaonan Coastal Industrial Park, Qingdao ANTAI is a research, design, manufacture, installation and consulting services for the integrated machinery and equipment business.
Company has extensive experience brings together the technical and professional workers, the main products are: Shot blasting machine, shot blasting, shot blasting equipment, shot blasting machine, Qingdao, hook type shot blasting machine, sand processing equipment, molding equipment, environmental protection dust removal equipment, and non-standard design and manufacture according to user needs special machinery for specific customers to provide integrated technology solutions.
We always adhere to "honesty is the best selling, personalized service is the final product. Customer satisfaction is the greatest impetus to the development of enterprises. " Aim to establish a perfect quality management system and network information feedback system for filing separately for each customer, order to achieve pre-sales consulting, sales in the production of delivery, efficient after-sales aspects of commissioning parts of the dock, providing customers with maximum caring and thoughtful, efficient and flexible full service.
With quality products, attentive service, our products are sold in more than 30 provinces, and a large number of domestic manufacturers to establish a good relationship of mutual trust and win-win.
Our service philosophy is: Customer satisfaction is the first responsibility of each company's employees. If you or your company and business dealings in the company, our services have any comments, please leave a message or contact my company, we will immediately feedback and make improvements.
Adhering to the "honesty, cooperation and win-win" sales philosophy, we look forward to working with you and your company's sincere cooperation! Choose Aetna Heavy Industries, we will have rain with your peers!
