Anhui Huafeng Machine Manufacturing Co., Ltd. >> QC11y Hydraulic Guillotine Shearing Machine Price List, Digital Play Metal Shearing Machinery

QC11y Hydraulic Guillotine Shearing Machine Price List, Digital Play Metal Shearing Machinery

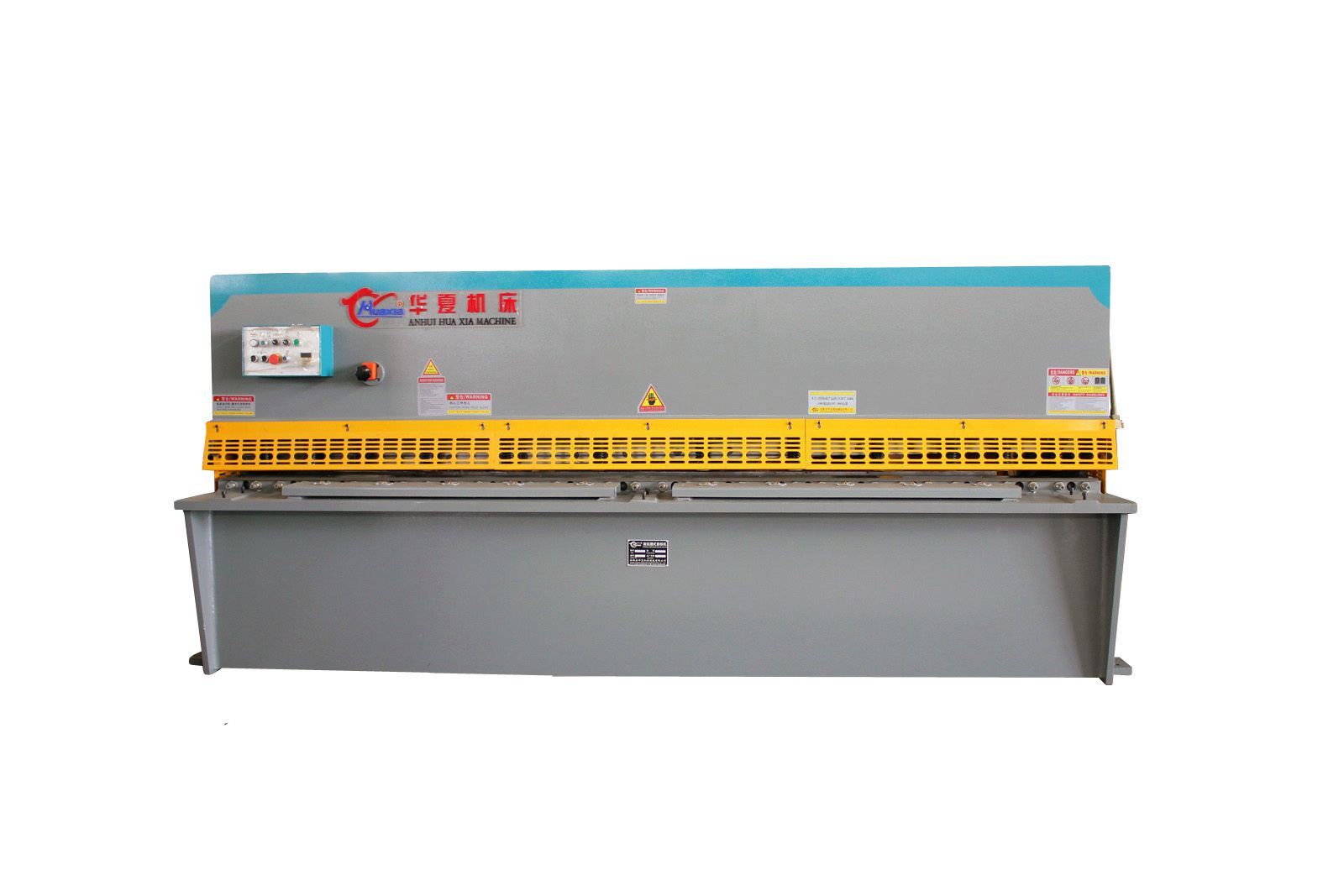

Name: QC11y Hydraulic Guillotine Shearing Machine Price List, Digital Play Metal Shearing Machinery
Brand: china-manufacturer-directory.com
SKU: 738053745
Availability: InStock
Rating: 4.3 (30 reviews)

Supplier:	Anhui Huafeng Machine Manufacturing Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QC11Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name:	Guillotine Shearing Machine Price List
Color:	Optional
Size:	Color
Max Cutting Thickness:	12mm
Max Cutting Width:	4000mm
Back Gauge Range:	750mm
Stroke Times:	7-12/Min
Throat Depth:	130mm
Blade Length:	4100mm
Warranty:	1 Year
Automation:	Automatic
Type For Cutting Machine:	Hydraulic Cutting Machine
Application:	Machinery & Hardware

Product Description

Introduction of machine:

1. Whole body is steel welded, which can eliminate vibration and inner stress, high strength and high rigidity. And Streamlined design make the machine have attractive apperance.

2. Optional CNC controllers, E200, MD11, DAC310, etc to improve the cutting precision

3. Overload and overflow protection in hydraulic system, essure no leakage and gaurantee the long working life

4. Cutting angle can be adjusted, ensure the high cutting precision

5. All seals in cylinder is imported, high quality and high performance

6. Hydraulic accumulator make the machine run smooth and low noise

7. Three-point rolling guide pulley can eliminate the support gap and increase cutting precision.

8. Emergency stops and foot switch on the machine for the safety

9. Plug in hydraulic system can make oil temperature become high slowly, meanwhile it enhances the reliability and safety operation of machine

	(mm)	(mm)	(N/mm2)	(°)	(mm)	(min -1 )	(mm)	(mm)	(kW)	(mm)
Type	Max. cutting thickNess	Max. cutting width	Anti-strength of plate	Shearing angle	Backgauge range	Stroke times	Throat depth	Blade length	Main motor	Dimension(L×W×H)
4×2500	4	2500	450	1°20′	400	17	130	2600	5.5kW	3130×1650×1620	1900()
4×3200	4	3200	450	1°30′	400	14	130	3300	5.5kW	3690×1650×1620
4×4000	4	4000	450	1°30′	500	14	130	4100	5.5kW	4480×1850×1700
4×6000	4	6000	450	1°30′	750	8	130	6040	7.5kW	6460×2200×2000
6×2500	6	2500	450	1°30′	500	14	130	2600	7.5kW	3130×1680×1620
6×3200	6	3200	450	1°30′	500	11	130	3300	7.5kW	3830×1680×1620	E20
6×4000	6	4000	450	1°30′	500	11	130	4100	7.5kW	4630×1850×1700
6×5000	6	5000	450	1°30′	750	8	130	5050	11kW	5700×2150×1900
6×6000	6	6000	450	1°30′	750	8	130	6040	11kW	6700×2250×2100
8×2500	8	2500	450	1°30′	500	14	130	2600	7.5kW	3130×1680×1620
8×3200	8	3200	450	1°30′	500	11	130	3300	7.5kW	3830×1680×1620
8×4000	8	4000	450	1°30′	500	10	130	4100	7.5kW	4630×1850×1700
8×5000	8	5000	450	1°40′	750	8	200	5050	11kW	5700×2150×1900
8×6000	8	6000	450	1°40′	750	5	130	6040	11kW	6700×2300×2200
8×8000	8	8000	450	1°40′	800	4	130	8080	11kW	8800×3000×2800
10×2000	10	2000	450	2°	500	10	130	2050	11kW	2630×1800×1700
10×2500	10	2500	450	2°	500	10	130	2600	11kW	3130×1800×1700
10×3200	10	3200	450	1°40′	500	10	130	3300	11kW	3830×1700×1800
10×4000	10	4000	450	1°40′	750	8	175	4100	11kW	4630×2130×2010
10×5000	10	5000	450	2°	750	7	175	5075	18.5kW	5600×2300×2200
10×6000	10	6000	450	1°40′	800	6	200	6050	18.5kW	6700×2100×2300
10×8000	10	8000	450	1°50′	900	5	130	8080	18.5kW	8800×3100×3000
12×2500	12	2500	450	2°	750	11	175	2600	18.5kW	3245×2067×1900
12×3200	12	3200	450	2°	750	10	175	3300	18.5kW	3945×2167×1950
12×4000	12	4000	450	2°	750	8	175	4100	18.5kW	4745×2235×2000
12×5000	12	5000	450	2°	750	6	200	5075	22kW	5700×2600×2500
12×6000	12	6000	450	2°	800	6	200	6040	22kW	6700×2600×2550
12×7000	12	7000	450	2°	1000	5	200	7070	22kW	7700×2480×2900
12×8000	12	8000	450	2°	1000	5	175	8080	22kW	8800×3600×3000
16×2500	16	2500	450	2°20′	750	10	175	2600	18.5kW	3245×2135×2000
16×3200	16	3200	450	2°18′	750	7	175	3300	18.5kW	3945×2235×2000
16×4000	16	4000	450	2°18′	750	6	200	4100	18.5kW	4745×2235×2200
16×5000	16	5000	450	2°	900	5	130	5075	22kW	5900×2800×2550
16×6000	16	6000	450	2°	900	4	130	6040	22kW	6900×2800×2600
16×8000	16	8000	450	2°20′	1000	5	130	8080	30kW	9300×3400×3250
20×2000	20	2000	450	2°30′	750	8	175	2050	22kW	2700×2200×2100
20×2500	20	2500	450	2°30′	750	6	175	2600	22kW	3200×2300×2200
20×3200	20	3200	450	2°30′	750	6	175	3300	22kW	3945×2127×2235
20×4000	20	4000	450	2°30′	750	5	100	4100	22kW	4800×2700×2550
20×6000	20	6000	450	2°30′	900	4	100	6040	30kW	6900×3300×2900
25×2500	25	2500	450	3°	900	6	100	2600	30kW	3400×2600×2550
25×3200	25	3200	450	3°	900	5	100	3300	30kW	3900×2700×2700
25×4000	25	4000	450	3°	900	4	100	4100	37kW	4800×2900×2750
25×6000	25	6000	450	3°	900	5	200	6040	45kW	6800×3600×3400
30×2500	30	2500	450	3°	900	4	200	2600	37kW	3300×2900×2600
30×3200	30	3200	450	3°30′	900	4	100	3300	45kW	4100×3000×2800
30×4000	30	4000	450	3°30′	900	4	130	4100	45kW	4800×3300×3500
30×6000	30	6000	450	4°	900	3	130	6090	45kW	6800×3500×3000
35×2500	35	2500	450	3°30′	900	4	100	2600	55kW	3300×2900×2850
45×2500	45	2500	450	4°	900	3	100	2600	55kW	3600×3300×3100
40×4000	40	4000	450	4°	900	3	100	4100	75kW	4800×3300×3000

We specialized with plate rolling machine, guillotine shearing machine and other related products. We understand our customers, we care about the future of our business. We want to ensure that you get our good service, not only high quality and speedy delivery.

Press brake, shearing machine, rolling machine, press brake tools.
