Product Specifications
| Prod Model: |
QC11Y |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Any Color |
Product Description

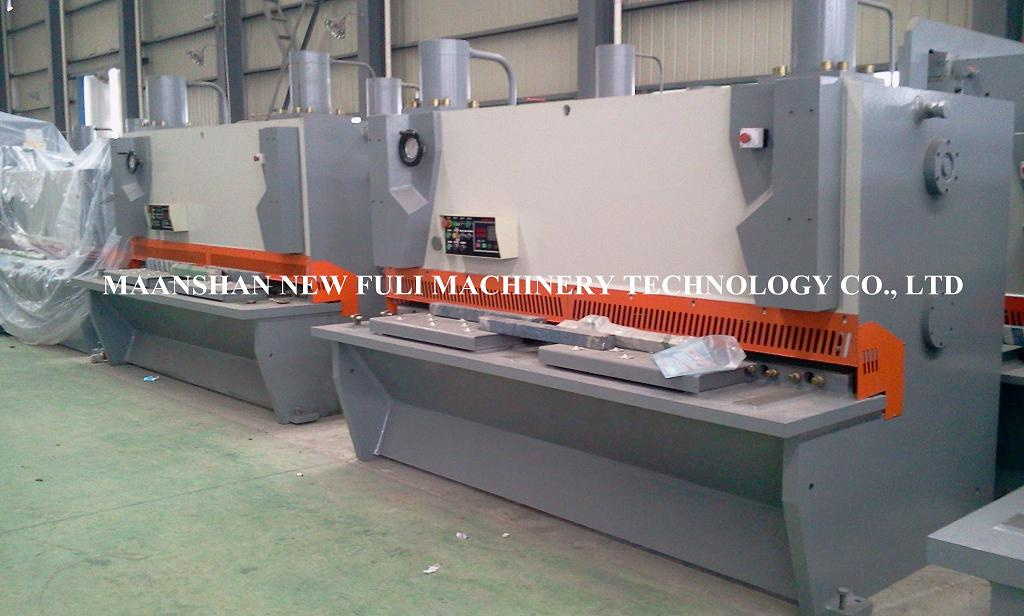

Hydraulic Guillotine Shearing machine are designed and constructed to provide high-speed shearing of blanks with clean, square edges, and to exacting working tolerances.
All Hydraulic Plate Shears feature the swing beam design ensuring consistently accurate parts while providing smooth, quiet operation. These cost efficient, quality shears are available in capacities from 1/4" - 3/4" and 98" - 194" cutting length. Unitized box construction provides for maximum rigidity and strength.
This simple design with swing beam upper blade, strong rigid frames, and constant minimum rake angle assures that the sheared blanks are precisely cut within a minimum of bow twist or camber.
Hydraulic Plate Shears are equipped with the productive features and safety devices for optimum, accurate shearing performance found on more expensive units. Feature for feature, Heller Hydraulic Shears are a smart, economical choice for plate shearing.
With steel sheet welded struture, hydraulic drive system, accumulator back stroke, it has
characters of convenient operation, reliable performance, and beautiful appearance
Clearance between blades has display plate for swift and stepless adjustment
With light-alignment device, and be capable of stepless adjustment of stroke length of blade rack
Adopt barrier protection arrangement for personnel safety
Back gauge adopt E20 control system
Ball screw, rolling guige, servo motor driving or variable frequency control, with low noise and high
precision
Blade clearance is selectable with shear counting function and numerical control adjusting function
|
specifications |
shearing hickness |
shearing width |
strokes |
backgauge range |
shearing angle |
throat height |
|
|
mm |
mm |
min-1 |
mm |
(°) |
mm |
kw |
|
QC11Y-6X2500 |
6 |
2500 |
16-35 |
20-600 |
30-1°30 |
800 |
7.5 |
|
QC11Y-6X3200 |
6 |
3200 |
14-35 |
20-600 |
30-1°30 |
800 |
7.5 |
|
QC11Y-6X4000 |
6 |
4000 |
10-30 |
20-600 |
30-1°30 |
800 |
7.5 |
|
QC11Y-6X5000 |
6 |
5000 |
10-30 |
20-800 |
30-1°30 |
900 |
11 |
|
QC11Y-6X6000 |
6 |
6000 |
8-25 |
20-800 |
30-1°30 |
1000 |
11 |
|
QC11Y-8X2500 |
8 |
2500 |
14-30 |
20-600 |
30-2° |
800 |
11 |
|
QC11Y-8X3200 |
8 |
3200 |
12-30 |
20-600 |
30-2° |
850 |
11 |
|
QC11Y-8X4000 |
8 |
4000 |
10-25 |
20-600 |
30-2° |
900 |
11 |
|
QC11Y-8X5000 |
8 |
5000 |
10-25 |
20-800 |
30-2° |
1000 |
15 |
|
QC11Y-8X6000 |
8 |
6000 |
8-20 |
20-800 |
30-2° |
1050 |
15 |
|
QC11Y-12X2500 |
12 |
2500 |
12-25 |
20-800 |
30-2° |
840 |
15 |
|
QC11Y-12X3200 |
12 |
3200 |
12-25 |
20-800 |
30-2° |
900 |
15 |
|
QC11Y-12X4000 |
12 |
4000 |
8-20 |
20-800 |
30-2° |
940 |
15 |
|
QC11Y-12X5000 |
12 |
5000 |
8-20 |
20-1000 |
30-2° |
1000 |
22 |
|
QC11Y-12X6000 |
12 |
6000 |
6-20 |
20-1000 |
30-2° |
1060 |
30 |
|
QC11Y-16X2500 |
16 |
2500 |
12-20 |
20-800 |
30-1°30 |
840 |
22 |
|
QC11Y-16X3200 |
16 |
3200 |
12-20 |
20-800 |
30-1°30 |
900 |
22 |
|
QC11Y-16X4000 |
16 |
4000 |
8-15 |
20-800 |
30-1°30 |
940 |
22 |
|
QC11Y-16X5000 |
16 |
5000 |
8-15 |
20-1000 |
30-1°30 |
1000 |
30 |
|
QC11Y-16X6000 |
16 |
6000 |
6-15 |
20-1000 |
30-1°30 |
1100 |
37 |
|
QC11Y-20X2500 |
20 |
2500 |
10-20 |
20-800 |
30-3° |
900 |
30 |
|
QC11Y-20X3200 |
20 |
3200 |
10-20 |
20-800 |
30-3° |
950 |
30 |
|
QC11Y-20X4000 |
20 |
4000 |
8-15 |
20-800 |
30-3° |
1100 |
30 |
|
QC11Y-20X5000 |
20 |
5000 |
8-15 |
20-1000 |
30-3° |
1100 |
37 |
|
QC11Y-20X6000 |
20 |
6000 |
6-15 |
20-1000 |
30-3° |
1200 |
37 |
|
QC11Y-25X2500 |
25 |
2500 |
8-15 |
20-800 |
30-1°30 |
900 |
37 |
|
QC11Y-25X3200 |
25 |
3200 |
8-15 |
20-800 |
30-1°30 |
950 |
37 |
|
QC11Y-25X4000 |
25 |
4000 |
6-12 |
20-1000 |
30-1°30 |
1100 |
37 |
|
QC11Y-32X2500 |
32 |
2500 |
6-12 |
20-1000 |
30-4° |
1000 |
55 |
|
QC11Y-32X3200 |
32 |
3200 |
8-12 |
20-1000 |
30-4° |
1100 |
55 |
|
QC11Y-40X2500 |
40 |
2500 |
4-10 |
20-1000 |
30-4° |
1200 |
55 |
|
QC11Y-40X3200 |
40 |
3200 |
4-10 |
20-1000 |
30-4° |
New Fuli specialized in manufacturing machines, machine blades, molds, etc. All the products have the good quality and are famous all the country. Some of the products reach the international level and export to Europe and North America.
Machinery series: Press brake, shearing machine, power press, hydraulic press, rolling machine, bending machine, notching machine, iron worker, etc., which are widely used in special production fields such as decoration, metallurgy, ship, automobile, machinery, aviation, etc.
Blade series: Blades for various industries such as print, wood-working, light, paper, metallurgy, forestry, and plastic, rubber and food processing, etc. Made of the heatproof alloy steel such as H13, HMB, LD, 65Nb, SKH, 5CrW2Si, Cr12MOV, etc.
Mold series: Bending dies, cutting dies, cutting and shaping dies, CNC press brake dies, punching dies. We also can design and produce the molds as customers' requires.
Spark always keep in mind the objective of "famous brand created by sincere heart, good quality created by high technology". The attitude of "high technology, exact manager, considerated services ". And manufacture the exquisite products in this professional industry.
The company local in Bowang industrial development zone, with a ascendant geographical location and convenient transportation, only 28 kilometers away from Nanjing Lukou international Airport. We are looking forward to cooperating with both foreign and domestic friends and creating a brilliant future together.
