Product Specifications
Product Description
USE:

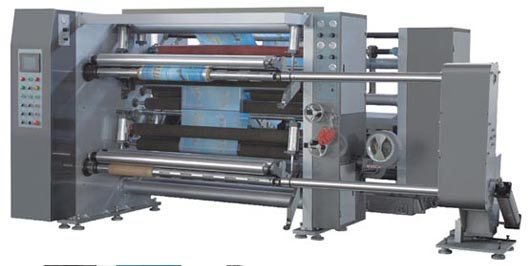

Machinery in series are suitable for stripping of reel-shape materials such as cellophane paper, Aluminum-plate film, Foil, BOPP, PVC.
FEATURE:
1. Adopt the best manner of "speed+ moment ", and frequency converter timing for automatic adjustment, is has the functions including 2. Start cushion, stop working, locking and metering, etc.
2. Adopt full automatic tension controller and powder magnetic brake for unwinding which can keep tension of unwinding invariable
3. Using taper tension controlling for frequency converter of rewinding with digital taper tension controller.
4. Adopt vector frequency converter motor for traction transmission, which can be controlled with invariable line speed.
5. Top air style non-shaft fixing and liquid pressure lifting structure are adopted for raw material loading and discharging, and 7. Screw motor is used for adjusting width.
6. Adopt two manner of vertical cutter and round cutter for slitting.
7. EPC edge correction with air liquid style is used for unwinding edge error correction.
8. The whole set is in fission type structure, which can make it more steady and easy operation.
9. Resistance of raw material can be reduced by new style guide roller when working.
10. Loading and discharging for material will be more convenient more convenient with new style manner.
Width of material: L700mm-1500mm
Diameter of unwinding: 1300mm
Diameter of rewinding: 600mm
Slitting and rewinding specification: 10-250m/min
Min. Width of finished product
Total Weight of machine Net: 15kw
Weight of machine: 4500kg
Overall dimensions (L*W*H): 3300mm*5000mm*2050mm
We are a special enterprise manufacturing trademark, With rich experiences and strong technical strength, we ourselves have researched the products of flexo printing, offset printing machine and die cutting, etc., the other industry we are dealing with is packing machinery, for example, wet tissue packing machine, pillow packing machine, blister packing machine, powder packing machine and so on.
