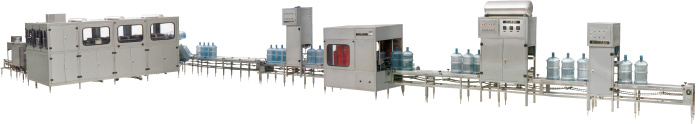

QGF Series Full Automatic Barrel Filling Production Line
Product Specifications
| Prod Model: |
QGF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
ISO |
Product Description
This filling line specially produces 5 gallon barreled drinking water. It has the following types 80 type, 150 type, 300 type, 450 type, 600 type, 900 type. It integrates bottle washer, filler and sealer into one unit. In order to achieve the purpose of multiple injections of washing and sterilizing by means of liquid washing and bleaching are used in bottle washer, washing solution can be used circularly. The sealer can seal barrel caps automatically. This line equips with water spraying device to sterilize capes of bottles in order to ensure those caps are aseptic and healthy, this line can also automatically carry out barrel feeding, washing, sterilizing, filling, capping, counting and products discharging, It is a new kind of barreled water auto-producing line, which integrates mechanism, electricity and pneumatic technologies together.
|
Model |
QGF-80 |
QGF-150 |
QGF-300 |
QGF-450 |
QGF-600 |
QGF-900 |
|
Filling Heads |
1 |
1 |
2 |
3 |
4 |
6 |
|
Volume(L) |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
18.9 |
|
Barrel Size (mm) |
OD270X490 |
OD270X490 |
OD270X490 |
OD270X490 |
OD270X490 |
OD270X490 |
Capacity
(500ml)(b/h) |
80 |
150 |
300 |
450 |
600 |
900 |
|
Gas pressure (MPa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.6 |
0.7 |
|
Gas Consumption (m3/min) |
0.37 |
0.37 |
0.6 |
0.8 |
1 |
1.2 |
|
Motor power (kw) |
1.38 |
1.75 |
3.8 |
3.8 |
7.5 |
9 |
|
Motor Voltage (V) |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
380V/50HZ |
|
Weight (kg) |
500 |
700 |
1200 |
1600 |
2000 |
1500 |
|
Overall Dimension LxWxH (mm) |
2500x1100x1600 |
2800x1100x1600 |
3800x1300x1600 |
4200x1600x1600 |
4800x1800x1600 |
4200x2300x1600
2800x1000x1600 |
