Features:
1.The machine is multi-link type.
2. Mainly consists of main machine, center mechanism, mechanic claw, steam dome, segmented mould controller, tire stripping machine, unloader, cooling roll way, driving water piping, steam piping, force measure device, lubricating system, electrical control syetem, compressed air piping,safety device, top link centering device,etc..
3. Center mechanism: B type
4. Top link moving type: two kinds, sliding back and tilting back
About us:
Qingdao Desiree Group Rubber Machinery Co., Ltd is one of the major companies of Qingdao Desiree Group, which devotes itself to designing and manufacturing of high quality rubber machinery.
The Group is composed of 5 subsidiaries which are Qingdao Desiree Group Surface Treatment Equipment Co., Ltd, Qingdao Desiree Group Rubber Machinery Co., Ltd, Qingdao Desiree Group Automobile Inspection Device Co., Ltd, Qingdao Desiree Group High-rise Parking Equipment Co., Ltd and Qingdao Desiree Group Real Estate Co., Ltd. After decades of development, Qingdao Desiree Group now is Qingdao TOP 15 large-scale private enterprise.

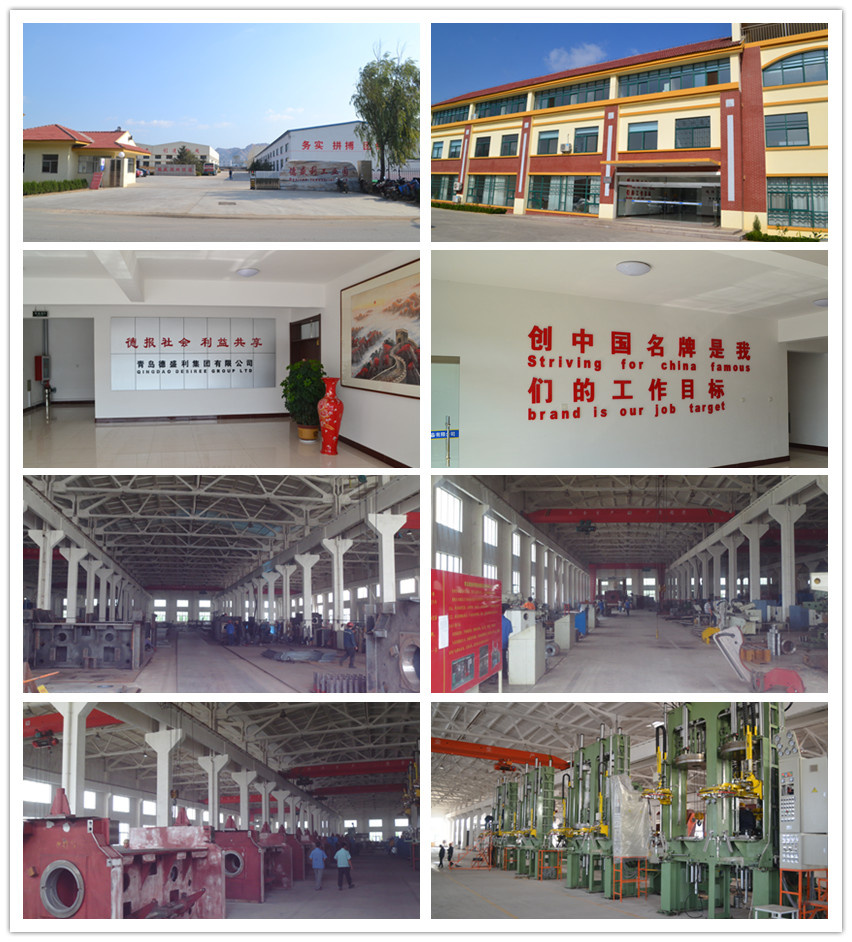

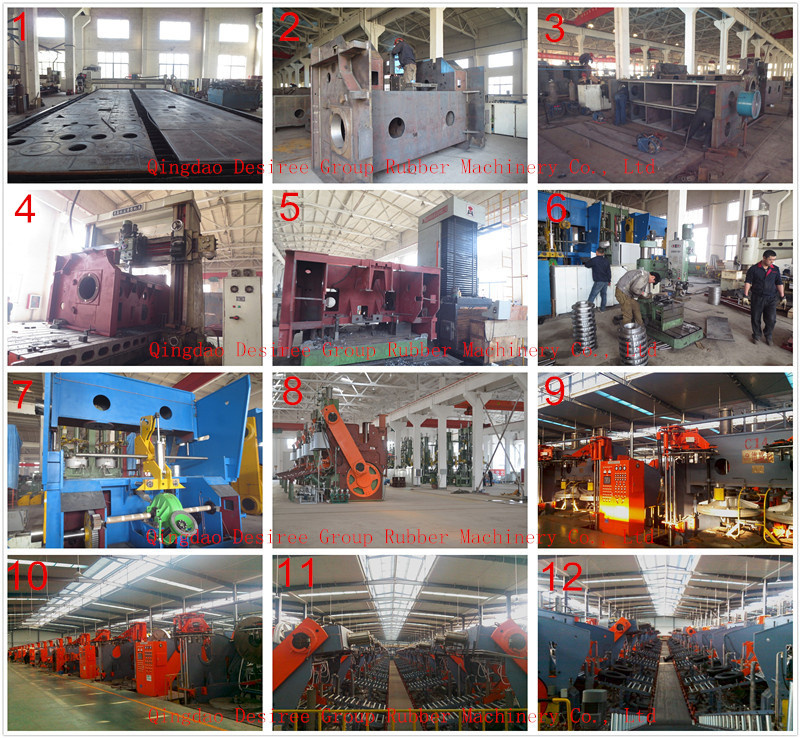

Group has continuously increased the input in basic equipment. Till now, our company has built modern processing workshop, metal working workshop, electric workshop and assembly workshop, and introduced a number of large modern and high-precision machining equipments to guarantee our products quality.
Quality is our life. Striving for China famous brand is our job target.
1. One year warranty after commissioning .
2. Engineers available to service machinery overseas.
3. Any demand, we will give feedback within 24hours.
Mechanical Tire Curing Press Model No. | LL-B1640×2(65.5") | LL-B1525×2(63.5") | LL-B1310×2(55") | LL-B1220×2(48") | LL-B1145×2(45") | LL-B1050×2(42") |
Steam dome specification | 1640 | 1525 | 1310 | 1220 | 1145 | 1050 |
Max mould closing force (kN) | 4500 | 4220 | 2890 | 1920 | 1720 | 1320 |
Height mould (mm) | 254-635 | 254-635 | 245-445 | 305-505 | 230-455 | 180-300 |
Power of main motor(kW) | 16 | 16 | 13 | 11 | 11 | 11 |
Apply bead specification | 19''-24.5'' | 19''-24'' | 16''-20'' | 13''-20'' | 12''-17.5'' | 12''-16'' |
Notes | Works for the vulcanization of TBR , PCR tires or bias tires. | |||||
If it works for curing the bias tires, the press will match with post curing inflator. | ||||||
If it works for curing the radial tires, the press will match with segmented mould controller. |
Prod Model: | 42", 45", 48", 55", 63.5", 65.5" |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

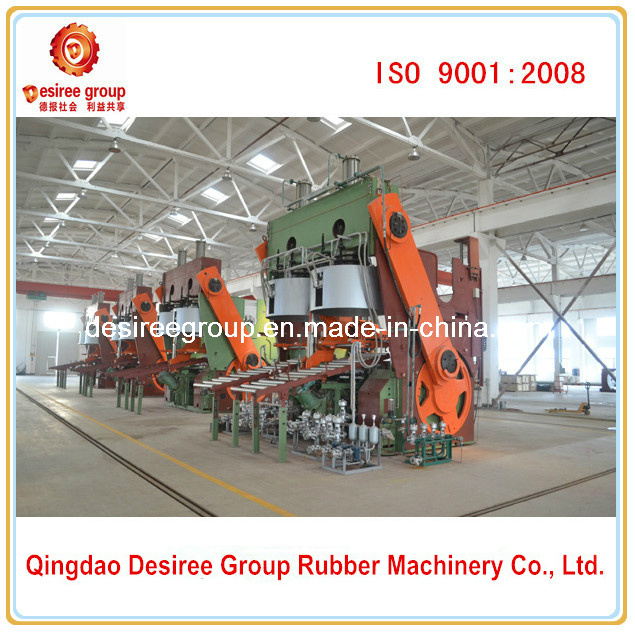

Name: | Tire Curing Press |
Color: | Specified by The Customer |
Piping: | Specified by The Customer |
Warranty: | 12months, 1 Year |
Delivery: | 3months |
Type: | Tire Machinery |
Type Of General Rubber Machinery: | Material Processing Machine |
Type Of Tire Machinery: | Tire Shaping and Curing Press |
Weight: | <50 tons |
Power: | 10~100KW |
Certification: | CE, ISO |
