Qingdao Green Rubber Machinery Co., Ltd. >> Qingdao High Efficiency Rubber Forming Machinery

Qingdao High Efficiency Rubber Forming Machinery

Name: Qingdao High Efficiency Rubber Forming Machinery
Brand: China-Manufacturer-Directory.com
SKU: 690941462
Availability: InStock
Rating: 4.8 (52 reviews)

Supplier:	Qingdao Green Rubber Machinery Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Semi-automatic & manual operation
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Company:	More Than 10years Experience
Use:	Production Rubber Products
Plunger:	Chilled Alloy Cast Iron
Heating:	Electric, Steam
Press:	Hydraulic
Pedestal:	Cast Iron, Section Steel H
Advantage1:	High Working Pressure
Advantage2:	High Producing Efficiency
Colour:	Customer's Requirements
Temperature:	0~200
Certification:	CE, ISO, SGS

Product Description

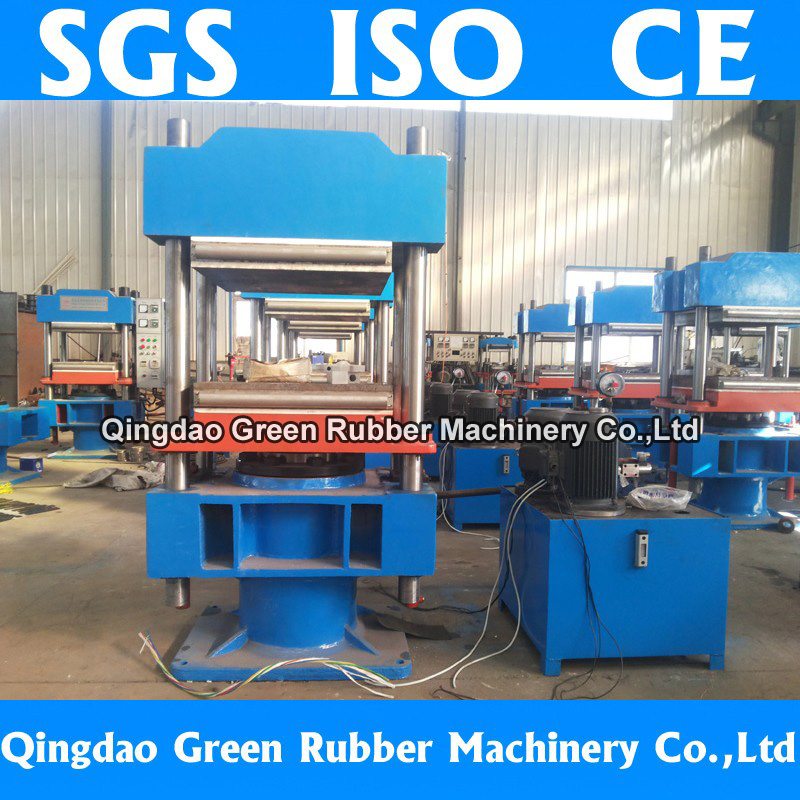

Qingdao High Efficiency Rubber Forming Machinery

Also named

Rubber molding press; Hydraulic Molding Machine; Hydraulic press; Plate press, compression press; Plate vulcanizing machine, vulcanizer.

Main usage

1, The frame type plate vulcanizer applies to vulcanize all kinds of rubber and plastic mould products as well as non-mould products.
2, Applicable line: Rubber Sheet, Oil Seal, O Ring, Gasket, Engine Mountings, Hardware Rubber, Molded Rubber Parts and etc.

Characteristic

1. This vulcanizing machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.

2. The machine is in frame structure with below pressing form (upwards). Under the working hydraulic pressure, the embolism ascends

To make hot plate close for getting pressure, while the embolism descends (namely hot plate turning on) by deadweight of hot plate,

Platform and embolism to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).

3. Made of nodular cast iron, the oil cylinder of machine is improved in compressive strength and wear resistance. Seal ring made of oil-proof rubber is placed in oil cylinder to have sealing effect in working process of this machine.

Combined oil pump, power source of the machine, provides working fluid with certain pressure. Working fluid enters into oil cylinder

By control valve to make control handle on control valve turn to different places, and then embolism is able to ascend or descend.

4. Adopting tubular electric-heating component to heat up, the machine can reduce air pollution to keep workshop clean without boiler.

5. The machine is beautiful in shape, rational in structure, convenient in control, safe and credible as well.

If you interested in our products mentioned above. Kindly let us know by return email. We will do our best to service for you.

Main parameters/Model	XLB--D/Q300x300x2	XLB--D/Q350x350x2	XLB--D/Q400x400x2	XLB--D/Q600x600x2
Nominal and mould force	0.25	0.25	0.5	1
Specification of hot plate	300x300	350x350	400X400	600X600
Number of working layer	2	2	2	2
Piston diameter	140	140	200	300
Max stroke of piston	250	250	250	250
Distance between hot plate	125	125	125	125
Unit area pressure of hot plate	3.5	2.04	3.1	2.78
Motor power	2.2	2.2	2.2	2.2
weight	1000	1000	1500	2700
Overall size	12005801200	12005801200	17806001300	204708101600
comment:we kan be individually customized according to customer requirements.

Qingdao Green Rubber Machinery Co., Ltd (Old name is Qingdao

China Rubber Machinery Factory) was established in 1968, one of a China professional manufacturer in rubber machine field with high-tech technology. We obtain ISO9001: 2008, CE and SGS certification. Our business spread all over the world, such as the United States, Germany, Brazil, Singapore, Malaysia, India, Russia etc.

To produce high quality and the most suitable machine for customers to use is our service aim.

Our company mainly producing: Waste tire recycling machine, rubber powder production line, reclaimed rubber production line, rubber vulcanizing machine, rubber plate vulcanizing machine, tire vulcanizing machine, rubber mixing mill, rubber extruder, rubber filter, rubber cutting machine, rubber sheet cooling line...

Our factory near by the Qingdao Port, so that can greatly lowering the logistics cost. Our company have technical cooperation with experienced engineers whom come from US and Germany. Constantly improve the technical level, make the products comply with international quality standards. All of our products are comply with international quality standards and are greatly appreciated in a variety of markets around the world. We can designing and manufacturing all kinds of special rubber machinery equipment and non-standard rubber machinery equipment according to user requirements.

So that our high quality products and outstanding customer service, have gained a global sales network

Our well-equipped facilities and excellent quality control throughout all stages of production, enable us to guarantee total customer satisfaction.

1. Our machines all pass inspection load test operating before delivery.

2. We provide one year' S guarantee and once the equipment damage during this time we supply free of charge. In order to save maintenance time and reduce the production cost of our guests, you can contact our DCRC by email, MSN or Skype etc., and we will send professional technical personnel with English translator to you to solve equipment matters.

3. Our company have return visits regularly; Including equipment' S maintenance, troubleshooting and customer feedback.

4. Complete after-sales service

If you are interested in our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to establish successful business relationships with new clients around the world in the near future.
