1. CHARACTERS
1) Dispersing power mixing
2) High speed
3) Vacuum, cooling and heating function
4) No dead point
5) Suitable for PU sealant, RTV sealant, HTV sealant, Acrylic sealant
6) CN, ISO9001

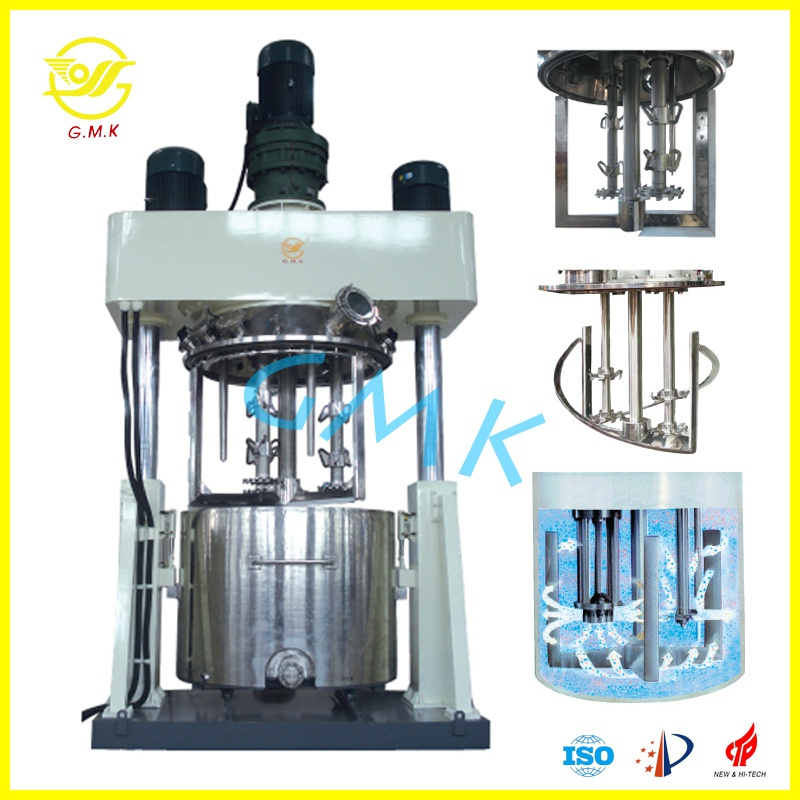

QLF dispersing power mixer is a kind of high-efficiency multifunctional mixer already proved by practice. It can meet the needs of users to quickly change working requirements during operation, and can custom-make various kinds of mixer to meet different viscosity materials on clients' requirements. Working capacity range from 5L to 3500L, power is designed according to viscosity of materials. It is widely used in silicone sealant, adhesive, cosmetics, chemical products, battery, foodstuff, pharmacy and plastic industries, etc. Dispersing power mixer has 3-4 different stirrers inside of vessel, including one low-speed stirrer revolving around vessel axis, and the other 2-3 high-speed stirrers rotating around its own axis at different high speeds to achieve complicated movement of strong shearing and kneading for materials inside of vessel.
The E-shaped scraper inside the equipment revolves around the vessel axis to scrape the materials adhering to wall and bottom for ideal mixing effects. The equipment is well sealed, can be vacuumized, with excellent exhaust and bubble removal effects. The vessel cover can be hydraulically lifted, and vessel body can move freely for ease of operation.
| MODEL | NOMINAL CAPACITY | VACUUM DEGREE | VESSEL TYPE | DISCHARGE MODE |
| QLF-5L | 5L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-10L | 10L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-20L | 20L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-50L | 50L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-100L | 100L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-200L | 200L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-300L | 300L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-600L | 600L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-1100L | 1100L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-1500L | 1500L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-2000L | 2000L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-3500L | 3500L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
| QLF-4000L | 4000L | -0.098MPa | Electric, steam, oil heating / oil, water cooling jacket | Plug / No neck valve |
Foshan Golden Milky Way Intelligent Equipment Co., Ltd is a state-level, high-tech enterprise specialized in manufacturing mixing and filling equipments used for building sealants, industrial adhesives, organosilicon & high polymer compounds, electronic chemicals, Lithium battery slurry, high polymer composites, paint chemicals and cosmetics etc.
Established in 2002, the company was founded in The Central Science and Technology Industrial Park, Sanshui, Foshan city, with plant area of 20, 000 square meters, building area of 13, 000 square meters and over 200 employees. Golden Milky Company is devoted to technical development and innovation, with many patented technologies, and is the founder of the Foshan Sanshui Engineering Technology Research and Development Center, and has gained TUV Rheinland ISO9001: 2008 certification in 2011.
Our representative products include twin screw automatic sealant production line, static mixer, automatic cartridge filling machine, sausage type automatic filling machine, cartridge/sausage type automatic box packing machine, vacuum kneader, planetary dispersing power mixer, planetary power mixer, dispersing power mixer, hydraulic discharge extruder, automatic vessel cleaner and reaction kettles, etc...
