Guangzhou Tengsheng Audio Equipment Co., Ltd. >> QS-2580 15" Two-Way Full Range Audio Equalizer

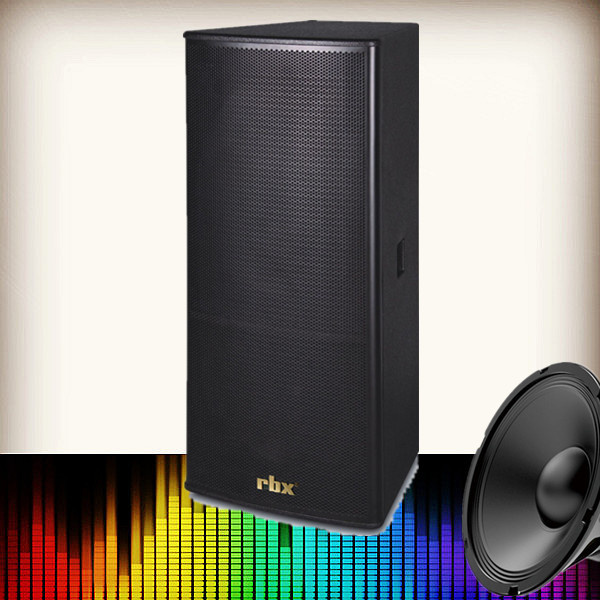

QS-2580 15" Two-Way Full Range Audio Equalizer

Supplier:	Guangzhou Tengsheng Audio Equipment Co., Ltd.
Price:	US $ 350-700/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	QS-2580
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	2-Way Full Range PRO Audio
Crossover:	Asymmetric Internal Passive Crossover
Lf Component:	190mm Magnet with Aluminum Frame
Hf Component:	170mm Magnet
Size Options:	10", 12", 15"
Installing:	Stand
Diaphragm:	Paper
Capacitor:	Solen
Clients' Logo:	Acceptable
Warranty:	3 Years
Hi-Fi:	Not Hi-Fi
Operation Mode:	Wire / Remote Control
Speaker System:	Optional Combination
Speaker Material:	Wood
Application:	Home
Certification:	CCC
Noise:	Nun
Monitor:	Nun
THD:	<0.05%

Product Description

Features:

a. Imported multilayer birch plywood;

b. High-quality durable polyesterimide paint;

c. Deep and strong bass, mellow and full alto, and bright treble.

1. Description:
QS-2580 is a three-way loudspeaker, we apply several sheets of imported multilayer birch plywood. The surface of it is painted with high-quality durable polyester coatings.
QS-2580 is equipped with 2pcs of 15" LF precise driver and a 2" HF precise compression driver. When you use it, you will feel a deep and strong bass, a mellow and full alto, and bright and penetrating treble.

2. Application:
It is ideal for auditorium, conference room, music bar, DISCO bar, small outdoor perform and etc. It can be combined with our sub-woof loudspeaker system.

3. Technical data:

Model	QS-2580 15" three-way full range audio equalizer
Drivers	LF: 2×15"voice-coil: 3"
Drivers	HF: 1×2"voice-coil: 3"
Frequency(±3dB)	45HZ-18KHZ(±3dB)
Dispersion(-6dB)	Hor:90° × Vert:60°
Sensitivity(1m/1W)	99dB
Maximum SPL	129dB Continuous/138dB Peak
Nominal Impedance	4 Ohms
Input power	Rate: 800W/Peak: 3200W
Recommend AMP	600W to 800W into 8 Ohms
Connectors	2 × Speakon NL4MP
Dimensions	1240 × 540 × 540mm (H × W × D)
Master carton	1300 × 600 × 600 (H × W × D)
Net Weight	57.5Kg
Gross Weight	63.5Kg

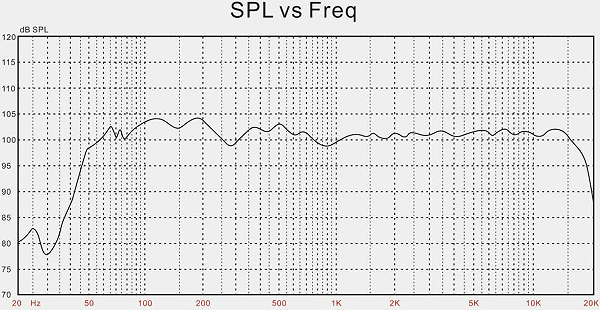

4. Frequency response:

5. Construction:

Physical	Trapezium
Enclosure	Imported multilayer birch plywood
Grille	Die-casting steel net with circular hole, black sponge inside
Paint	Polyester coatings (whose color can be customized.)
Handing Position	/
Pole Mount	/

6. Maintenance:
a. Please kindly operate it according to the user manual (packing with products in cartons), avoid damaging products because of non-standard operation.
b. It should be placed in ventilated environment.
d. Please kindly keep it away from the direct sunlight and heat.
e. Please kindly clean the surface with wet soft cloth regularly. When you don't use it, it's better to put dust cover on it.

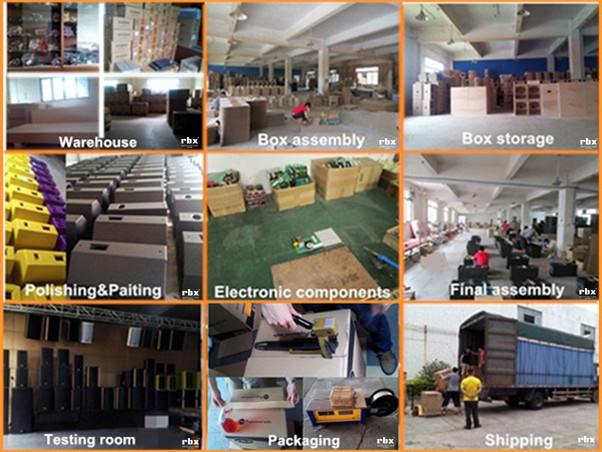

7. Company View:

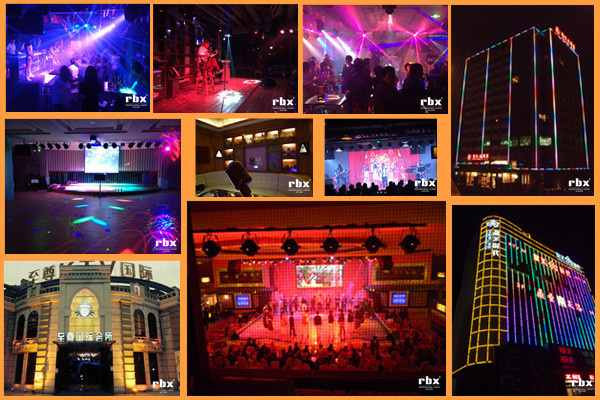

8. Our Projects:

Guangzhou Tengsheng Audio Equipment Co., Ltd. is located in Huashan Town, Baiyun District, Guangzhou City, covers an area of 5, 000 square meters. Our company is closed to GUANGZHOU BAIYUN Airport, the transportation is convenient. We've been devoteing ourselves to the R&D, manufacturing and marketing of high-quality professional audio system.

During the passed years, We've owned a team of highly qualified engineers and sales. We've been always developing new products according to the market trends and the feedback from our clients, which gain much praise and trust. Besides products, we provide audio system solution also. We always take the pursuit of win-win situation between our clients and us.

Our company owns a serial of automated production equipments and quality management system basing on international standards, both of these help us to keep making progress. Excellent quality dates from pursuit of every aspect, and, customer satisfaction comes from sincere service. We'll listen to the voice of the world, and create perfect audio system.
