Wuhan Rayoptek Co., Ltd. >> Qsfp+ Isr4 Fibre Optical Transceiver

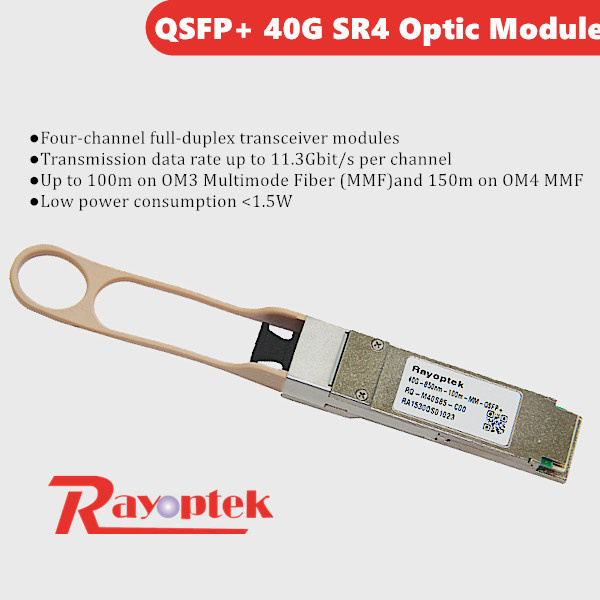

Qsfp+ Isr4 Fibre Optical Transceiver

Name: Qsfp+ Isr4 Fibre Optical Transceiver
Brand: china-manufacturer-directory.com
SKU: 704206712
Availability: InStock
Rating: 4.3 (70 reviews)

Supplier:	Wuhan Rayoptek Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	RT-M40S85-C00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	40GB/S Qsfp+ Isr4
Application:	40g Ethernet
Data Rate:	40g
Distance:	100m
Wavelength:	850nm
Media:	Mmf
Ddm/Dom:	Yes
Transceiver Type:	Qsfp+
Connertor:	MPO
Operating Temperature:	0 to +70 Degree
Type:	Fiber Transceiver
Wiring Devices:	ODF
Condition:	New

Product Description

Specifications
1.Module Form: 40G-QSFP-SR4 Optic Module
2.Date Rate:40G
3.Distance:100m
4.Temperature: 0 to +70 degree
5.Low power consumption <1.5W

Features
Four-channel full-duplex transceiver modules
Transmission data rate up to 11.3Gbit/s per channel
Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
MPO connector receptacle
Built-in digital diagnostic function

Applications
InfiniBand QDR, DDR and SDR
Proprietary High Speed Interconnections
Data Center

P/N	RQ-M40S85-C00
Data rate	40G/ps
Distance	100M
Wavelenth	850nm
Media	MMF
DDM/DOM	YES
Connector	MTP(MPO)
Application	40G Ethernet/ 40G Infiniband
Operating Temperature	0ºC~ +70ºC
Voltage Supply	3.3V
Brand	RayOptek

Why choose RayOptek?
1.RayOptek consist of a group the photonics experts and professional technical engineers domestic and abroad.
2.We focus on the development of 10G/40G/100G high end optic transceiver, and RayOptek are INDEED the design and manufacturer of the high speed optic transceiver with our own product scheme.
3.Assured source of supply ensure us to supply the high quality products.
4.Experienced marketing team will help the customer with the professional product knowledge and market trends.
5.Mature technology in high speed optic transceiver and reasonable price to show the customer our strength and profession.

RayOptek Product Overview

1.40G QSFP+ Transceiver: 40G-QSFP-SR4, 40G-QSFP-LR4, 40G-QSFP-PSM

2. Active Optic Cable: QSFP+ to SFP+ AOC, 40G QSFP+ AOC, 10G SFP+ AOC

3.10G SFP+ Transceiver: SFP+SR, SFP+ LR, SFP+ LTE, SFP+ ER, SFP+ZR, SFP+ BIDI LR

RayOptek Overview

Wuhan RayOptek Co., Ltd. Concentrates on the research, design, production and marketing of high speed optoelectronic integrated device and optical transceivers at the working speed of 10GB/s. 40GB/s and 100GB/s, since the foundation of the company. Relying on the technology accumulation in silicon photonics integration and optoelectronic integrated component, RayOptek constantly focus on the design and development of optical communication transceiver with small size, low power consumption and low cost.

The Strength Of RayOptek

1. R&D Team. RayOptek pay great attention to the research and design, Over 50% margin was devoted into the research. All engineers has been in the area for over 6 years, some of which has been in the area for over 15 years with rich experience.

2. Production: Two Factories, one in Suzhou, one in Wuhan. The factory in Suzhou is mainly responsible for the production of optical components. And the factory in Wuhan is in charge of the completion of all optic modules.

3. Point: Experienced engineer, mature technique, several patents for invention. OEM and ODM services are available.
