Wuhan Rayoptek Co., Ltd. >> Qsfp+ Isr4 with Mpd Fibre Optic Telecommunications

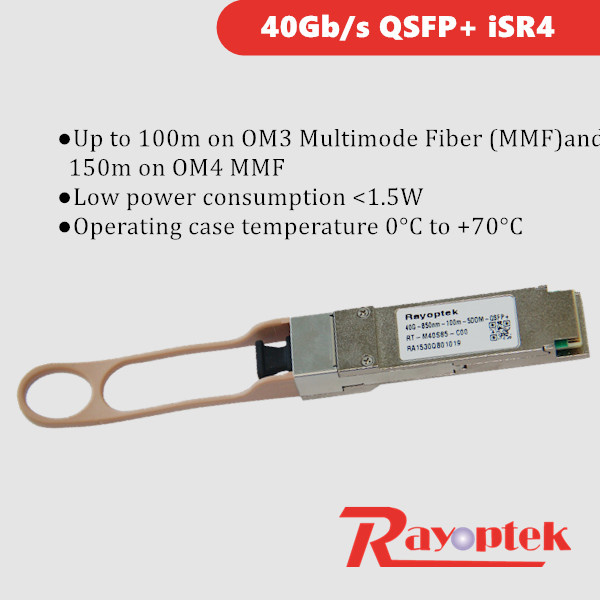

Qsfp+ Isr4 with Mpd Fibre Optic Telecommunications

Name: Qsfp+ Isr4 with Mpd Fibre Optic Telecommunications
Brand: china-manufacturer-directory.com
SKU: 705172872
Availability: InStock
Rating: 4.6 (70 reviews)

Supplier:	Wuhan Rayoptek Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	RQ-M40S85-C00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	40gbase Qsfp Sr Transceiver
Application:	40g Ethernet
Data Rate:	40g
Distance:	100m
Wavelength:	850nm
Media:	Mmf
Ddm/Dom:	Yes
Transceiver Type:	Qsfp+
Connertor:	MPO
Operating Temperature:	0 to +70 Degree
Type:	Fiber Transceiver
Wiring Devices:	ODF
Condition:	New

Product Description

Specifications
· 40Gb/s QSFP+ iSR4 5DDM 4 Channel Transceiver
· Condition: New Original
· Manufacturer: RayOptek
· OEM and ODM,Buyer Label Offered
· RoHS Compliant

Features
Four-channel full-duplex transceiver modules
Transmission data rate up to 11.3Gbit/s per channel
Up to 100m on OM3 Multimode Fiber (MMF)and 150m on OM4 MMF
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
MPO connector receptacle
Built-in digital diagnostic function

Applications
InfiniBandQDR, DDR and SDR
Proprietary High Speed Interconnections
Datacenter

Description
The Rayoptek RT-M40S85C-00 is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand FDR/QDR/DDR/SDR,12G/10G/8G/4G/2G fiber channel, PCIe and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 11.3Gbps operation for an aggregate data rate of 45.2Gbps 100m using OM3 fiber. These modules are designed to operate over multimode fiber systems using 850nmVCSEL laser array.An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ iSR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.

Part No	Data Transfer Rate	Max Distance	Wavelength
RT-M40S85-C00	40G	100m	850nm
Form Factor	Fiber Type	Connector	DDM
Multi Mode QSFP+	Multi mode fiber (MMF)	MTP(MPO)	With 5DDM
Device Type	Warranty	Interface Type	Operating Temperature
Transceiver module	1 ~ 3 Years	Plug-in module	0 ~ 70 °C

RayOptek Product Overview

1.40G QSFP+ Transceiver: 40G-QSFP-SR4, 40G-QSFP-LR4, 40G-QSFP-PSM

2. Active Optic Cable: QSFP+ to SFP+ AOC, 40G QSFP+ AOC, 10G SFP+ AOC

3.10G SFP+ Transceiver: SFP+SR, SFP+ LR, SFP+ LTE, SFP+ ER, SFP+ZR, SFP+ BIDI LR

RayOptek Overview

Wuhan RayOptek Co., Ltd. Concentrates on the research, design, production and marketing of high speed optoelectronic integrated device and optical transceivers at the working speed of 10GB/s. 40GB/s and 100GB/s, since the foundation of the company. Relying on the technology accumulation in silicon photonics integration and optoelectronic integrated component, RayOptek constantly focus on the design and development of optical communication transceiver with small size, low power consumption and low cost.

The Strength Of RayOptek

1. R&D Team. RayOptek pay great attention to the research and design, Over 50% margin was devoted into the research. All engineers has been in the area for over 6 years, some of which has been in the area for over 15 years with rich experience.

2. Production: Two Factories, one in Suzhou, one in Wuhan. The factory in Suzhou is mainly responsible for the production of optical components. And the factory in Wuhan is in charge of the completion of all optic modules.

3. Point: Experienced engineer, mature technique, several patents for invention. OEM and ODM services are available.
