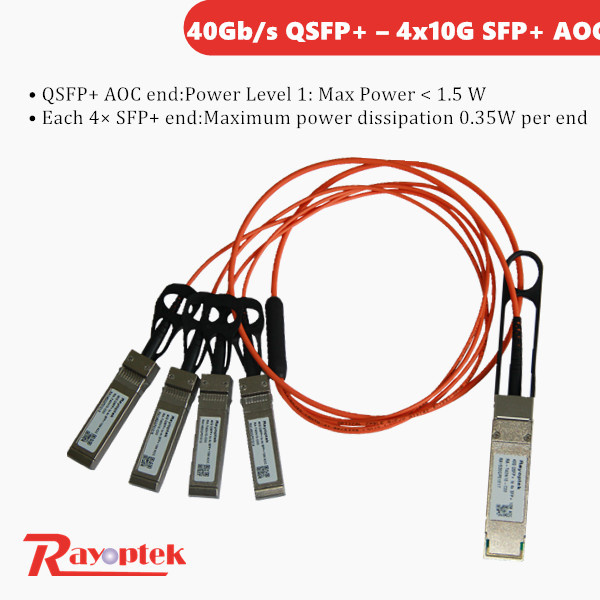

Qsfp+ to 4 SFP+ Aoc Fibre Optic Telecommunications

Name: Qsfp+ to 4 SFP+ Aoc Fibre Optic Telecommunications
Brand: china-manufacturer-directory.com
SKU: 705174622
Availability: InStock
Rating: 4.3 (135 reviews)

Supplier:	Wuhan Rayoptek Co., Ltd.
Price:	US $ 1/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	RA-T40NXX-C00
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	Qsfp+ to 4X SFP+ Cable
Application:	Data Center
Data Rate:	40g/10g
Distance:	1-300m
Fiber Type:	Optic Cable
Media:	Om3
Length:	1m 2m 3m 4m 5m or Customizted
Transceiver Type:	Qsfp+/SFP+
Connector:	Aoc
Operating Temperature:	0 to +70 Degree
Type:	Fiber Transceiver
Wiring Devices:	ODF
Condition:	New

Product Description

Features
QSFP+ AOC end:
? Compliant to the 40GBASE-SR4 and XLPPI
Specification per IEEE 802.3ba-2010 and supporting
40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
? Compliant to the industry standard SFF-8436
QSFP+ Specification
? Power Level 1: Max Power < 1.5 W
? Operate at 10.3125 Gbps per channel with 64b/66b
encoded data for 40GbE application and at 10 Gbps
with 8b/10b compatible encoded data for 40G-IB-QDR application

Each 4× SFP+ end:
? Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
? Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor "IPF"
? Maximum power dissipation 0.35W per end.

Active Optical Cable Assembly:
? 0 to 70 C degree case temperature operating range
? Proven High Reliability 850 nm technology: Rayoptek VCSEL transmitter and Rayoptek PIN receiver
? Hot pluggable for ease of servicing and installation
? Two Wire Serial interface
? Utilizes optical fiber for high density and thin, lightweight cable management

Applications
? 40GbE and 10GbE break-out applications for Datacom switch and router connections
? 40G to 4×10G density applications for Datacom and Proprietary protocol applications
? Datacenter

Order Information

Part Number	Product Description
RA-T40NXXC-00	40Gb/s QSFP+ - 4x10G SFP+ Active Optical Cable

RayOptek Product Overview

1.40G QSFP+ Transceiver: 40G-QSFP-SR4, 40G-QSFP-LR4, 40G-QSFP-PSM

2. Active Optic Cable: QSFP+ to SFP+ AOC, 40G QSFP+ AOC, 10G SFP+ AOC

3.10G SFP+ Transceiver: SFP+SR, SFP+ LR, SFP+ LTE, SFP+ ER, SFP+ZR, SFP+ BIDI LR

RayOptek Overview

Wuhan RayOptek Co., Ltd. Concentrates on the research, design, production and marketing of high speed optoelectronic integrated device and optical transceivers at the working speed of 10GB/s. 40GB/s and 100GB/s, since the foundation of the company. Relying on the technology accumulation in silicon photonics integration and optoelectronic integrated component, RayOptek constantly focus on the design and development of optical communication transceiver with small size, low power consumption and low cost.

The Strength Of RayOptek

1. R&D Team. RayOptek pay great attention to the research and design, Over 50% margin was devoted into the research. All engineers has been in the area for over 6 years, some of which has been in the area for over 15 years with rich experience.

2. Production: Two Factories, one in Suzhou, one in Wuhan. The factory in Suzhou is mainly responsible for the production of optical components. And the factory in Wuhan is in charge of the completion of all optic modules.

3. Point: Experienced engineer, mature technique, several patents for invention. OEM and ODM services are available.
