Product Specifications
| Prod Model: |
QT12-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Method: |
Hydraulic Pressure |
| Processing: |
Brick Production Line |
| Product: |
Brick |
| Brick Raw Material: |
Concrete |
| Automation: |
Automatic |
| Tolerance: |
0.5mm |
| Condition: |
New |
| Brick: |
Hollow/ Solid/ Paver/Curbstone/Overlock |
| Molding Way: |
Hydraulic Pressure |
| Automatic: |
Full Automatic |
| Certification: |
ISO9001: 2000, RoHS, ISO 9001:2000, ISO 9001:2008 |
| Type: |
Concrete Iron Molding Machinery |
Product Description
QT10-15 Automatic Concrete Block Machine :
Advantages :
1. It adopt to the domestic technology of vibration of vibration table, it get a strong vibration with a little power.
2. It combines lower below vertical vibration and top die vibration, as a result, it can produce block more quickly and the compactness and intensity of block is great
3. Reasonable design with easy operation release human and get a high efficiency
4. It produces various blocks with different molds
Details For Qt10 Block Machine:
1.Using Germany Siemens PLC control system and Siemens Touch Screen, it is easily operated and has the low failure rate. It has the trouble diagnosis and warning ,easily finds the problem and guarantee the regular work .The safety logic control system has the self-locking function , avoiding the wrong operation of machine .It also can realize the remote control by the phone to solve the problems.
2.Using double high-dynamic Proportional to automatically adjust the oil flow and pressure .So it can raise the stability and improve the using lifetime.
3.360°Multi- Shaft rotating and compulsory feeding, the cart can guarantee the fast speeding .This uniform feeding is applicable for different kinds of raw materials and moulds .
4.Use heat treatment on moulds and main parts of the machines. It has the heavy duty machine structure and wear resistant .So the using lifetime of the machine will be 50% longer than the common.
Application
Concrete block, solid/hollow/cellular masonry productions, paving stones with or without face mix , garden and landscaping productions, slabs, edger, curbstones ,grass block ,slope blocks ,interlocks, etc.
Raw Materials:
Crushed stone, sand, cement, lime, fly ash, cinder, slag, gangue, gravel, perlite and other industrial wastes.
(For reference )The ratio for the raw material:
1.8%-10% cement, 30%-40% sand, 50%-60% stone(less than 15mm)/
2.8% cement, 60% sand, Fly ash 30%, 2% gypsum.
Technical Specifications:
| Cycle Time | 15-20S | Vibration Force | 100KN |
| Total Power | 44KW | Machine Size | 9350*2320*2950mm |
| Motor Frequency | 50HZ | Total Weight | 15T |
| Pallet Size | 1250 x 850 x (8-35)mm | Vibration force | 100KN |
Theoretical production capacity:
| Block Specification(mm) | Production per Hour(pcs) | Production per Mould(pcs) |
| 390 x 190 x 190 | 1440 - 1920 | 10 (pcs) |
| 240 x 115 x 53 | 11011 - 14480 | 54 (pcs) |
| 240 x 115 x 90 | 5040 - 6720 | 27 (pcs) |
Main Machinery List of QT12-15 construction Block machinery:
| No | Name | Specification | QTY |
| 1 | 100 Ton Cement Silo | Capacity | 100tons | 1 |
| Diameter Of Tank | 3 m |
| Thickness Of Tank | 5mm |
| Discharge Height | 1.5m |
| Total Height | 15 m |
| 2 | LSY Screw Conveyor φ219×8m | Model No | LSY200 | 1 |
| Diameter (Mm) | 219 mm |
| Wall Thickness(Mm) | 8mm |
| Handling Capacity (M3/H) | 35m3/h |
| Power (Kw) | 7.5 kw |
| 3 | Cement Scale with water scale | Volume Of Weighing Hopper | 0.4m3 | 1 |
| Batching Precision | ±1% |
| Max. Metage Of Powder Material | 500kg |
| Max. Metage Of Water Scale | 180kg |
| 4 | PL1200-III Concrete Batching Machine | Cubage Of Weighing Hopper | 1.2 m³ | 1 |
| Cubage Of Reserve Hopper | 3×4 m³ |
| Productivity | 72 m³/h |
| Max. Metage | 2000 kg |
| Batching Category | 3 |
| Dimension(L×W×H)Mm | 8650×2000×2900 |
| 5 | JS750Twin-shaft Concrerte Mixer | Input Capacity | 800L | 1 |
| Output Capacity | 500L |
| Productivity | ≥25m3/h |
| Max. Raw Diameter Material | 80/60 mm |
| Mixing Vane Rotation Speed | 30.5r/min |
| Mixing Vane Quantity | 2×7 |
| Dimension ((L×W×H)Mm | 3050×2300×2680 |
| Mixer Motor Power | 18.5kW |
| Discharge Height | 1500mm |
| Weight | 4000kg |
| 6 | QT'10-15 Block Making Machine | Block Making Machine | QT10-15 | 1 |
| Hydraulic Unit | QT10-15 | 1 |
| Conveyor Belt | 8m | 1 |
| Pallets Feeder | 1 piece | 1 |
| Block Conveyor | 1 piece | 1 |
| PLC Control Unit | QT10-15 | 1 |
| Spare Parts | QT10-15 | 1 |
| Mould | 6/8pc | 1 |
| 7 | Automatic Blocks Stacker | Weight | 1500KG | 1 |
| Power | 7.5KW |
| Manual Hydraulic Cart | 2000KG |
Our factory profile:

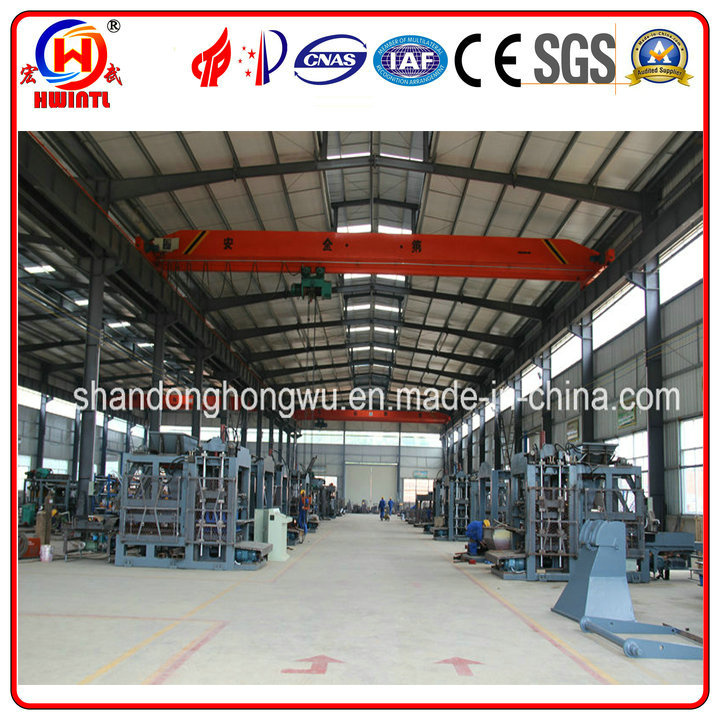

Our factory Shandong HF block machinery mainly produces all kinds of block machines, concrete mixing plants, tile making machines and presses etc for 20 years . All the construction and building material equipment manufactured by our enterprise are conformity with the standards of the state, and gets the ISO9001-2000 Quality System Certificate, especially block machines and tile making machines QT12-15, QT10-15, QT9-15, QT8-15, QT6-15, QT4-15, QTY4-20, QT 4-25 models.
Our block machines have been supplying to customers all over China and more than 50countries around Vietnam, D. P. R Korea, Russia, Mongolia, Bangladesh, Guinea and Nepal, and deeply trusted by all the customers.
The competition is intense on market and our company is improving our control of management so that our product quality and our service are better and better. We are working our unit be a modern manufacturer, and our management, quality, benefit, service and credit would be the first-class.
Our Service:
We can give one year warranty time for free service , in the period , we can send our engineer to customers place for installaion and training . For any help in the machine whole using life , you can feel free to contact with our after sale deparment for 24 hours .
1.Delivery time:within 22-30 days after receipt of the deposit
2.payment:30% advance payment by T/T, the balance payment by T/T or L/C.
3.Warranty: 1 year.
4.Spare parts: 1 set of the spare parts and 1set of the tools.
5.We will supply the design layout; we will dispatch the engineer to your side for the installing machine, training your workers. and the buyer only pay for the airtickets, the foods and the hotel for our engineer .
