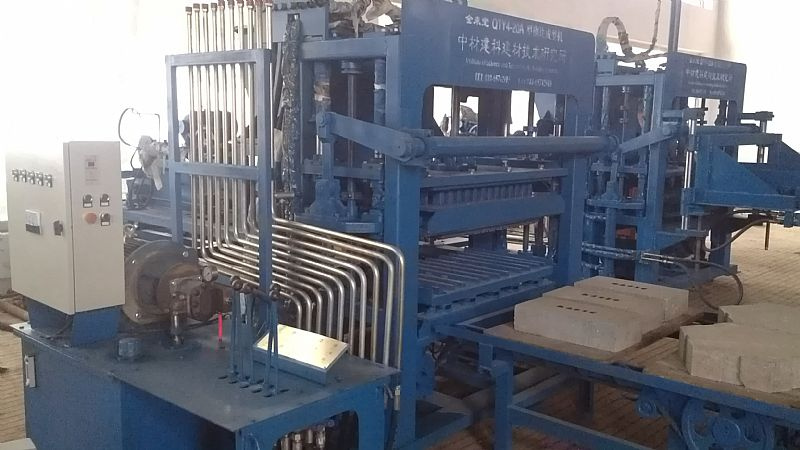

Qty4-20A Cement Hollow Block Machine for Sale in Africa
Product Specifications
| Prod Model: |
QTY4-20A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Condition: |
New |
| Machining Process: |
Hydraulic |
| Shift Output: |
41600pieces(Standard Brick) |
| Cycle Time: |
20s |
| Power: |
24.95kw |
| Weight: |
4.5t |
| Dimensions: |
3000*2200*2900mm |
| Pallet Size: |
1020*550*20mm |
| Certification: |
ISO9001: 2000 |
Product Description
Structure:
It is solid and durable for its four guiding columns and patent lengthening sleeve guide.
The forced mold synchronous structure gives the products perfect shape and high strength. And the stable demolding process ensures the output of more finished products.
The machine frame is welded by special thick steel rectangle welding techniques, thus it is strong, durable and can resist vibration. We use the steel produced by famous steel manufactures Shougang Group. The service life of main machine is more than 10 years.
There is electric motor and belt in brick conveyor machine, it can convey the pallets when the bricks come out, it prevent collisions between pallets and avoid the break of bricks. It is more automatically and more durable.
The connecting rod of material feeder use the whole steel casting, which is stronger and more durable.
The material feeding system uses broken arch structure, when feeding materials, kick fork swings back and forth quickly to feed materials evenly, and fill the mold with materials in every corner. It can ensure the high rate of finished products, and the strength of bricks is higher.
Circulatingwater colling system. The cooler is customized specially, the water pipe inside are all copper pipe, it have very good cooling effect. So the machine can ensure the temperature of hydraulic oil not very high and the machine can work for a long time. So the machine can produce normally in hot weather in Africa.
| Production capacity | Standard brick 240*115*53mm 26pcs/mould
Hollow brick 2 40*115*90mm 4pcs/mould
Paver brick 390*190*190mm 045m² pcs/mould
|
| One hour output | Standard brick 240*115*53mm 5200pcs/per hour
Hollow brick 240*115*90mm 800pcs/per hour
Paver brick 390*190*190mm 90m² pcs/per hour
|
| Shift output | Standard brick 240*115*53mm 41600pcs/8 hours
Hollow brick 240*115*90mm 6400pcs/8 hours
Paver brick 390*190*190mm 720m² pcs/8 hours
|
| Cycle time | 18-25s
|
| Power | 18.45kw
|
| Weight | 4.5T
|
| Vibrating force | 68KN
|
| Dimensions | 6600*3300*2750mm
|
| Plate size | 1020*550*20mm
|
Introduction:
Beijing Zhongcai Jianke Institute of Science and Technology for Building Materials is located in Guangzhuang, Dongli, Chaoyang District of Beijing which is the birth place for building materials. It is specializing in the manufacture and export of block making machine and roof tile machine and other construction equipments.
Quality is the core of our company. Advanced inspection equipments and stringent quality control tests make us through ISO9001 certification, and also we have passed the tests of National Building Materials and Mechanical Products Testing Center. Service is the guarantee of company life. Providing the customers with first-class service is our long-term and unchangeable ideas. Our products have been exported to Asia, South America, Africa, Middle East, Russia and so on.
It is our unceasing pursuit to commit ourselves to research and develop high-quality, environmental protection and new type building materials
1. Our head office is in Beijing
2. Our machines had been exported to 92 countries
3. Our product has passed CE, ISO9001, BV, SGS, CTC cetification
4. We have 2 Factories in China, one is in Beijing, the other one is in Wuhan China
5. We have 12 different models, Small, medium and large investment from USD1, 600 ----- USD350, 000.
6. We are an institute belong to China Building Material Academy, here is the most authoritative China Building Materias Inspection and China Construction Machinery Inspection And Certification Center.
7. We have after-sales departent in Asia, America, South America, Africa.
8. Engineers will come to you to install the machine and train workers for you.
