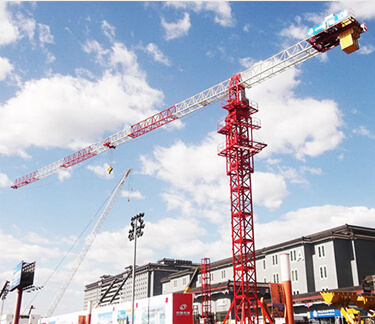

Qtz100 (PT5613) Tower Crane Construction Machinery with CE and ISO9001: 2008
| Price: |
US $ 100000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Product Specifications
| Prod Model: |
PT5613 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
PT5613 |
| Free Standing Height: |
45m |
| Max Height: |
150m |
| Max Load: |
8t |
| Tip Load: |
1.3t |
| Jib Length: |
56m |
| Power: |
220V 50Hz |
| Mast Section: |
1.835X1.835X2.5m |
| Material: |
135X 135X12 Q345b Angle Steel |
| Color: |
Yellow Red |
| Type: |
Tower Crane |
| Application: |
Construction Usage |
| Power Source: |
Hydraulic |
| Sling Type: |
Wire Rope |
| Certification: |
CE |
| Condition: |
New |
Product Description
QTZ100(5613)
1. max. lifting capacity(t)8t
2. max. operating range(m)56m
3. max. lifting capacity at jib tip (t)1.3T
4. basic height (m)45 m
5. max. height (m)150m
6. dimension of section (m)1.835×1.835×2.5
7. material of mast section ∠135×135×12/Q345B
56m working range
| 2-falls |
| Range m | 3~23.75 | 24 | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 |
| Lifting capacity | 4000 | 3951 | 3766 | 3596 | 3438 | 3291 | 3154 | 3027 | 2907 | 2796 | 2691 | 2592 | 2498 |
| Range m | 36 | 37 | 38 | 39 | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 |
| Lifting capacity | 2410 | 2327 | 2248 | 2173 | 2102 | 2035 | 1970 | 1909 | 1850 | 1794 | 1740 | 1689 | 1640 |
| Range m | 49 | 50 | 51 | 52 | 53 | 54 | 55 | 56 |
|
|
|
|
|
| Lifting capacity | 1593 | 1547 | 1504 | 1462 | 1422 | 1383 | 1346 | 1310 |
|
|
|
|
|
| 4-falls |
| Range m | 3~12.5 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 21 | 22 | 23 | 24 |
| Lifting capacity | 8000 | 7664 | 7063 | 6542 | 6087 | 5685 | 5328 | 5008 | 4721 | 4460 | 4224 | 4008 | 3810 |
| Range m | 25 | 26 | 27 | 28 | 29 | 30 | 31 | 32 | 33 | 34 | 35 | 36 | 37 |
| Lifting capacity | 3627 | 3459 | 3304 | 3159 | 3024 | 2899 | 2781 | 2671 | 2567 | 2470 | 2378 | 2291 | 2209 |
| Range m | 38 | 39 | 40 | 41 | 42 | 43 | 44 | 45 | 46 | 47 | 48 | 49 | 50 |
| Lifting capacity | 2132 | 2058 | 1988 | 1921 | 1858 | 1797 | 1739 | 1684 | 1631 | 1581 | 1532 | 1486 | 1441 |
| Range m | 51 | 52 | 53 | 54 | 55 | 56 |
|
|
|
|
|
|
|
| Lifting capacity | 1398 | 1357 | 1317 | 1279 | 1242 | 1207 |
|
|
|
|
|
|
|
| mechanical load | hoisting mechanism | M5 |
| slewing mechanism | M4 |
| ranging mechanism | M4 |
| hoisting mechanism | motor | type | YZRDW250M1-4/8 |
| power (kW) | 30/30 |
| limiter of height | type | FKDX-G |
| steel line | type | 6X37-15-1770-I |
| Max. drawing force (N) | 20000 |
| magnifications | a=2 | a=4 |
| hoisting speed (m/min) | 80.36 | 41.05 | 39.37 | 20.11 |
| rated lifting capacity (t) | 2 | 4 | 4 | 8 |
| Min. descending speed levelly | m/min | ≤7 |
| slewing mechanism | motor | type | YZR132M2-6 |
| power (kW) | 3.7×2 |
| speed (r/min) | 908 |
| reducer | type | XX4-100.180 |
| ratio | 180 |
| hydraulic couplings | type | YOX280A |
| slewing pinions | modulus m | 12 |
| teeth z | 16 |
| coefficient | +0.5 |
| slewing speed | r/min | 0.64 |
slewing bearing
| ball like slewing ring of four point in a ling | type | 011·45·1400 |
| modulus m | 12 |
| teeth z | 131 |
| hydraulic hoisting mechanism | motor | type | Y132M-4B5 |
| power (kW) | 5.5 |
| rated operating press | M pa | 25 |
| max. hoisting force | t | 50 |
| troke of oil tank | mm | 1600 |
| space | mm | 2070 |
| diameter of oil tank | mm | φ160 |
| oil tank piston diameter | mm | φ110 |
| hoisting speed | m/min | 0.4 |
| ranging mechanism | motor | type | YDEJ132S-4/8 |
| power (kW) | 4.5/3 |
| steel line | type | 6×19-7.7-1550- |
| reducer | type | BL22-43-3.3 |
| ratio | 43 |
| ranging speed | m/min | 44/22 |
