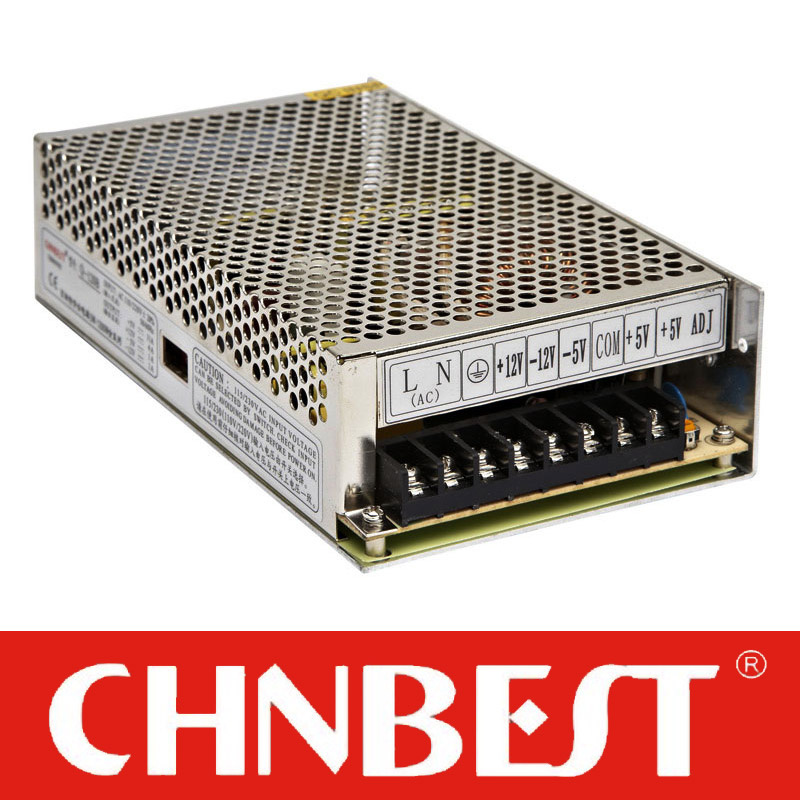

Quad Output Switching Power Supply (Q-120B)

Name: Quad Output Switching Power Supply (Q-120B)
Brand: China-Manufacturer-Directory.com
SKU: 646688185
Availability: InStock
Rating: 4.9 (52 reviews)

Supplier:	Zhejiang Best Electric Co., Ltd.
Price:	US $ 17-20/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Q-120B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Quad
Output Power:	101 - 200W
Input Voltage:	110-220V
Voltage Regulating Mode:	Frequency Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	>2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	ISO

Product Description

100% full load burn-in test
AC input: 110/220VAC± 20%, selectable by switch
Protections: Short circuit/Overload
Low cost, high reliability
Size: 199*110*50mm
1 year warranty

Model

Specification

Q-120B

Q-120C

Q-120D

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

DC output

5V,
11A

12V,
4A

5V,
1A

-12V,
1A

5V,
10A

15V,
3.5A

-5V,
1A

-15V,
1A

5V,
8A

12V,
2A

24V,
2A

-12V,
1A

Wave and noise

80mV

120mV

80mV

120mV

80mV

150mV

80mV

150mV

80mV

120mV

180mV

120mV

Inlet stability

± 0.5%

± 1%

± 0.5%

± 1%

± 0.5%

± 1%

Load stability

± 0.5%

± 5%

± 0.5%

± 6%

± 5%

± 0.5%

± 5%

Efficiency

77%

76%

80%

Adjustable range for DC voltage

CH1: +10, -5%

AC input voltage range

85-132VAC/170-264VAC Selected by switch 47-63Hz, 240-370VDC

AC input voltage range

Cold-start current 35A/230V

OverLoad protection

105%-135% hiccup mode, auto-recovery

OverLoad protection

CH1.5.75V-6.75V

Setup, rise, hold up time

200ms, 50ms, 20ms

Withstand voltage

I/P-O/P: 3KvAC I/P-FG: 1.5KvAC O/P-FG: 0.5Kv 1minute

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG: 500VDC/100MΩ

Working temperature

-10_ +50

Safety standards

Design refer to GB4943, UL60950, EN60950

EMC standards

Design refer to GB9254, EN55022 class A

Weight

0.88Kgs

Zhejiang Best Electric Co., Ltd. Founded in 2000. Our factory is located in Wenzhou Zhejiang.

With over 16 years of experience in design and manufacture of switching power supplies, we have established long-term relationship with hundreds of big customers in the field of industrial control, telecom, LED, display & lighting of buildings, elevator, laser equipment, TV & broadcasting, computer system, medical equipment, safety control, automotive system, banking equipment

The products include Single output series, Waterproof Series, Rainproof Series, DIN-Rail Series, With PFC Function Series, With Battery Charger Series, DC to DC series, Open Frame Series, Dual Output Series, Triple Output series, Quad Output Series, and custom-design switching power supplies, over 5, 000 models showing great flexibility.

The company is certified by SGS. Over 100 models power supply have acquired CE, RoHS approval, and more are underway. We have various advanced equipment, such as wave soldering and reflow soldering machine, AI component insertion machine, auto chip mounter, ATE, ICT, RoHS testing, environmental testing, EMC testing system, burn-in test room, data acquisition Only top brand international components are adopted for the key parts to ensure long lifetime and high reliability. Each unit is given full load burn-in test. With high quality and market reputation,

We were honored to become main SMPS supplier for Beijing Olympic Games, and Shanghai Expo 2010.

We are confident to offer you total power solutions and become our trustworthy power partner.
