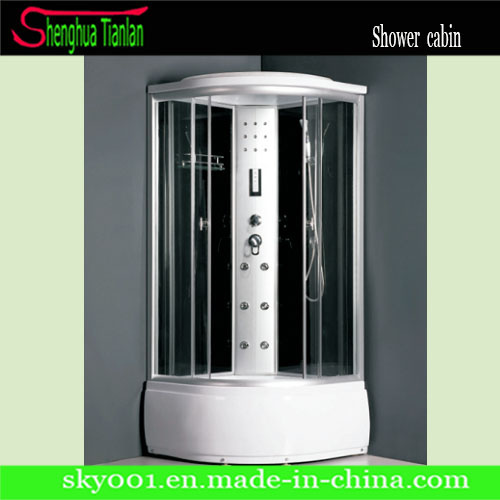

Quadrant Modular Computerized Steam Shower Room (TL-8817)

Name: Quadrant Modular Computerized Steam Shower Room (TL-8817)
Brand: China-Manufacturer-Directory.com
SKU: 716588155
Availability: InStock
Rating: 4.8 (108 reviews)

Supplier:	Hangzhou Tianlan Glass Co., Ltd.
Price:	US $ 125-255/Piece
Min Order:	5/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	(TL-8817)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Computer Control Panel:	Computer Control Panel
Tray Shape:	Round
Open Style:	Sliding
Person:	Single
Tray Material:	ABS
Glass Thickness:	5mm
Shower Mode:	Combination Shower
Frame Material:	Aluminium Alloy
Function:	Multi-functional

Product Description

Quadrant Modular computerized Steam Shower Room:
Dimension: 900*900*2150(1000*1000*2150mm(Length X Width X Height)

Features:

1),Steam generator with time and temperature settings;

2),Whirlpool bath, air bubble and steam shower combo;

3),Computer control panel and remote control;

4),Electricity leakage protection device;

5), FM radio and loudspeaker;

6), Elegantly designed ceiling light;

7), Circulation fan, music & phone connection;

8), Ozone generator and aromatherapy;

9), Monsoon top shower and hand held shower on a sliding bar;

10), Useful glass storage shelf;

11), Pre-fitted with a thermostatic shower valve and 2X3 adjustable jets;

12), 4-switch chrome diverter-whirpool bath inlet, top shower, hand shower or body jet.

Material specification:

1), Fiberglass reinforced ABS tray complete with drainer;

2), Metal or stainless steel frame support under the tray;

3), Waterproof strip around glass to prevent water leakge;

4), Magnetic seal system to create a close fitting door;

5), Satin finish strengthened aluminum alloy profile;

6), 5mm thickness tempered safety blue glass.

Electrical standard:

1), Electric voltage: 110/220V, frequency: 50/60Hz, steam generator: 3000W, whirlpool pump: 1HP.

2), Overheat protection: The steam generator will be shut down automatically if the temperature of the box gets too hot.

3), No water protection: If there is no water in steam generator, it will shut down immediately.

Bathroom plumbing:

1), Hot and cold water supply required.

2), Balanced water pressure of 1-4 bar required.

3), Gravity fed system may require a pump to meet pressure requirement.

Loading Capacity:

1), Packing volume: 0.80CBM

2), Loading capacity in 20ft container: 35sets

3), Loading capacity in 40hq container: 85 sets

4), Transportation: By sea

5), Delivery detail: About 25 days

6), Warranty time: 2years

Hot selling in USA UK India Italy South Africa Turkey Etc....!!

More detailed as bellow:

Modular NO.	TL-8817
Dimension	138013802150mm ;or545485in. (L ength x Width x Height)
Feature	A) Material:
	1)Tub and Roof ABS composite board with 100% resin and five layers fibreglass reinforced under shower tray
	2)Glass 5mm tempered glass
	3)Frame satin finish aluminium alloy;
	B) Structure:
	1) Steam generator with time and temperature settings;
	2) Computer control panel and remote control;
	3) FM radio and loudspeaker,elegant ceiling light;
	4) Circulation fan & phone receiver;
	5) Ozone generator and aromatherapy;
	6) Foot massage and hydromassage body jets;
	7) Monsoon top shower and sliding handle shower;
	8) Moulded seat and built-in shelf;
	9) 4-switch chrome diverter-top shower, hand shower, body jets or foot massage;
	10)Power of steam generator: 3000W;
Optional function:	1). Mat glass, blue tempered glass, transparent tempered glass, painted tempered glass
	2). Steam bath
	3). Ozone disinfection
	4)air pump, touch screen or LCD TV and thermostatic faucet .
Certificate:	ISO9001,CE UL ROHS
Others	1)The water proof around the shower room to prevent from the water leakage2) anti-slipping bottom
Package	Inner packing: Bubble bag. Outer packing: Carton box
Volume	0.80 CBM, Catron box:4 pcs
ElectricalSpecifications:	Voltage Range : 110V~220VFrequency : 50HZ~60HZ
Loading	35Sets/20'GP, 85Sets/40HQ.
Others	OEM service and mixed models is available,We can modify our products as your requirements
