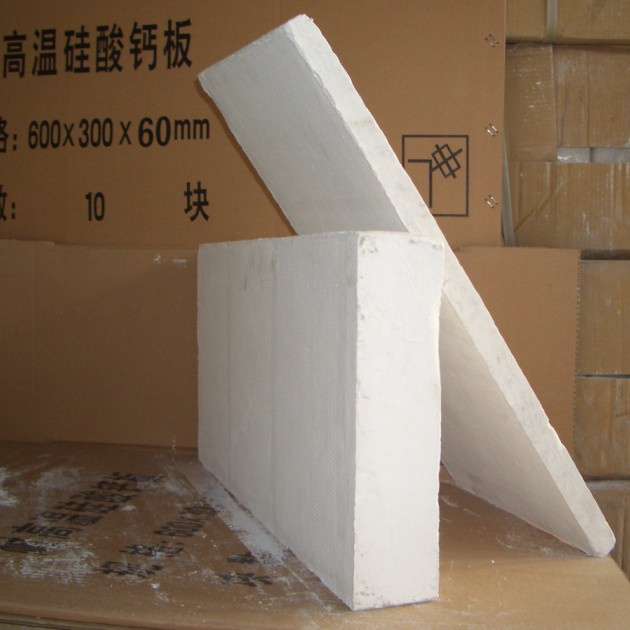

Qualified Free Asbestos Calcium Silicate Insulation Board with 1050 working temp.
1. Model No.: JD-CSB-1050
2. Bulk density: 220-290kg/m3
3. Features:
1). Excellet thermal insulating features
2). Strong machinability and handling characteristics
3). Low thermal conductivity
4). Echo-friendly, non-asbestos
5). Equal to the quality made in US, Europe
4. Normal production size: 600*300*50-115mm
400*300*25-40mm
5. Working temperature: 1050º C, 650º C
|
Calcium silicate board |
Density |
Rupture strength |
Compressive strength |
Linear shrinkage |
Thermal conductivity |
Working temperature |
|
220-290kg/m3 |
0.3 MPa |
0.6 MPa |
2.0% |
0.062w/mk |
650ºC |
|
Size (mm) |
1000*500*(25-100), 600*300*(25-150), 400*250*(25-115) |
|
Calcium silicate board |
Density |
Rupture strength |
Compressive strength |
Linear shrinkage |
Thermal conductivity |
Working temperature |
|
220-290kg/m3 |
0.5 MPa |
0.9 MPa |
1.5% |
0.056w/mk |
1050ºC |
|
Size (mm) |
1000*500*(25-100), 600*300*(25-150), 400*250*(25-115) |
Zhengzhou Shengshi Jinding Insulation Refractory Co., Ltd. is located in 30km between Zhengzhou and Shaolin Temple. It was built in 1982, which is syntaxic company with a mix of production, distribution and construction. It is a recommended institition by the industry of national electricity, metallurgy, cement, petroleum, chemicals which need to use heat insulator, it is also the Genesis Pits of Chinese tignum research institution and Tianjin Chemical research institution.
Our company is near to an intersection of Longhai Railway, Jingguang Railway, 107 National Rd, which provides convenient traffic. The plant covers an area of having modern production equipment and perfect test facility, such as 2 sets reactor of 30m3, 4 sets hydrostatic of 100mt, 3 items tunnel drying kiln of 60m and so on. Relying on steam-gas from power plant the qulity is superor and stable. The output of Non-asbestos calcium sillicate insulation material can reach 15000 m3 per year.
Morecver, there is a item production line for sealing material of 1500mt, 2 items acentric glass wool goods production line, 1 item asbestos goods production line of 2500mt with a experienced team in charge of the preservation and insulation. In the end, we are one of the largest enterprises of calcium silicate field, also are large enterprise in producing insulation in Henan province.
