Qualified Passenger Elevator
| Price: |
US $ 11000-16000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Specifications
| Prod Model: |
KJX-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Gearless Passenger Elevator |
| Certification: |
ISO,SGS |
| Warranty: |
18 Months After Shipment Date |
| Driving Type: |
AC Elevator |
| Capacity: |
500-1000kg |
| Persons: |
6 - 10 |
| Speed: |
1.00 - 2.00m/s |
Product Description

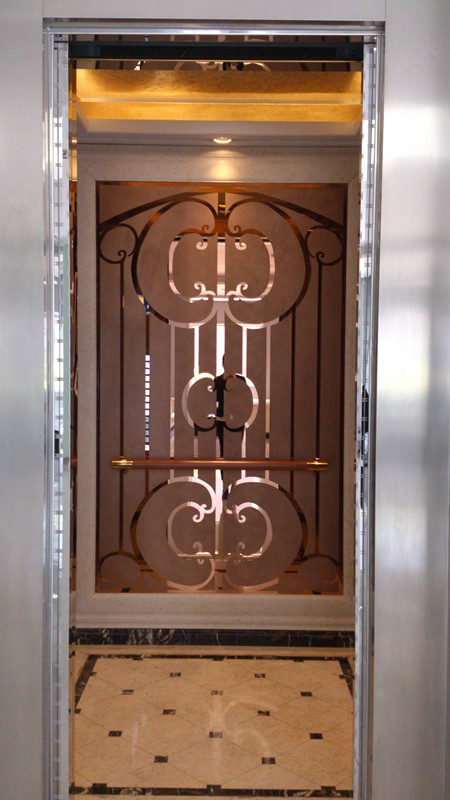

This passenger elevator has an exact and effective control system by using the most advanced electronic technology. In additon to this, KUIKO elevator adopt the latest environment-friendly technonoly in manufacturing, as well as safety device and signal device. 1. Product Description:
Ceiling: KDD-01 hairline finished stainless steel, Acrylic
Control Box: KCZ-01(standard:304 hairline stainless steel; lattice core and red light) Option: Mirror st.st; Ti-gold stainless steel; LCD display.
Cabin Wall: Hairline stainless steel
Arm rest: Back wall one handrail, type KFS-01
Floor: PVC, type KDB-01

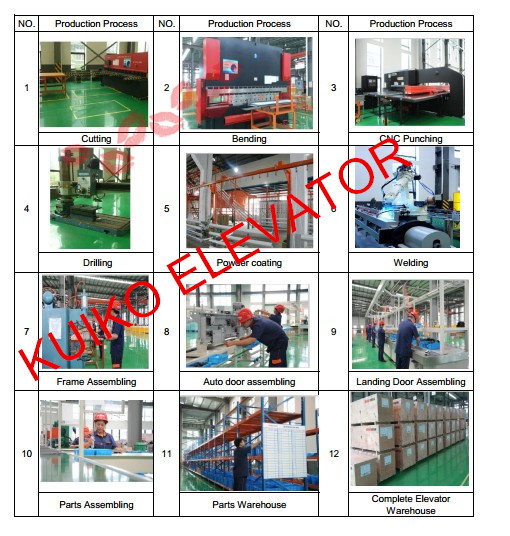

2. Installation and Maintenance:We will send installation and maintenance manual along with the elevator in the container. Our suggestion is to hire a professional local engineer group for installation. Once you need any technical assistant, just contact us. 3. Production Process:

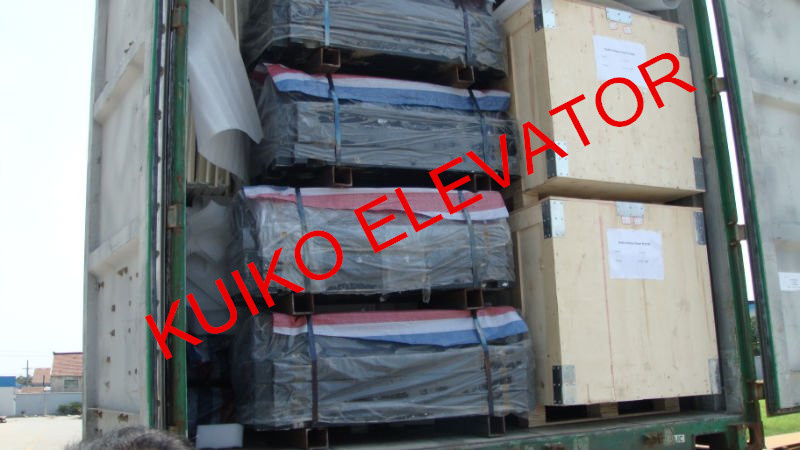

4. Warehouse and Package
Person
/
capacity
| Net size of car
AAxBB
(mm) | Square of car (m 2 ) | Net width of door JJ (mm) | Depth of door (mm) | Hoistway size
AHxBH
(mm) | Rate Speed V(m/s) | Height of door HH(mm) | P.H PD(mm)
| Overhead height OH(mm)
| MR.H (mm) |
| 8/630 | 1400
X
1100 | 1.604 | 800 | 1000 | 1950
X
1750 | 1.0 | 2100 | 1400 | 4200 | 2500 |
| 1.5 | 1500 | 4300 |
| 1.75 | 1600 | 4400 |
| 10/800 | 1400
X
1350 | 1.954 | 800 | 1000 | 1950
X
2000 | 1.0 | 1400 | 4200 |
| 1.5 | 1500 | 4300 |
| 1.75 | 1600 | 4400 |
| 2.0 | 1700 | 4500 |
| 2.5 | 1850 | 4700 |
| 13/1000 | 1600
X
1500 | 2.472 | 900 | 1100 | 2200
X
2150 | 1.0 | 1400 | 4200 |
| 1.5 | 1500 | 4300 |
| 1.75 | 1600 | 4400 |
| 2.0 | 1700 | 4500 |
| 2.5 | 1850 | 4700 |
| 18/1350 | 2000
X
1500 | 3.088 | 1100 | 1300 | 2600
X
2150 | 1.0 | 1400 | 4200 |
| 1.5 | 1500 | 4300 |
| 1.75 | 1600 | 4400 |
| 2.0 | 1700 | 4500 |
| 2.5 | 1850 | 4700 |
| 21/1600 | 2000
X
1700 | 3.488 | 1100 | 1300 | 2600
X
2350 | 1.0 | 1400 | 4200 |
| 1.5 | 1500 | 4300 |
| 1.75 | 1600 | 4400 |
| 2.0 | 1700 | 4500 |
| 2.5 | 1850 | 4700 |
KUIKO Elevator Co., Ltd. is a specialized enterprise focusing on manufacturing fast elevator. It is located in Hangzhou city, Zhejiang, China, just 15 minute away from Hangzhou airport. Its factory covers an area of, with more than 80 sets of advanced equipment including Germany TRUMPF laser cutting machine, multi-station CNC punching, Japanes OTC robot automatic welding machine, CNC bending machine, German laser cutting machine, door systems production line, the car production line, control systems production line and etc. And its annul production capacity reaches 20, 000 elevators. We KUIKO will provide best quality and good price from you from USD$11000 to USD$16000. Main safety parts are from highest quality companies in world. The goal of KUIKO elevator is "superior quality, reasonable price, punctual shipment and good service"
