Product Specifications
| Prod Model: |
RV30 RV40 RV50 RV63 RV75 RV90 RV110 RV130 RV150 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Permitted Torqne: |
13-1050n.M |
| Input Power: |
0.09-11kw |
| Ratio: |
7.5-100(up to 3200 by Combination) |
| Housing: |
Aluminum and Casting Iron |
| Type: |
Worm and Wormwheel |
| Manufacturing Method: |
Forging Gear |
| Toothed Portion Shape: |
Helical |
Product Description

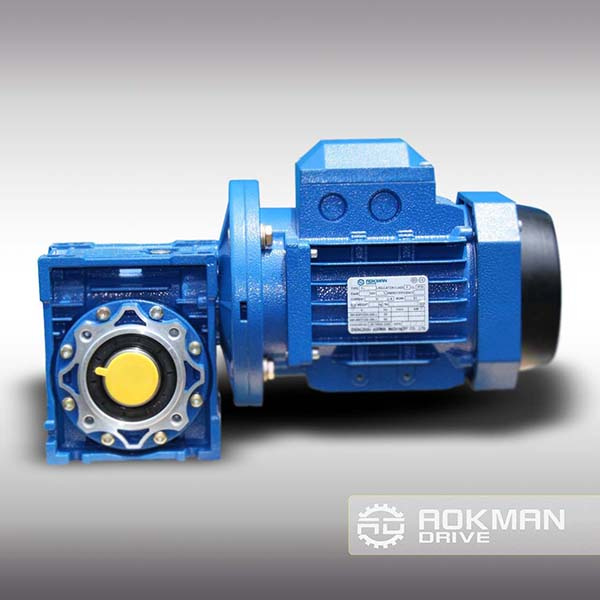

Main Characteristic of RV Series Worm Gearbox
RV series worm gear reducer is a new-generation product developed by Aokman on the basis of perfecting WJ series products with a compromise of advanced technology both at home and abroad.
1. High-quality aluminum alloy, light in weight and non-rusting.
2. Large in output torque.
3. Smooth running and low noise, RV series gear reducer can work long time in dreadful conditions.
4. High radiation efficiency.
5. Good-looking appearance, durable in service life and small volume.
6. Suitable for omnibearing installation.
Main Materials of RV Series Worm Gearbox
1. Housing: die-cast aluminum alloy(frame size: 025 to 090), cast iron(frame size: 110 to 150).
2. Worm: 20Crm, carbonization quencher heat treatment makes the surface hardness of worm gears up to 56-62 HRX, retain carbonization layer's thickness between 0.3 and 0.5mm after precise grinding.
3. Worm Wheel: wearable stannum bronze alloy.
Surface Painting of RV Series Worm Gearbox
Aluminum alloy housing:
1. Shot blasting and special antiseptic treatment on the aluminum alloy surface.
2. After phosphating, paint with RAL5010 blue or silvery white paint.
Cast iron housing:
First paint with red antirust paint, then paint with RAL5010 blue or silvery white paint.
| Rated power | Rated Torque | Gear Arrangement | Ratio | Installation Form |
| 0.09KW~11KW | 13~1050N.m | Worm & Wheel | 5, 7.5, 10, , 100 | Flange Mounted or Foot Mounted or Torque Arm Mounted |
The model of RV series worm gearbox:
RV25 RV30 RV40 RV50 RV63 RV75 RV90 RV110 RV130 RV150
NMRV30 NMRV30 NMRV40 NMRV50 NMRV63 NMRV75 NMRV90 NMRV110 NMRV130 NMRV150
NRV25 NRV30 NRV40 NRV50 NRV63 NRV75 NRV90 NRV110 NRV130 NRV150
