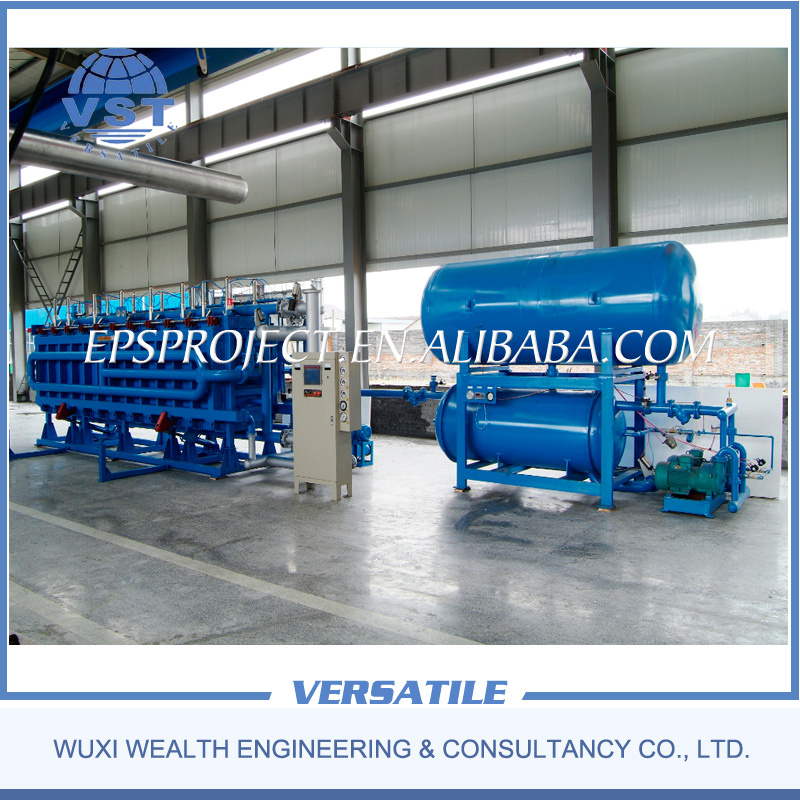

Quality Guarantee EPS Boards Block Machinery

Name: Quality Guarantee EPS Boards Block Machinery
Brand: China-Manufacturer-Directory.com
SKU: 753557885
Availability: InStock
Rating: 4.6 (68 reviews)

Supplier:	Fuyang Wealth Imp & Exp Co., Ltd.
Price:	US $ 30000-70000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	psb-dz200~600
Markets:	South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia
Plastic Type:	Expandable Polystyrene (EPS)
Machine Type:	EPS Machine for Block
Cooling Type:	Vacuum Cooling
Warranty:	1year
Certification:	SGS
Automation:	Automatic

Product Description

Main Features:
1,Strong Structure:
   Machine is made of high-strength square tubes and thick steel plates.
   Machine's all six panels are through heat treatment to release welding stress, so that panels cannot deform under high temperature.
   After heat treatment, all panels are processed by sand blasting treatment t remove rust, then first painting and final painting is done to keep machine anti-corrosion.
2,Steam System:
   Use three ball valves to control steam, saving 20% steam comparing to traditional one main valve system.
   Steaming is controlled by Timer and three Germen electrical gauge switches, with a safty valve to save from gauge malfuncton situation.
3,Control System:
   Machine with PLC and touch screen for easy operation.

Details of machine

Some products of machine for reference

Technical Data:

Item		PSB-DZ200	PSB-DZ300	PSB-DZ400	PSB-DZ600
Mould cavity size		204012401030(mm)	306012401030(mm)	408012401030(mm)	610012401030(mm)
Block size		200012001000(mm)	300012001000(mm)	400012001000(mm)	600012001000(mm)
Steam	entry	DN80	DN80	DN150	DN150
	consumption	30-50kg/cycle	50-70kg/cycle	60-90kg/cycle	100-130kg/cycle
	pressure	0.8Mpa	0.8Mpa	0.8Mpa	0.8Mpa
Compressed Air	entry	DN40	DN40	DN40	DN40
	consumption	1.5-2 m 3 /cycle	1.8-2.2 m 3 /cycle	2-2.5 m 3 /cycle	2-3 m 3 /cycle
	pressure	0.6Mpa	0.6Mpa	0.6Mpa	0.6Mpa
Cooling water	entry	DN40	DN40	DN40	DN40
	consumption	0.2-0.4 m 3 /cycle	0.4-0.6 m 3 /cycle	0.6-0.8 m 3 /cycle	0.8-1 m 3 /cycle
	pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Drainage	vacuum drain	Φ125mm	Φ125mm	Φ125mm	Φ125mm
	steam vent	Φ100mm	Φ100mm	Φ200mm	Φ200mm
	condensate	Φ100mm	Φ100mm	Φ100mm	Φ100mm
	Blower outlet	Φ125mm	Φ125mm	Φ150mm	Φ150mm
Throughput	15kg/m 3	5min/cycle	6min/cycle	7min/cycle	8min/cycle
Power		20.5-24.5kw	20.5-24.5kw	24.5-35.5kw	24.5-35.5kw
Overall dimension	LWH	570040002850(mm)	720045003000(mm)	1100045003000(mm)	260039602906(mm)
Weight		6000kg	7200kg	12000kg	15000kg
Room height required		6000mm	6000mm	6000mm	6000mm
