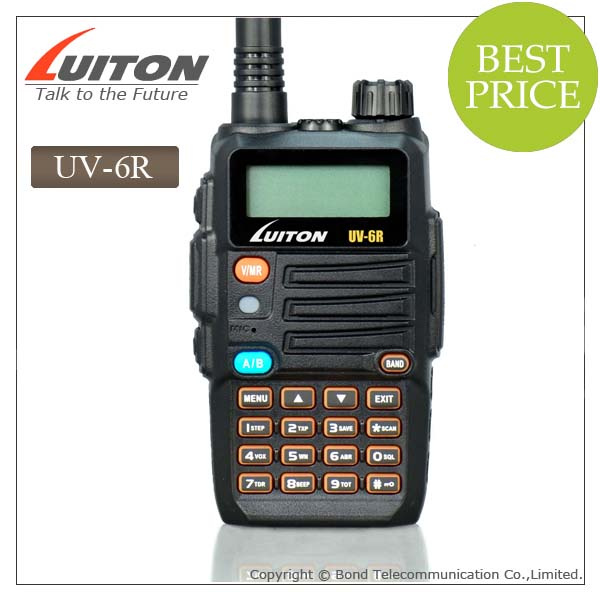

Quanzhou luiton uv-6r, vox, fm radio transceivers vhf uhf:
Main Features:
Dual band, dual display
5Watts power output, 128 channels
Flash torch
FM radio
VOX
Big LCD, voice prompt,
Emergency alarms
High/Low Power Switchable
Auto Battery Save
Busy Channel Lockout
CTCSS-50/CDCSS-105
Humanized menu
TOT (Time-out timer)
Ending sound silence
With/narrow Bandwidth
Selected call
Keypad lock
PC Programmable
Packaging & Shipping
· 1x walkie talkie
· 1x Li-Ion battery
· 1x Antenna
· 1x Belt Clip
· 1x User's Manual
· 1X Power adapter
Our Services
Condition, Payment and Shipping:
1 We glad to ship to WorldWide.
2 Please make payment by Paypal, Western union, bank wire transfer (T/T) after confirm the order.
3 Transportation: DHL, FedEX, UPS, TNT or EMS, HongKong post airmail. By air & by sea.
4 Item will be shipped out within 3-7 working days upon receipt of the payment. (Excluding Saturday, Sundays & China Holidays)
5 Shipment may arrive within 3-16 days. Actual delivery days would be different for varies countries.
6 We do single and combine shipment.
Payment Policy:
We could only accept payment by Western Union/TT/PayPal in this stage.
Warranty Service:
We 100% Guarantee your Satisfaction
1 Please report us if there are any problem, we will solve it ASAP.
2 This items comes with 1 YEAR
Equivalent replacements can be provided with shipment of your next order if the products are broken for inartificial factors within 1 YEAR; However photos are needed for us to find the factors of damaging them.
3 Shipping and handling fees are not refundable for return or exchange items.
Company Information
Bond Telecom Co., Ltd. Specializes in producing and marketing professional FM radios, with marine radio, CB radio, mobile radio, transciever, interphone, walkie talkie, 2 way radio, two way radio, portable radio etc. We have been in this field more than 9 years. Our main markets are South America, Asia and the Middle East. Our products have won a good reputation in those markets. We can supply OEM and ODM services. Please feel free to contact us for further information.
|
General |
|
Frequency Range |
136-174MHz & 400-480MHz (dual band) |
|
Channel No. |
128 |
|
Channel Spacing |
2.5/5/6.25/12.5/20/25KHz |
|
Voltage |
DC7.2V |
|
Battery |
1500mAh(Li-Ion) |
|
Frequency Stabilization |
±2.5ppm |
|
Operating Temperature Range |
-20°C~+55°C |
|
Antenna Impedance |
50 |
|
Working Mode |
Simplex for same/different channel |
|
Dimension(without antenna) |
110 * 58 * 32mm |
|
Transmitter |
|
RF Power Output |
4W/1W |
|
Modulation Type(Wide/Narrow) |
16KØF3E / 11KØF3E |
|
Spurious power |
≤7.5uW |
|
Maximum Frequency Deviation |
≤5KHz/≤2.5KHz |
|
Adjacent channel power |
≤-65dB/≤-60dB |
|
Signal to Noise Ratio(Wide/Narrow) |
≥-45dB/≥-40dB |
|
Frequency Deviation |
0.7 ± 0.1KHz/ 0.4 ± 0.1KHz |
|
Modulation sensitivity |
8-12mV |
|
TX Current |
≤1.4A |
|
Receiver |
|
Sensitivity |
-122dBm(12dB SINAD) |
|
Audio Power |
1W |
|
Audio distortion |
<10% |
|
Intermodulation(Wide/Marrow) |
≥65dB/≥60dB |
|
Adjacent channel selectivity(Wide/Narrow) |
≥65dB/≥60dB |
|
Clutter rejection |
≥65dB |
|
RX Current |
≤380mA |
