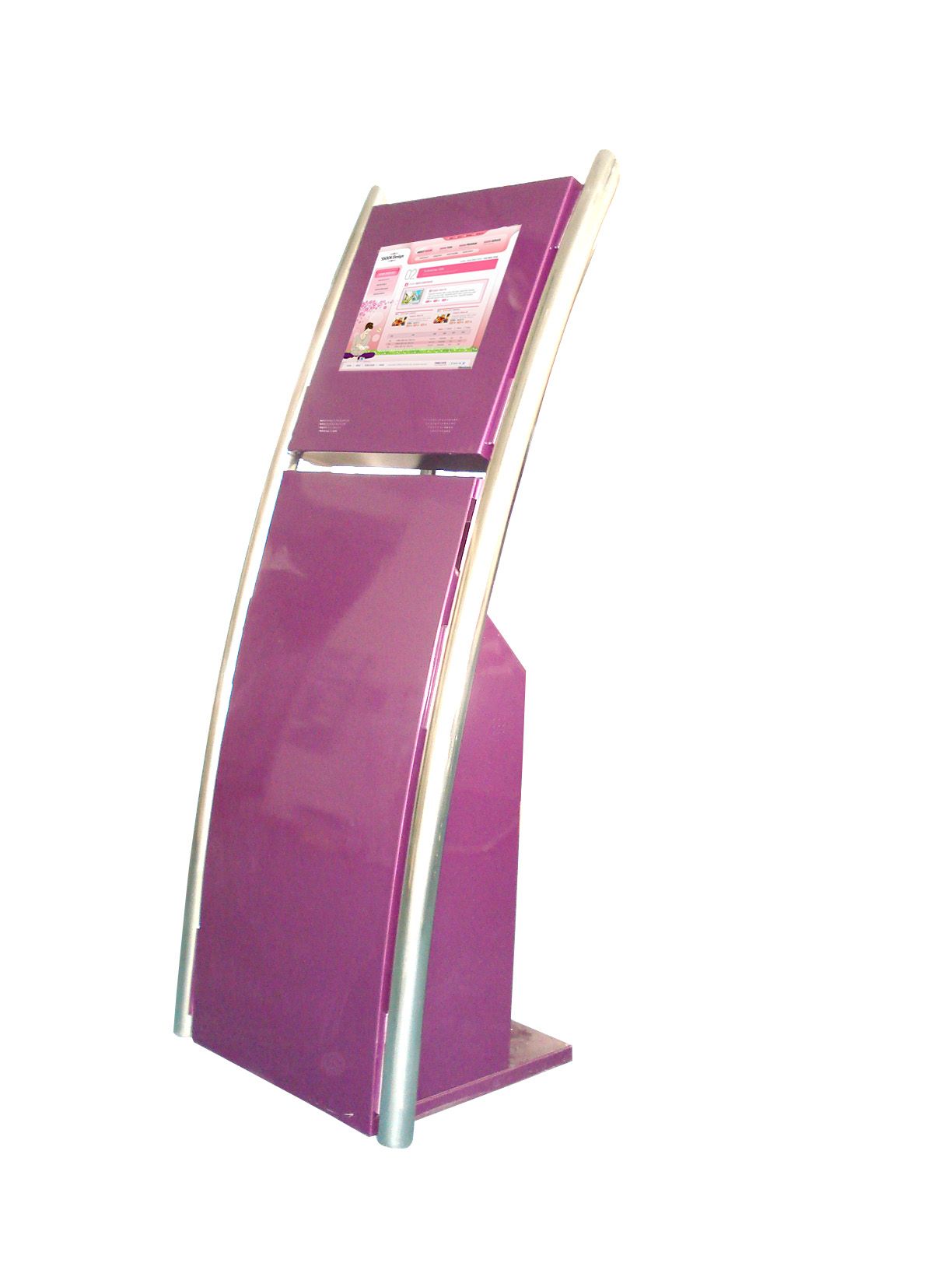

Queueing Touch Kiosk (YL2011)

Product Specifications

Prod Model:	YL2011
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Optional
Screen Size:	15'', 17'', 19''
Material:	Cold Rolled Steel
Expended Function:	Camera, Printer, Wireless LAN, etc.
Type:	Queue System
Certification:	CCC

Product Description

Yulian touch kiosks are specially designed as per the customers' request and their own configurations, OEM, fashionable design, practical, firm, durable and operating convenient.

Specification:
Touch panel: Mapletouch 5-wire resistive touch screen
Circuiting Rating: 5V DC, 35mA
Surface Hardness: 3H
Light Transmission: Film+Glass>83%
Hitting Life Expectancy: Over 35 million
Scoring Life Expectancy: Over 5 million
Contact Bounce: <10ms
Operating Temperature: -10 oC~+60 oC
Resolution: 4096x4096
Storage Temperature: -20 oC ~ +70 oC
Linearity: 1.5%<1.0% By Request
Thickness: 3.0mm
Operating Force: 10g~100g
Monitor: LCD
Display Area: TFT LCD17.1"(19)
Resolution: 1280*1024
Contrast Radio: 500: 1
Colour Resolution: 16.2M
Brightness: 300CD/m2
DC Adapter: DC12V 5A
Kiosk:
Material: Cold rolled steel ST12 SPCC
Thickness: 1.5mm
Work environment: Temperature: +5 ~ +35; Humidity: 40% ~ 80%
Network function: Four-core telphone or RJ45 network tie-in ( Standard of RJ45)
The surface: Color optional
Basic electrical equipment with cables and power adapter for monitor and sound system
Two speakers

Other equipments(optional):
1. PC:
@ 2G RAM DDR3
@ Intel Celeron Dual-Core 2.2GHz E3400
@ G41 motherboard
@ 320G HDD
2. Keyboard (with trackball)
3. 80mm Thermal Printer
4. Card Reader
5. Fingerprint
6. Coin Acceptor
7. External CCD Barcode Scanner
Application:
They are widely applied to many fields, such as banks, hotels, communities, tourist services, government, entertainment centers, etc, for information query and charge collection.
