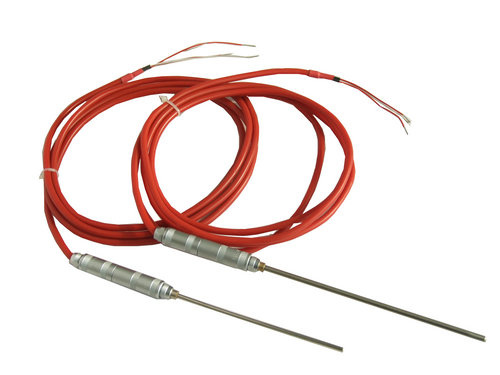

Product Specifications
| Prod Model: |
TM1202 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Technical Data
Ambient temperature
Silicone -50 ~ +180 celsius degree
Teflon -50 ~ +260 celsius degree
Glass fiber-50 ~ +350 celsius degree
Electrical connection
LEMO connector
Material
Stainless steel
W.1.4301(AISI 304)
W.1.4404(AISI 316L)
Other materials upon request
Sensor element
PT100, PT1000, Class A, Class B, Class 1/3B, Class 1/5B, Class 1/10B
Accuracy IEC 60751
1/1 DIN B ±(0.3 + 0.005 x t)Celsius degree
1/1 DIN A ±(0.15 + 0.002 x t)Celsius degree
1/3 DIN B ±1/3 x (0.3 + 0.005 x t) Celsius degree
Response time
T0.9 approx.6sec, in water 0.2m/sec, diameter 4mm
Dalian Bocon Science & Technology Co., Ltd specializes in researching, manufacturing and selling temperature sensors. Our production factory locates in Dalian --- the Chinese northern coastal city with one professional team researching temperature sensors and measurement technology, five standard temperature laboratories and several patents. At present, we have international advanced industrial temperature sensor and heat meter temperature sensor production line. At the same time, we are watching closely the development trends of global temperature sensor and measurement technology, keeping long-term cooperation with same companies in Germany, England, America and other countries and importing the international newest technology to update our products which are widely used in domestic market.
We certified ISO 9001: 2008 and ISO 14001: 2004 and the products are authorized by CE System. Our products are widely used in industrial and scientific research fields such as heat metering equipment, wind power equipment, refrigeration equipment, HAVC, industrial furnace, rubber and plastic machine, chemical fiber, food industry, power equipment and so on.
We are selling our products not only in domestic market but also the overseas market. The main products: Thermal resistance, thermocouple, temperature transmitter, temperature display, thermoregulator, humidity transmitter, single loop controller, multiloop controller and digital thermometer.
We can provide homologous solution for different requirements of customers.
