Quick Show Laser Controller Software for Ilda Animation Design

Name: Quick Show Laser Controller Software for Ilda Animation Design
Brand: China-Manufacturer-Directory.com
SKU: 692596352
Availability: InStock
Rating: 5 (58 reviews)

Supplier:	Shenzhen Lanling Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	Quickshow
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Language:	English, Chinese, Japanese
OS:	Windows 98,2000,2003,XP,Vista,Win7
Standard:	Offline Edition
Application:	Professional Edition
Type:	Laser Software
Language Version:	English, Chinese, Japanese

Product Description

Words roll function
Directly switch function of the ture type style
Coredraw pattern input function
ILDA image play and edit
Laser show edit and display
Supports any laser light with ILDA DB25 interface
Supports any laser with TTL adjustment method
Maximum control 5pcs laser at same time
USB 2.0 interface
Gross weight: 0.4kg
Volume weight: 1.4kg
All trademarks shown here are for reference purposesonly. They are the property of their respective owners, and we arenot authorized to sell items bearing such trademarks.

Model Names	Quickshow
Description	Original Pangolin Quickshow Laser software for ILDA animation lasers
Quickshow features:
No dongles!	Never worry about forgetting or losing a dongle. You can work on, and display, shows without needing a dongle.
Cues	Nearly 2000 graphics, animations, beam effects and abstracts are included.
Abstract frames	Make planetarium-style abstract shapes, such as flowers or spirograph geometric figures.
Live controls	For a cue or the entire display, adjust size, position, rotation angle, rotation speed, color, color cycling, scan speed and animation rate.
QuickTools for creation and editing	QuickText, QuickShape, QuickTrace, QuickTargets, QuickTimeline, QuickDMX
Display methods	Single cue, multi-track cue, sequence cues, timeline show programming
Display timing	Manual (mouse/keyboard), automatic to beat (BPM), autorun for sequences and timeline.
Preview	On-screen preview of all graphics and beams using Windows OpenGL.
BPM methods	Timed, audio beat detect, manual.
Background work mode	Create/edit cues on-screen without affecting laser output. Only show your cues when you are done. The audience never sees your background work.
Autotrace bitmaps	Import GIF, JPG, BMP files and convert instantly to laser. Outline and centerline tracing modes.
Control DMX devices	Set up to 512 DMX channels per cue. Unlimited number of cues or "looks".
Custom effects	Apply one or more effects to a cue, a sequence or a timeline event. Effects include colors (preset and changing), pulse/flash/strobe, trace, chop, ripple, mirror, double, scroll, rock, throb, zoom and bounce.
Projector correction and zones	Full geometric correction for off-axis scanning. HIt multiple screens from one projector, using projection zones (cues are positioned and scaled to appear in part of the scan area).
Hardware requirements:
Computer requirements	(1)PC notebook or desktop with dual-core processor such as Intel Centrino Duo, Core 2 Duo, or AMD equivalent (2)Operating system: Windows XP, Vista or 7 (3)Monitor: Minimum resolution of 1024 x 768 (4)At least one available USB port
Projector requirements	(1)A lasershow projector with ILDA-standard input connector (2)Any speed scanners, from 10K to 60K+ (3)Any color, from single-color to full-color RGB

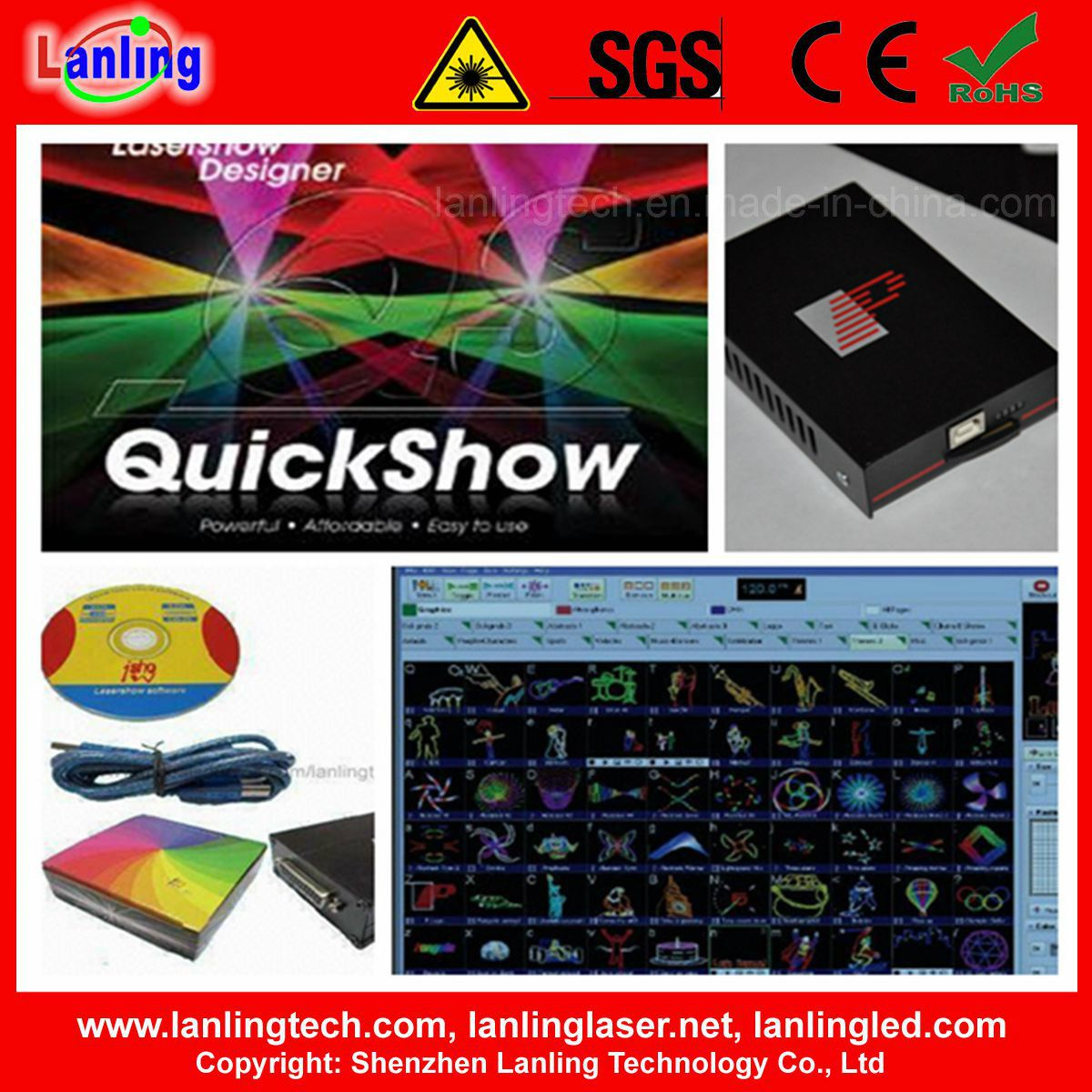

What you get	QuickShow software on CD-ROM Nearly 2000 pre-loaded cues Instruction manual Flashback 3 interface box: 4.2 x 2.8 x 1.3 in (110 x 71 x 33 mm) USB cable, to connect your computer to the Flashback 3 box
Net Weight	0.7kg
Volume weight	1.5kg (/5000)
Package size	24414459(0.002m³)
Optional devices:
Touchscreen	QuickShow is designed so it can be used with a touchscreen notebook or monitor
MIDI controller	Trigger cues using MIDI devices such as keyboards. A MIDI interface may be required to connect to computer's USB port.
DMX interface	Required for DMX input (a console triggers QuickShow cues) and for DMX output (QuickShow cues trigger external devices such as lights and foggers). Contact Pangolin for recommended/tested models.
Optional control for up to six projectors	The QuickShow system comes with one Pangolin Flashback 3 laser controller. This small, palm-sized box connects between a USB port on your PC and the ILDA input connector on your laser projector. To control additional projectors, you can add up to five more Flashback 3 laser controllers
