Qwd Series Wire Mesh Shot Blasting Machine /Shot Peening Machine

Name: Qwd Series Wire Mesh Shot Blasting Machine /Shot Peening Machine
Brand: china-manufacturer-directory.com
SKU: 699806122
Availability: InStock
Rating: 4.8 (48 reviews)

Supplier:	Qingdao Huashengtai Shot Blasting Machinery Co., Ltd.
Price:	US $ 39800set
Min Order:	1set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HQWD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Overall Size:	According to Requirement
Type:	Wire Mesh Conveyor Shot Blasting Machine

Product Description

Application:

The HQWD Series Wire Mesh Belt Shot Blasting Machine is mainly used for automobile , aerospace railway and other machine manufacturing industry , especially suitable for the surface of the thin-walled iron castings or aluminium castings and other small parts. It can be used for machanical parts shot blasting strengthen.

Principle:

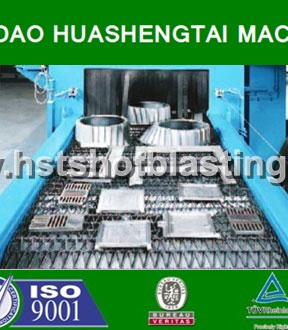

The net belt shot blasting machine will deliver the workpieces to closed blasting chamber by a net conveyor system, it uses high-speed rotating blast wheel impeller to make shots blasting on surface of workpieces, so that to reach cleaning result. It is one kind of shot blasting equipment to disc shape castings, forging, structure and so on.

Features:

I. net belt structure, conveying speed is frequency control, uniform shot blasting, higher cleaning effect

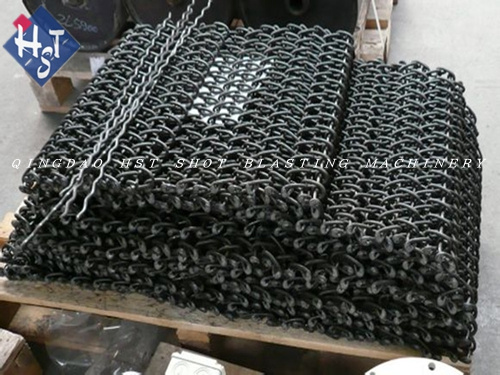

II. steel net belt, slag skin is easy to leak, heat radiation of workpiece is goof, which can achieve effective cleaning of high-temperature workpieces

III.shots material circulation purification system adopts overflow controllable full multi-grade curtain winnowing separator and special polyester core line elevator belt to achieve separation and recycling of shots .

IV.blasting chamber equips with multi-layer sealing curtain which can meet requirement of different workpieces. Shot blasting dust removal system uses impulse back flushing cartridge dust collector, dust removal result is good and service life is prolonged.

HQWD Series Wire Mesh Belt Shot Blasting Machine Technical Parameter:

Model	HQWD60	HQWD80	HQWD100	HQWD120
Width of wire belt (mm)	600	800	1000	1200
Abrasive flow rate (kg/min)	4*120	4*120	4*180	4*250
Cleaning Speed (m/min)	0.5-4	0.5-4	0.5-4	0.5-4
Power (kw)	11-15	11-15	11-18.5	11-18.5

l Technical team support to provide suitable proposal according to customer's requirement;

l Skilled workers and advanced production equipments to ensure high quality products;

l Training programs for operating and maintenance;

l Installation and commissioning of new machine;

l Timely problem solving support with direct line by 24/7;

l Spare parts supply with lowest price for all of supplies equipment.

contact method

If you want to customize shot blasting machine,could you tell me the answers as follow?

1) What kind of workpiece will you clean?

2) The size of it, length, width and height of maximum workpiece? Length, width and height of minimum workpiece?

3) How heavy is each workpiece? Especially the weight of maximum workpiece?

4) How many tons will you clean for each month or each day?

5) Do you have any special request for electrical components brand?

After get confirmation from you, our engineer will make the detailed technical parameters for your reference.
