Product Specifications
| Prod Model: |
QXR-21E |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Compressor Type: |
Rotary |
| Color: |
Black |
| Weight: |
16kg |
| Size: |
205*130*307mm |
| Input Power: |
1210W |
| Power Supply: |
220V~50Hz |
| Displacement: |
21.3cm3 |
| Refrigerating Capacity: |
12000BTU/H |
| Type: |
Rotary |
| Power Source: |
AC Power |
Product Description

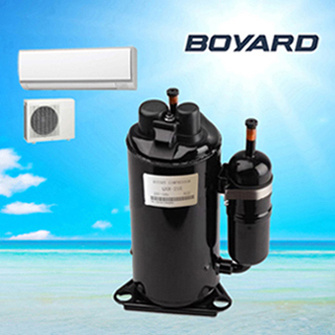

R22 series rotary compressor, is especially designed for: Air conditioner, dehumidifier, industrial water chillers, etc refrigerating areas.
|
Model |
RATED POWER SUPPLY |
Cylinder Volume cm³ |
Nominal Capacity |
Input Power(W) |
WORK CURRENT(A) |
RUN CAPACITOR(µF/450V) |
|
W |
Kal/h |
Btu/h |
|
QXR-10E 2FN1 |
220V~50Hz |
9.6 |
1680 |
1445 |
5712 |
580 |
2.7 |
20 |
|
QXR-13E 2FN1 |
220V~50Hz |
13.5 |
2120 |
1823 |
7208 |
730 |
3.5 |
25 |
|
QXR-16E 2FN2 |
220V~50Hz |
16.4 |
2730 |
2348 |
9282 |
915 |
4.2 |
25 |
|
QXR-19E 4DN1 |
220V~50Hz |
19.3 |
3210 |
2761 |
10914 |
1100 |
5.1 |
30 |
|
QXR-21E 4DN3 |
220V~50Hz |
21.3 |
3620 |
3113 |
12308 |
1210 |
5.6 |
30 |
|
QXR-23E 4DN1 |
220V~50Hz |
23.5 |
3920 |
3371 |
13328 |
1300 |
6.1 |
35 |
|
QXR-25E 4DN2 |
220V~50Hz |
25.4 |
4220 |
3629 |
14348 |
1410 |
6.6 |
35 |
|
QXR-30E 4DN2 |
220V~50Hz |
30.7 |
5200 |
4460 |
17680 |
1800 |
8.6 |
50 |
|
QXR-33E 5DS1 |
220V~50Hz |
33.6 |
5640 |
4850 |
19176 |
1925 |
9.1 |
50 |
|
QXR-36E 5DS1 |
220V~50Hz |
35.7 |
6060 |
5212 |
20604 |
2060 |
9.8 |
50 |
|
QXR-41E 6BT1 |
220V~50Hz |
41.2 |
7060 |
6072 |
24004 |
2360 |
11.2 |
50 |
|
QXR-44E 6BT1 |
220V~50Hz |
44.2 |
7620 |
6553 |
25908 |
2540 |
12.0 |
50 |
|
QXR-13Y 2FN2 |
220V~60Hz |
13.5 |
2650 |
2279 |
9010 |
900 |
4.2 |
20 |
|
QXR-16Y 2FN1 |
220V~60Hz |
16.4 |
3260 |
2804 |
11084 |
1100 |
5.1 |
20 |
|
QXR-19Y 4DN2 |
220V~60Hz |
19.3 |
3910 |
3363 |
13294 |
1300 |
6.0 |
25 |
|
QXR-21Y 4DN2 |
220V~60Hz |
21.3 |
4290 |
3689 |
14586 |
1440 |
6.7 |
30 |
|
QXR-25Y 4DN2 |
220V~60Hz |
25.4 |
5060 |
4352 |
17204 |
1720 |
8.2 |
30 |
|
QXR-27Y 4DN2 |
220V~60Hz |
26.4 |
5390 |
4635 |
18326 |
1820 |
8.5 |
35 |
|
QXR-33Y 5DS1 |
220V~60Hz |
33.6 |
6810 |
5857 |
23154 |
2320 |
10.6 |
45 |
|
QXR-36Y 6BT1 |
220V~60Hz |
35.7 |
7300 |
6278 |
24820 |
2500 |
11.5 |
50 |
|
APPLICATION |
AMBIENT TEMP. |
RETURN GAS TEMP. |
CONDENSING TEMP. |
SUBCOOLING TEMP. |
EVAPORATING TEMP. |
|
HIGH TEMP. |
35°C |
35°C |
54.4°C |
46.1°C |
7.2°C |
200 kilometers from Shanghai City, Zhejiang Boyang Compressor Co., Ltd, enjoys convenient transportation access. We specialize in manufacturing compressors and condensing units for air conditioners and refrigerators, ranging from 0.75HP to 3HP, with the annual output up to 300, 000 units.
Our main products include QXR series compressors (R22) complying with the CCC standards, QXC series compressors (R407C) in compliance with the TUV standards and HQXL series condensing units (R22).
Strictly implementing the ISO9001 system, in addition to the CCC, TUV, and CE standards, these products are selling well in Southeast Asia, South America, Africa and Russia, in addition to the domestic markets.
Following the operation concept of "Honest and Mutual Development", our company will constantly promote Lanhai brand via continuous innovation and improvement. Thus, our talented staff will always provide customers with high quality products and excellent after-sales service at competitive price.
