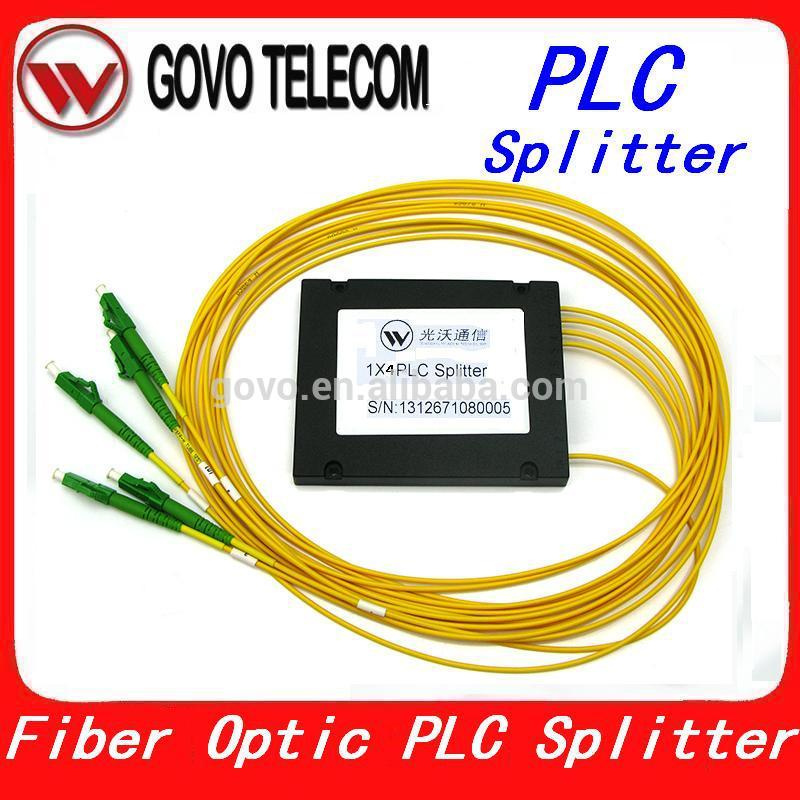

Rack Mount Type/Cassette Type/ Module Type 1*4/1*8 /1*16 /1*32 /1*64 PLC Splitter

Product Specifications

Prod Model:	Rack Mount type/Cassette type/ Module type 1*4/1*8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	Rack Mount Type/Cassette Type/ Module Type 1*4/1*8
Operating Wavelength(Nm):	1260~1650
Return Loss(Db)(P/S):	55/50
Directivity(Db):	55
Fiber Length(M):	1m or Customized
Fiber Type:	Corning SMF-28e or Customized
Temperature Stability (Max):	0.5
Operating Temperature(C):	-40~+85
Storage Temperature(C):	-40~+85
Power Handling (MW):	300
Condition:	New
Type:	Fiber Optic Splitter
Wiring Devices:	PLC Splitter

Product Description

Rack Mount type/Cassette type/ Module type 1*4/1*8 /1*16 /1*32 /1*64 plc splitter

Application:

FTTX Deployments,
Telephony Systems,
CATV Super trunking Links,
Wide Area Networks, Analog and Digital PON Networks.

Specification:
Models 1*2 1*4 1*8 1*16 1*32 1*64
Operating wavelength(nm) 1260~1650
Insert loss(dB)Typical Value 3.6 6.8 10.0 13.0 16.0 20.0
Insert loss(dB) Max(P/S) 3.8/4.0 7.1/7.3 10.2/10.5 13.5/13.7 16.5/16.9 20.5/21.0
Loss Uniformity(dB) Typical Value 0.4 0.5. 0.5 1.0 1.0 1.5
Loss Uniformity(dB) Max(P/S) 0.6 0.6 0.8 1.2 1.5 2.5
Return Loss(dB)(P/S) 55/50
Polarization Dependence Loss(dB) Typical Value 0.1 0.1 0.1 0.1 0.2 0.2
Polarization Dependence Loss(dB)Max 0.2 0.2 0.3 0.3 0.3 0.4
Directivity(dB) 55
Fiber Length(m) 1.2m more or less 0.1 or customized
Fiber Type Corning SMF-28e or customized
Value 0.2 0.2 0.2 0.3 0.3 0.3
Wavelength Dependence Loss(dB) Max 0.3 0.3 0.3 0.4 0.4 0.4
Temperature Stability(Typical Value) 0.3 0.3 0.3 0.4 0.4 0.4
Temperature Stability (Max) 0.5
Operating Temperature(° C) -40~+85
Storage Temperature(° C) -40~+85
Power Handling (mw) 300

Ordering Information:

GW-PLC-Split ratio- Connector-Diameter of jacket- Package type.

For Example: GW-PLC108-SC-3-C
PLC Splitter, 1*8, with SC/PC connector, 3.0mm jacket, Fiber Length: 1m, Cassette type.
