Product Specifications
Prod Model: |

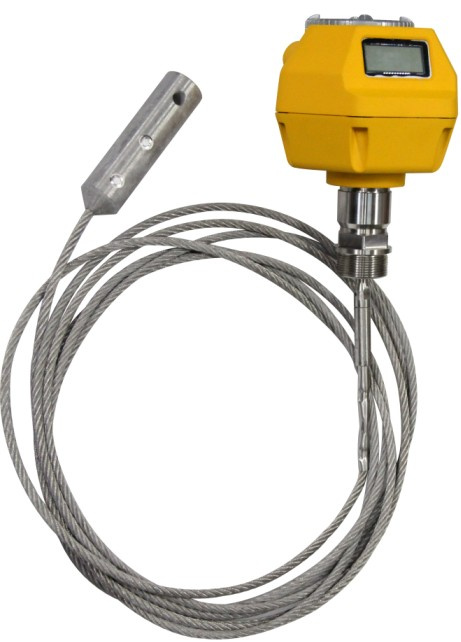

MH701 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Suitable medium: Liquid, solid powder
Application: Liquid and solid powder measurement, complex process conditions
Explosion-proof certification: Exib IIC T6 GB/Exd IIC T6 GB
Measuring range; 30m liquid, 15 m solid
Frequency: 500MHz-1.8GHz
Line: Single cable or single rod antenna
Measurement precision: ± 3mm
Process temperature: (-40~250)
Process pressure: (-0.1~4)MPa
The signal output: (4~20)mA/HART
The display: LCD
Power source: Two line (DC24V) / four line (DC24V/AC220V)
Shell: Aluminum
Process connection: Thread / flange (optional)
Since 2006, Chongqing Zhaozhou Technology Development Co., Ltd. has being used advanced technology to solve difficult sensing/control problems in a broad range of industries. We are specializing in ultrasonic instrument for industry manufacturing and automatic industry, and we have accumulated quite a lot of technology experience for products exploitation and some patents for special products. Our products including ultrasonic level meter, ultrasonic flow meter, ultrasonic consistence meter, etc. And the application area of our products include Paper producing, Mining, Reservoir, Petroleum, water treatment, Obstacle detection, collision avoidance etc. Our production are popular in China, Indian, USA, Indonesia...
