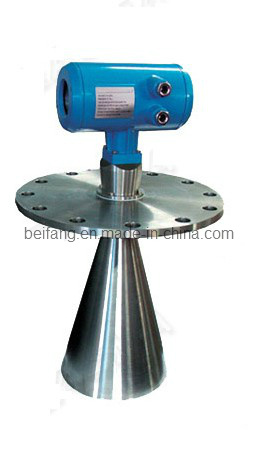

Radar Level Meter R-800
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF,EXW |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
Radar level meter
Radar substance position gauge is suitable for the non-contact continuous measurement of liquids, slurry and granule materials, it is suitable for occasions of great temperature and pressure changes, inert gases and gas volatilizations.
The method of microwave impulse measurement secures normal operation within the range of industrial frequency wave bands. The wave beam energy is relatively low, so it is no harm to human and environment and can be installed inside of all kinds of metal, non-metal containers or pipes.
| Intelligent radar gauge |
|
|
|
| Types | R-100-801 | R-100-802 | R-100-803 |
Application
| Process condition is simple, corrosive liquids, slurries and solids
For example:
Water tank
Acid and alkali tanks
Slurry tanks
Solid granules
Small petrol tanks | Storing corrosive liquids, slurries and solids
For example:
Water tank
Acid and alkali tanks
Slurry tanks
Solid granules
Small petrol tanks | Suitable for all kinds of storing tanks or process measuring environment, liquids, slurries and solids.
For example:
Crude oil, light oil tank
Coal and powder coal bunkers
Volatile liquid tank
Charcoal level
Slurry tank
Solid granules |
| Measuring range | 20 meters | 20 meters | 35 meters |
| Process connection | Screw | Flange | Flange |
| Process temperature | -40-130C | -40-150C | -40-250C |
| Process pressure | -1.0-3bar | -1.0-20bar | -1.0-40bar |
| Repeatability | ± 3mm | ± 3mm | ± 3mm |
| Precision | < 0.1% | < 0.1% | < 0.1% |
| Frequency range | 6.8GHz | 6.8GHz | 6.8GHz |
| Anti-explosion/safety grade | EXiaIICT6/IP68 | EXiaIICT6/IP68 | EXiaIICT6/IP68 |
| Signal output | 4^ 20mA/HART(two phases) | 4^ 20mA/HART two phases) | 4^ 20mA/HART(two phases) |
| Prod Model: |
R-800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Accuracy: |
3mm |
| Temperature: |
-40~300c Degr. |
| Powered: |
24vdc |
Xiuyan precision instrument factory was founded in 1958 October incorporated the collective enterprises. Company is located in "city of jade " -- Xiuyan, picturesque scenery, pleasant environment, convenient transportation.
Enterprise covers an area of 12000 square meters, construction area of 3000 square meters, the registered capital of 1260000 Yuan, the existing staff of 86 people, including 16 technical staff, management staff of 10 people, technical secondary school or above the staff accounted for the total number of employees 78%. Company has strong technical strength, perfect technology, scientific management, enterprises manufacture the main products include Electromagnetic flowmeter, Target flowmeter, Ultrasonic flowmeter, Ultrasonic level meter, Magnetic level meter, Turbine flowmeter, Vortex flowmeter, ect. Enterprise product marketing the whole country, has been used in petroleum, chemical, power, papermaking, brewing, pharmaceutical ect. field of the automatic control system of industrial processes, especially in the petroleum, chemical industry to create own brand. Enterprises has actively expanded the overseas market, has a variety of instruments are exported to Malaysia, Italy, Australia, Zambia, Turkey, America, Brazil, and other countries. At present, the enterprise has passed ISO9001--2000 international quality system certification, report to the Liaoning provincial Science and Technology Agency awarded the High-tech Enterprises. Company for three consecutive years was awarded the "Civilized Unit" title by the Anshan municipal Party committee and municipal government.
Since the company was founded more than 40 years, the joint efforts of leaders and staff, base on the entrepreneurial spirit of " rigorous, pragmatic, efficient, and trustworthy ", adhere to the " quality of products, service first for the customer ", the pursuit of continuous innovation and development, to let the user rest assured, comfortable, happy.
