Product Description

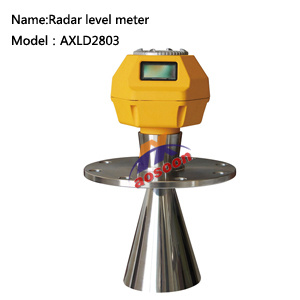

Radar level Measurement principle: 1. Guided wave radar is measuring instrument based on the principle of time travel, the radar waves travel at the speed of light, the running time can be through the electronic components are converted into level signals. 2. Probe a high frequency pulse and along the cable or rod probe propagation, when pulse meets the material surface is reflected back by the receiver instrument within the receiving and the distance signal into a signal.
Product Feature
Radar level 1. Suitable medium: Solid powder 2. Should use: Measurement of cement silo powder Fly ash powder measurement 3. Explosion-proof certification: Exib IIC T6 Gb/ Exd IIC T6 Gb 4. Measuring range; 30m 5. Frequency: 500 MHz -1.8GHz
Product Specification/Models
Radar level Day line: Double cable type antenna Measurement precision: ± 5mm Process temperature: (-40~250)° C Process pressure: (-0.1~4) MPaThe signal output: : (4~20)mA/HART The scene display: Four LCD
Application
Radar level industrial, chemistry, electricity
Other Information
Radar level Power source: Two line (DC24V) / four line (DC24V/AC220V) Shell: Aluminum Process connection: Thread / flange (optional)
Our products include pressure gauges, precision digital pressure gauges, pressure gauges, radar level gauges, ultrasonic level meters, vortex flowmeters, turbine flowmeters, solenoid valves and hundreds of kinds of specifications.
