Product Specifications
| Prod Model: |
2051.102 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmit Frequency: |
10GHz |
| Inductive Area: |
4m(W)X 3m(D) |
| Max Height: |
3m |
| Standard: |
Standard |
| Type: |
Microwave Sensor Switch |
| Certification: |
CE |
| Wires: |
PNP (',Three-Wires) |
| Size: |
10GHz |
| Application: |
Sliding Door |
| Principle: |
Doppler |
Product Description

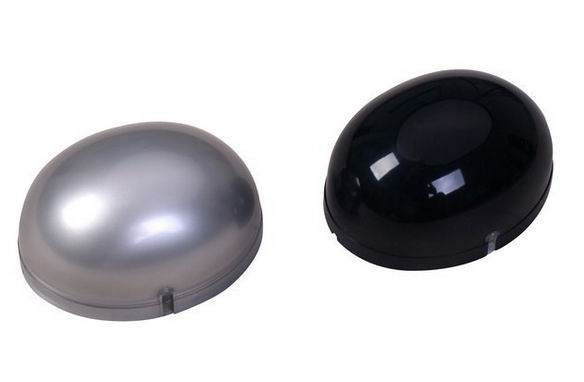

Microwave Sensor Instruction
Parameter
Technology: Microwave & Microprocessor
EMC: 89/336EEC
Theory: Doppler data process
Transmit frequency: 10.525Ghz
Transmit frequency density:<5mW/CM2
Power voltage: 12-24V AC or DC
Power frequency: 50-60Hz
Power consumption: <2W
Output: Standard relay output
Contact voltage max: 220VAC , 28VDC
Contact current max: 1A
Hold time: 1s
Radiation angle: horizontal 120°, vertical 80°
Highest fixing height: 3 meter
Inductive area: 4m(w)X 3m(d)
Inductive area adjustment: antenna angle adjustor
Inductive mode: mobility
The minimum mobile speed: 5cm/s
Sensitivity adjustment: adjust resistance screw
Temperature scope: -10ºC-- +55ºC
Material: ABS
| Power voltage | 12-24V AC or DC |
| Output | Standard relay output |
| Radiation angle | horizontal 120°, vertical 80° |
| Highest fixing height | 3m |
| Inductive area | 4m(w)X 3m(d) |
| The minimum mobile speed | 5cm/s |
