Rail Clamp
Our rail clamp is made from low carbon steel or alloy steel by hot forging, rolling and casting, based on the requirements of our customers. We produce rail clamp in accordance with DIN, GB/TB, AREA standards and customer drawings. We also produce rail clips in accordance with AREA, ranging from 52 lbs rail, 62 lbs rail, 114 lbs rail, 106 lbs rails, 120 lbs rails, 128 lbs rails, 171 lbs rails and 75 lbs rails.
The rail clamp we produced, i.e., S18, S20, S30, S33, KP03, KP06 and KP03.

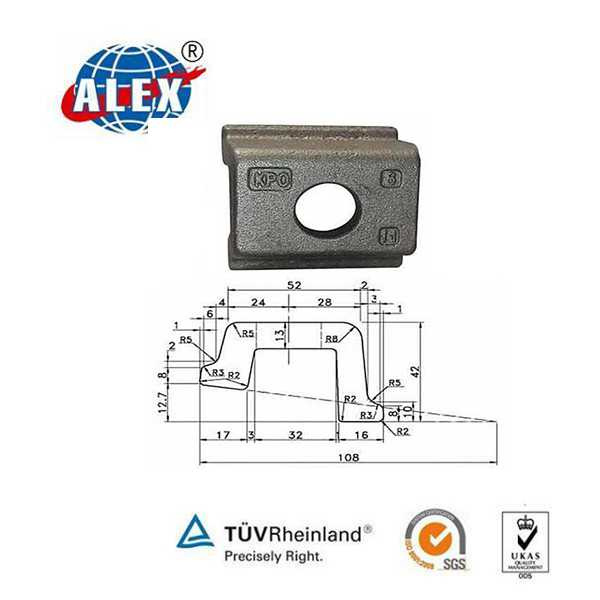

KPO Clamp Rail Fastening System Technical Parameters
| Part name | Type | Material | Finish | Remark |
| KPO clip | KPO3, KPO6, KPO9 | Q235 | Plain oiled | Standard: DIN5906 |
| HS bolt | HS26, HS32 | Grade4.6: Q235
Grade5.6: 35#
Grade8.8: 45# | Plain oiled, black oxide, galvanized, hot dip galvanized | Diameter: 22mm or 24mm.
Length: 55mm, 65mm, 75mm, 90mm
Standard: UIC864-2 |
| Hex nut | As ordered | Grade 5: 35#
Grade 8: 45# | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: DIN985 |
| Double coil spring washer | As ordered | 65Mn | Plain oiled, black oxide, galvanized, hot dip galvanized | Standard: UIC864-3 |
| screw spike | M24×150mm
M24 ×160mm
M24 ×180mm
or other length as ordered | Grade 4.6: Q235
Grade 5.6: 35#
Grade 8.8: 45# | Plain oiled, black oxide, galvanized, hot dip galvanized, Dacromet and sherardized. | Standard: ISO898-1, UIC864-1 and NF F500-50 |
| Base plate | UIC54,UIC60, 50kg rail, 60kg rail,S49 in ordered size | Casting iron QT500-7, QT450-10, or forging low carbon steel or high carbon steel | Plain oiled | Standard: UIC864-6 |
The rail clamp is packed in wooden boxes or sacks and wooden pallets. On average, 25kgs per package.
We are a leading rail clamp manufacturer in China. We can also make other rail fastenings such as rail clip, railway screw, plastic dowel, rail pad, railway insulator, rail fish bolt, railway base plate, rail anchor, railway shoulder, rail bolt, flat and spring washer, fastening system of E type/SKL type/KP type/Nabla type. Thank you for visiting our website. Welcome to choose the rail clamp from Kunshan ALEX Railway Fastening Co., Ltd.
