Product Specifications
| Prod Model: |
FS440-FS2000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tile: |
PVC/HPL/Ceramic/Granite |
| Weight: |
12-17kg |
| Trim: |
Y |
| Strngthen Trip: |
Cross Strip |
| Optioal Size: |
610*610 Mm |
| Characteristic: |
Prevent Static/Fireproof/Antiskid/Strong Wearabili |
| Feature: |
Easy to Fix/Convenient for Fires |
| Concentrated Load: |
200-900kg |
| Factory Location: |
Changzhou, Near Shanghai |
| Offer Related Products: |
Y |
| Usage: |
Computer Room |
| Color: |
Grey |
| Certification: |
Cisca |
| Function: |
Anti-static |
| Advantage: |
Environmental Friendly |
| Size: |
600*600mm |
| Material: |
Metal |
| Customized: |
Customized |
| Metal Type: |
Steel |
| Surface Treatment: |
HPL or PVC or Bare |
Product Description
Characteristics
1. Antistatic, high dimensional precision, fireproof, high load capacity, flatness and shockproof
2. Elegant appearance for various top tiles like HPL, PVC, ceramic, marble, granite, wood floor
3. Agreeable solution to ground air conditioning system
4. Recyclable, convenient removing, cost saving, long performance life
5. Adjustable height of pedestal, stringer connect, assembly agility, large wire and good exchangeability
6. Panel size 600*600 and 24'*24' available
Applications
All kinds of computer room, network service room, monitoring center, electronic workshop, clean room, dustless chamber etc, and occasions demanding antistatic and air conditioning
5A class office, security union plaza, futures trading building, places demanding cabling and wiring and the aging buildings' flooring reform
Technical Data
International | Size(mm) | Concentrated Load | Impact Load (N) | Ultimate Load (N) | Uniform Load (N/M2) | Rolling Load(N) |
| LB | N | KG | 10 Times | 10000 Times |
| FS662 | 600x600x35 | ≥662 | ≥2950 | ≥301 | ≥445 | ≥8850 | ≥1250 | 2946 | 2356 |
| FS800 | 600x600x35 | ≥800 | ≥3350 | ≥363 | ≥536 | ≥11250 | ≥16100 | 3560 | 2670 |
| FS1000 | 600x600x35 | ≥1000 | ≥4550 | ≥450 | ≥670 | ≥13350 | ≥23000 | 4450 | 3560 |
| FS1250 | 600x600x35 | ≥1250 | ≥5560 | ≥567 | ≥780 | ≥16680 | ≥33000 | 5560 | 4450 |
| FS1500 | 600x600x35 | ≥1500 | ≥6675 | ≥670 | ≥1005 | ≥19892 | ≥34500 | 6675 | 5340 |
| FS2000 | 600x600x35 | ≥2000 | ≥8900 | ≥906 | ≥1340 | ≥26700 | ≥46000 | 8900 | 7120 |
*Fireproof Class A
Standard Pedestal and Stringer Specification
FFH(mm) | Tube Diameter(mm) | Adjustment +(mm) | Adjustment -(mm) |
| <=600 | 25 | 25 | 25 |
| 700~900 | 32 | 25 | 25 |
| 1000~1500 | 45 | 25 | 25 |
Other height could be customized.
Standard Stringer SPEC: 21x32x570mm

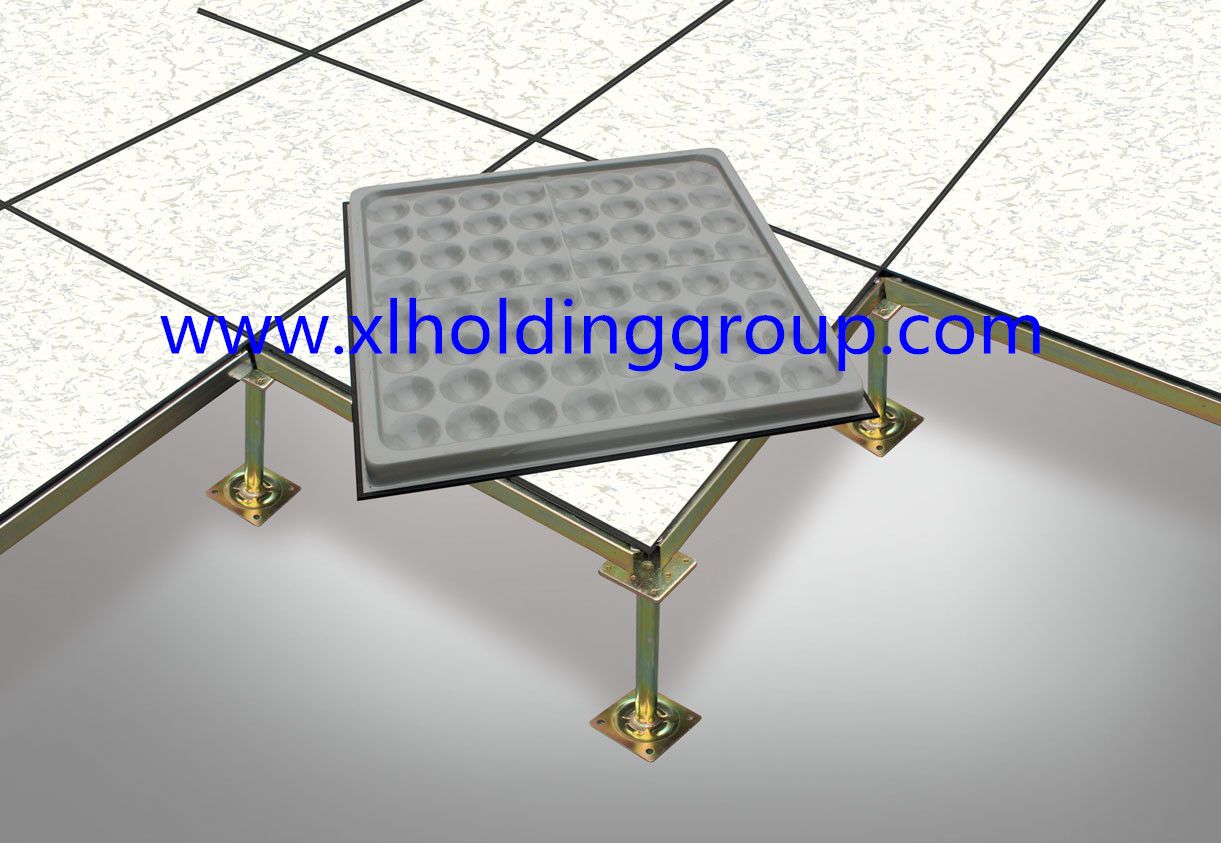

Architect of raised access floor for data center
XL Holding Group is an international company, integrated with R&D, production, sales and service. It'S located in Yangtze River Delta Area near to Shanghai and Nanjing, where has the advantage of developed economy, convenient transportation and solid foundation of industry.
XL Holding Group adheres to the value of "Honesty, Openness, Collaboration, Profession, Focus on Sustainable Profitable Growth, Innovation". It'S committed to build up an enterprise respected by the world and reliable to clients. By now, it has expanded business to 125 countries around the world and established business relationship with Samsung, SOCAR, MANAPPAT GROUP, CAIXA, Sony, CMCC, China Unicom, HUAWEI, MUNAJEM GROUP and other well- know enterprises, offering comprehensive solutions. Several joint-brands with partners and service branches were created in different countries to realize its globalization strategy.
XL Holding Group invests actively to intellectual property; Its R&D team has developed many products with national patent, as the fruit of cooperation with institutes and universities. The certificates, including ISO, CE, CISCA, GREENGUARD, UL, LEED etc, enhance the core competence of the corporation.
