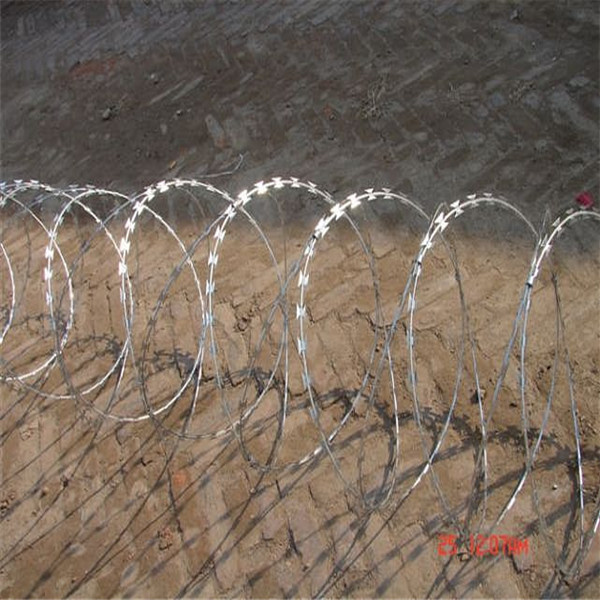

Razor Barbed Wire Mesh

Product Specifications

Prod Model:	EDR-486
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Surface Treatment:	Galvanized
Standard Length Per Coil:	8-25m
Wire Dia:	2.5-3.0mm
Material:	Galvanized Steel Wire
Application:	Fence Mesh
Twist Method:	Single Twist
Coil Outside Diameter:	500mm
Razor Barbed Type:	Cross Razor
Barb Length:	22mm
Barbed Distance:	3"
Wire Gauge:	12x14 BWG
Finish:	Electro Galvanized
Color:	Green

Product Description

razor wire fence
1. concerina Razor wire fence material : steel wire and hot-galvanized sheet
2. concertina Razor wire fence Type: BTO-12, BTO-18, BTO-22, BTO-20 ,CBT-60, CBT-65
Thickness:0.45-0.5mm wire Dia.: 2.5-3.0mm
Barbed Wire materials: standard materials,hot dipped galvanized steel sheet and wire,
SS 304/430 and SS 316
Razor barbed wire mesh features: prevention effect is good, difficult to damage, beautiful and convenient installation, aging resistance, and many other advantages.
Razor Barbed Wire is a modern type of protective and security products usually used on the top of Y shape posts and fences to protect fields, highways, railways, sports, grounds, and military border, prison walls high-grade residential area, warehouse, prisons, border military area and other important need blockade around the forbidden place.
razor barbed wire Application:
Widely used in military field, prisons, detention houses, government buildings and other national security facilities. Also fencing of residences, villa wall and windows, express way, railway, national border lines, etc.
Razor Blade Specification

Reference Number	Blade Style		Thickness	Wire Dia	Barb  Length	Barb  Width	Barb  spacing
BTO-10			0.5±0.05	2.5±0.1	10±1	13±1	25±1
BTO-12			0.5±0.05	2.5±0.1	12±1	15±1	25±1
BTO-18			0.5±0.05	2.5±0.1	18±1	15±1	35±1
BTO-22			0.5±0.05	2.5±0.1	22±1	15±1	36±1
BTO-28			0.5±0.05	2.5	28	15	46±1
BTO-30			0.5±0.05	2.5	30	18	46±1
CBT-65			0.6±0.05	2.5±0.1	65±2	21±1	101±2
Outside Diameter	No. of Loops	Standard Length per Coil	Type		Notes
450mm	33	8M	CBT-65		Single coil
500mm	41	10M	CBT-65		Single coil
700mm	41	10M	CBT-65		Single coil
960mm	53	13M	CBT-65		Single coil
500mm	102	16M	BTO-10.15.22		Cross type
600mm	86	14M	BTO-10.15.22		Cross type
700mm	72	12M	BTO-10.15.22		Cross type
800mm	64	10M	BTO-10.15.22		Cross type
960mm	52	9M	BTO-10.15.22		Cross type
