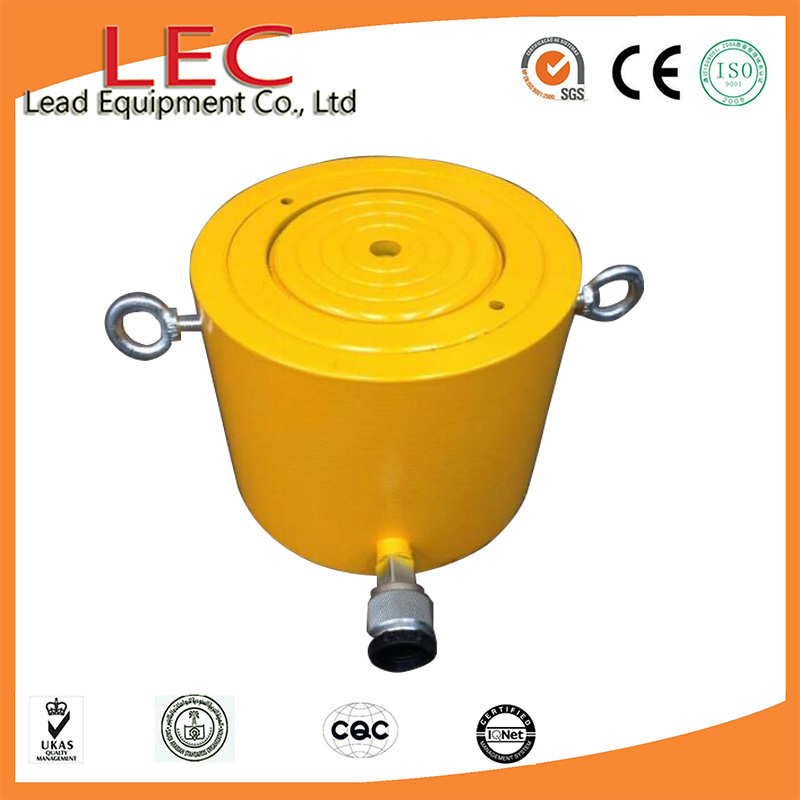

RC Single Acting Solid Hydraulic Cylinder

Name: RC Single Acting Solid Hydraulic Cylinder
Brand: china-manufacturer-directory.com
SKU: 705920212
Availability: InStock
Rating: 4.9 (77 reviews)

Price:	Negotiableset
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

RC Single Acting Solid Hydraulic Cylinder
1. Describe:
RC series of single acting hydraulic cylinder, it has safe safe protect pressurizer, built-in pressure relief valve in order to protecting over loading, and it is good for safe operate. All the model can be customized according to client's requirements. The hydraulic cylinder is main used for electric power, building, machine manufacturer, mining, subway, bridge and shipbuilding and kinds of industry for installing, lifting and tear down.

2. Features:
Single acting design, spring rebound.
Stoving varnish has more better anti-corrosion.
Dustband can reduce pollution, it can extend hydraulic cylinder's usage life.

3. Technology data:

Model	Tonnage T	Stroke mm	Own body height mm	Extend height mm	Efficiency area Of cylinder cm 2	Capacity of hydraulic oil cm 3	Outer diameter mm	Weight Kg
RC-50	5	16	41	57	6.4	10	55	1
RC-51		25	90	115	6.4	16	55	1
RC-53		76	145	221	6.4	49	55	1.5
RC-55		127	196	323	6.4	81	55	1.9
RC-57		178	253	431	6.4	114	55	2.4
RC-59		232	304	536	6.4	148	55	2.8
RC-101	10	25	80	105	14.4	36	60	1.8
RC-102		54	111	165	14.4	78	60	2.3
RC-104		105	161	266	14.4	151	60	3.3
RC-106		156	238	394	14.4	225	60	4.4
RC-108		203	288	491	14.4	292	60	5.4
RC-1010		257	339	596	14.4	370	60	6.4
RC-1012		305	390	695	14.4	439	60	6.8
RC-1014		356	441	797	14.4	513	60	8.2
RC-151	15	25	104	129	20.3	51	70	3.3
RC-152		51	129	180	20.3	104	70	4.1
RC-154		102	180	282	20.3	207	70	5
RC-156		152	252	404	20.3	309	70	6.8
RC-158		203	302	505	20.3	412	70	8.2
RC-1510		254	353	607	20.3	516	70	9.5
RC-1512		305	404	709	20.3	619	70	10.9
RC-1514		356	455	811	20.3	723	70	11.8
RC-251	25	25	120	145	33.2	83	90	5.9
RC-252		51	145	196	33.2	169	90	6.4
RC-254		102	196	298	33.2	339	90	8.2
RC-256		159	253	412	33.2	528	90	10
RC-258		210	304	514	33.2	697	90	12.3
RC-2510		260	355	615	33.2	863	90	14.1
RC-2512		311	405	716	33.2	1033	90	16.3
RC-2514		362	456	818	33.2	1202	90	17.1
RC-308	30	210	337	547	41.9	880	102	18.1
RC-502	50	51	136	19%	71.3	364	127	15
RC-504		102	19%	289	71.3	727	127	19.1
RC-506		159	243	402	71.3	1134	127	23.2
RC-5013		337	421	758	71.3	2403	127	37.7
RC-756	75	156	246	402	102.6	1601	160	29.5
RC-7513	75	334	452	786	102.6	3427	160	59
RC-1006	100	168	267	435	133.2	2238	180	59
RC-10010	100	260	359	619	133.2	3463	180	72.6

Prod Model:	RC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Jack Model:	RC Series
Tonnage:	5-100 Tons
Stroke:	Customized
Body Height:	Customized
Extend Height:	Stroke + Body Height
Outer Diameter:	Customized
Plunger Diameter:	Please Refer The Datasheet
Capacity Of Oil:	Please Refer The Datasheet
Pressure:	63MPa
Model Of Oil Pump:	as You Request
Material:	Stainless Steel
Structure:	Plunger Cylinder
Power:	Hydraulic
Standard:	Nonstandard
Pressure Direction:	Single-acting Cylinder

Zhengzhou Lead Equipment Co., Ltd. Short name LEC, is a manufacturer specialized in R&D, manufacture and sale of shotcrete machine, gunite machine, gunning machine, grout pump, hose pump, concrete pump, mortar pump, foam concrete machine and other machines.

Now we have developed full series of dry-mix shotcrete machine and wet-mix shotcrete machine, output from 1.5m3/hour to 30m3/hour, electric motor, diesel engine, air motor and gasoline engine are available options for customization.

Shotcrete machine is mainly used for dry-mix shotcrete and wet-mix shotcrete. It has some obvious advantage such as advanced technology, perfect structure, stable performance, convenient operation and long service life etc. It is widely employed in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.

From years of experience Lead Equipment Co., Ltd. Has developed its own R&D and technician teams, which supports further development and customized service for clients.

We control quality of industrial hose pump throughout the whole process strictly, and certified by ISO9001: 2008, CE and SGS.

LEC has been exported to U. S. A, Canada, Mexico, Sweden, Spain, India, Malaysia, Singapore, Philippines, Indonesia, UAE, Colombia, Bangladesh, Pakistan, Thailand, Ukraine, Nepal, Bahrain, South Africa, Madagascar, and Korea etc., and has sales dealer/distributor in Malaysia, Ukraine, and Nepal. LEC products advantage is high quality with competitive price and excellent after-sale service.
