Shenzhen Aoweishi Technology Co., Ltd. >> RC305+Ts353-14 5.8 GHz 200mw Wireless AV Transmitter Set

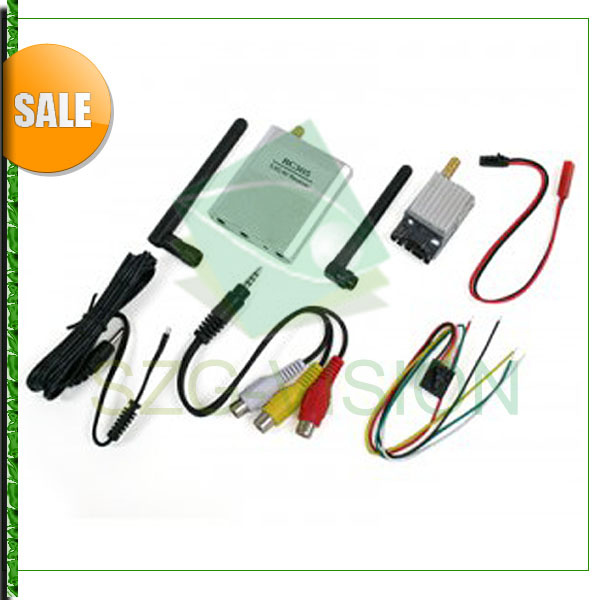

RC305+Ts353-14 5.8 GHz 200mw Wireless AV Transmitter Set

Name: RC305+Ts353-14 5.8 GHz 200mw Wireless AV Transmitter Set
Brand: China-Manufacturer-Directory.com
SKU: 715384095
Availability: InStock
Rating: 4.4 (114 reviews)

Supplier:	Shenzhen Aoweishi Technology Co., Ltd.
Price:	Negotiable/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	RC305+TS353
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Frequency:	5.8g
Channel Number:	8channel
Working Voltage:	6-28V
Working Current:	150mha
Operate Mode:	Channel Frequency Selection with Digitial Display
Unobstructive Effective Range:	Above 2000meters Open Area
Net Weight:	19g
Dimension(LWH):	552818mm
Meterail:	5.8g Tx Module with Heat Snik
Keyword:	a New Fpv Dimension for Your Hobby

Product Description

5.8Ghz 200mW transmitter. This system is Good for up to 500m flying with the supplied antenna. An optional directional antenna can extend range to 1km+. This unit Includes built-in microphone. The receiver unit has additional AV outputs for video recording while using FPV goggles.

Specifications:

Output impedance: 50Ohm
Output power: 21~23dBm
Channel frequency 1~8: 5705/5685/5665/5645/5885/5905/5925/5945mhz.
Transmitter operating voltage: 7~15VDC / 150mA
Receiver operating voltage: 5VDC
Operating temp: -10~85C
Video bandwidth: 0~8.0MHz
Audio frequency: 6.5MHz
Video input level: 0.8~1.2Vp-p
Video input impedance: 75Ohm
Audio input level: 0.5~2.0Vp-p
Audio input impedance: 10K/Ohm
Weight: 25g
Antenna connector: SMA
Dimensions: 55x26x17mm

Quick Details:
Product Name				FPV 5.8G 400MW wireless av tranmsitter
Model Number				TX5804
Brand Name				Flysight
Place of Origin				ShenZhen		China
Min. Order Quantity				50		Negotiable acceptable
Payment Terms				T/T , Western Uniton, Paypal
Supply Ability				3000set half month
Delivery time				8000set in stock eavery month
Unique Feature:
1	With Channel button to change channels easily
2	Display channel number
3	Channel memory function for power-off
Frequency groups:
CH.		Flysight A		Flysight B	Flysight E		Airwave	Reminding
Ch1:		5865Mhz		5733Mhz	5705Mhz		5740Mhz	Four groups frequencies can be offered (3rd groups as default)
Ch2:		5845Mhz		5752Mhz	5685Mhz		5760Mhz
Ch3:		5825Mhz		5771Mhz	5665Mhz		5780Mhz
Ch4:		5805Mhz		5790Mhz	5645Mhz		5880Mhz
Ch5:		5785Mhz		5809Mhz	5885Mhz		5820Mhz
Ch6:		5765Mhz		5828Mhz	5905Mhz		5840Mhz
Ch7:		5745Mhz		5847Mhz	5925Mhz		5860Mhz
Ch8:		5725Mhz		5866Mhz	5945Mhz		5860Mhz
A quick guance:
Frequency				5.8G
Channel Number				8channel
Working Voltage				6-28V
Working Current				150mHA
Operate mode				Channel Frequency selection with digitial display
Unobstructive Effective Range				Above 4000meters open area
Net Weight				16g
Dimension(LWH)				552818mm
Meterail				5.8G Tx module with heat snik
Keyword				A new FPV dimension for your hobby
Detailed Description-Tx:
Transmitter
Model				TX5804
Transmitter Frequency				5665-5945Mhz
Transmitting Power				400mW,27dBi
Transmitting Distance				Above 4000m in open area
Frequency Control				Built-in Frequency and with channel button to change channels easily
Output Frequency				5.8Ghz
Channel Number				8Channel optional
Working Voltage				6-28V
Working Current				60mHA
Net Weight				35g
Dimension(LWH)				552818mm
Purchase Includes:
5.8G transmitter				x 1
5.8G rubber antenna				x 1
RCA cable				x 1
Pin cable				x 2
Other products recommended:
TX58025			5.8G 25MW wireless Pushbutton TX
TX5802			5.8G 200MW wireless Pushbutton TX
TX5812			5.8G 1200MW wireless Pushbutton TX
TX5820			5.8G 2000MW wireless Pushbutton TX
