RCCB, RCBO, ID Breaker, MCCB, Mini Circuit Breaker, Circuit Breaker, Switch, Contactor, Relay
| Price: |
US $ 4.60/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union |

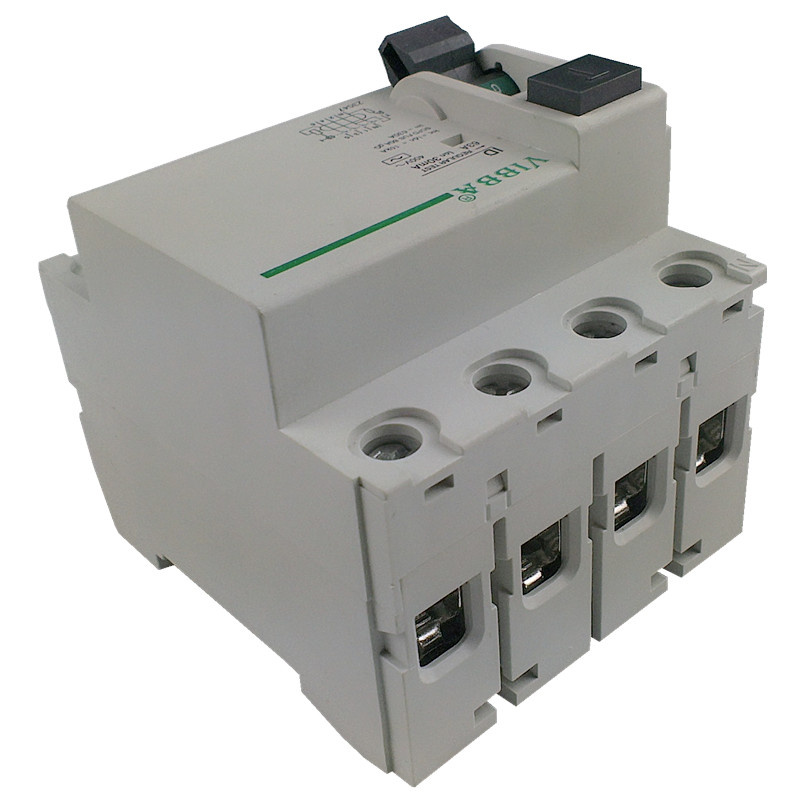

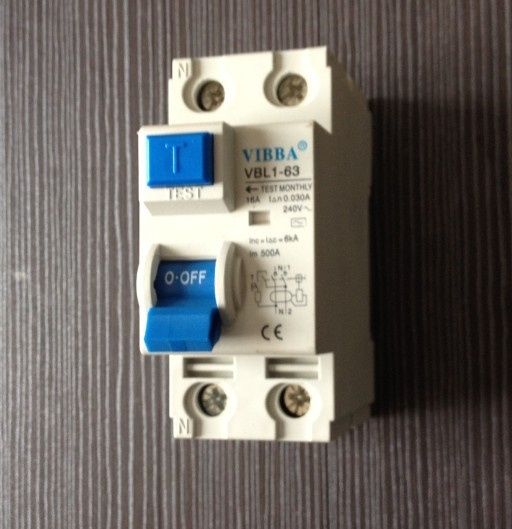

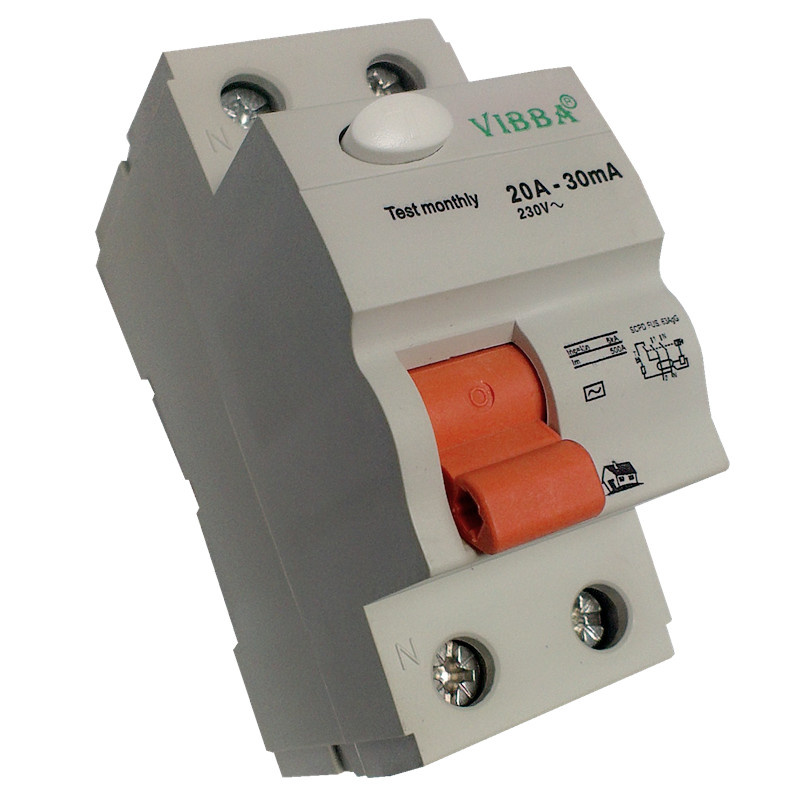

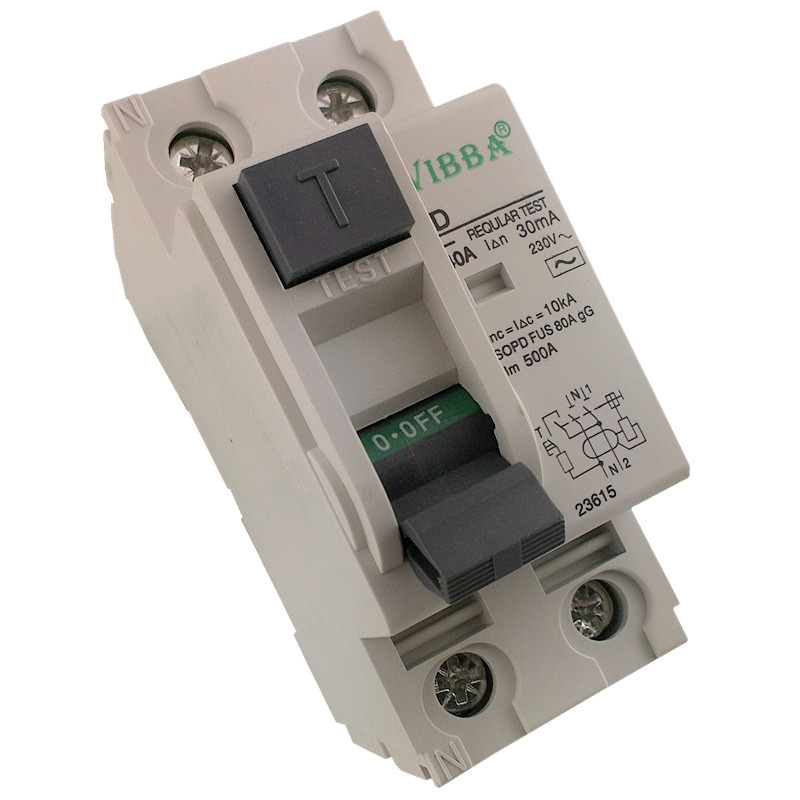

ID RCCB is suitable for the line of AC 50/60Hz, voltage 240V(2pole)/415V(4pole), rated current up to 63A. When there is human electricity shock or if the leakage current of the line exceeds the prescribed value, it will cut off the power rapidly to protect human safety and prevent the accident due to the current leakage. It can be used as infrequent changeover of the line in normal situation. It is applicable to industrial site, commercial site, tall building and civil house.
It complies with standard of IEC/EN61008.1 and GB16916.1-2003.
Each phase of conductor at the circuit breaker passes through the zero-sequence current transformer, and the secondary side of coil connects with the electromagnetic tripper. Under normal condition, the vector sum of each phase of current passing through zero-sequence current transformer is zero. The flux of the zero-sequence current transformer is zero. And the secondary output voltage is zero and the circuit breaker doesn't zreo, and the zero-sequence current transformer would produce the magnetic flux, and the secondary side of coil would output the voltage. Once the leak current increases to drive the output voltage at the secondary side to grow to certain level, the electromagnetic release would activate to drive the operation mechanism to act to break the contact that connects the power, finally to realize the leak protection.
Frame63A
Rated working voltage240/415V
Rated frequency50/60Hz
Rated working current16, 20, 25, 32, 40, 50, 63A
Rated residual operating current0.03, 0.1, 0.3, 0.5A
Rated residual un-operating current0.015, 0.05, 0.15, 0.25A
SensibilityA Type, AC Type
Maximum operating timeIΔ N t≤ 0.1s, 5IΔ N t≤ 0.04
Rated making and breaking capacityIn≤ 50A 500A, In=63A 630A
Limiting value of un-operating current6In
Rated limiting short-circuit current3000A
Pole number2, 4P
Mechanical life10000
Type and
Specification | Rated
Current | Rated
Voltage | Rated
Operating
Current | Residual
Operating
Current range | Rated conditional
Short circuit
Current | Mechanical
life |
| ID | 2 Poles | 16A
25A
32A
40A
63A | AC 240V | 0.03A
0.1A
0.3A
0.5A | 0.5I Δ n~ I Δ n | 3000A to 6000A | 10000 |
| ID | 4 Poles | 16A
25A
32A
40A
63A | AC 415V | 0.03A
0.1A
0.3A
0.5A | 0.5I Δ n~ I Δ n | 3000A to 6000A | 10000 |
About US: Yueqing Vebo international Co.,Ltd specializing in the R&D, manufacture and sale of low voltage electric applicants, such as MCB, MCCB, RCCB, Indicators,AC contactors and other related products. Our factory, with the aim of high quality and low price, offers superior OEM services, and has accumulated abundant experience in manufacturing low voltage.1.We already get the certificate of ISO9001, CE, SGS. 2.We have 5 years of manufacture and exporting experience.3.We have completely sales service system, ensure every detail is going smooth. 4.We have new designed products each year by our R&D Department. 5.Perfect testing system ensure each product is qualified. 6.We have a good reputation in India, Pakistan, Bengal, Thailand, south American,Mid-east market and so on. How to Order? 1. Please let us know what kind of model, color, poles and rated current etc. 2. Proforma invoice (PI) will be sent to you. 3. Please check and confirm the PI. 4. Once we confirmed the order, please pay it soon. 5. After full payment, all goods will be sent to you in 3-5 days as usual. 6. OEM/ODM is welcomed. Free OEM for more than 5000 sets orders. Shipping: 1. Products are shipped via UPS / DHL / EMS / HK EMS / FedEx / TNT and so on expresses (door to door). 2. We Provide Drop shipping Service. 3.5 days delivery upon receiving payment if the qty is lower than 1000PCS and it is not customized products. 4. In order to ensure you receive your order tax free upon import, we declare lower value. 5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country. Payment: 1. We accept Western Union and T/T2.30% deposit and 70% before shipping 3. No payment collection. We only can deliver goods after getting full payment.Warranty: 1.We provide 1 year warranty.2. If the product is defective, please notify us within 3 days of delivery. 3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
| Prod Model: |
ID |
| Markets: |
South America,Eastern Europe,Africa,Mid East,Eastern Asia |
| Low Price: |
Good Quality |
| Arc-extinguishing Medium: |
Air |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Certification: |
CE |
| Operation: |
Manual Type |
| Installation: |
Fixed |
| Speed: |
High-Speed Circuit Breaker |
| Structure: |
Moulded Case Circuit Breaker |
| Type: |
Circuit Breaker |
| Function: |
RCCB |
