Product Specifications
Prod Model: |
DF-96005102 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brightness: |
400(CD/M2) |
Free Viewing Angle: |
120 Degree |
Waterproof Level: |
IP69k |
Shockproof: |
10g |
Type: |
Monitoring System |
Application: |
All-Round Monitoring |
Feature: |
High Definition |
Video Capture System: |
Video Camera |
Software Function: |
Monitoring |
Software Usage: |
Vehicle Monitoring Software |
Model: |
CCTV |
Sensor: |
CCD |
Horizontal Resolution: |
420tvl |
Kind: |
Fix |
Technology: |
Wired System |
Product Description

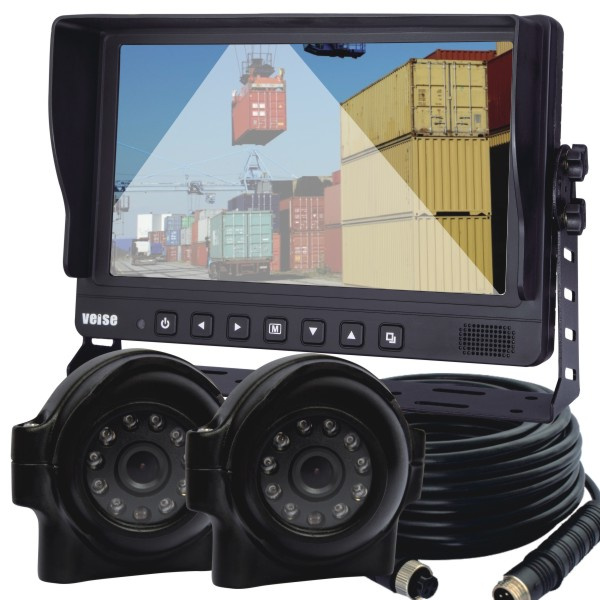

Rear view safety system with reversing kits for various heavy duty vehicles(DF-96005102)
Rear View System for Bus, Truck, HVG, Port Crane, Airport vehicle, Farm Tractor, Heavy Equipment, Municipal Vehicle
9" Digital Screen TFT LCD Monitor Free Operating Voltage DC11-32V, DC14+87V(Td400mS) 5pulses Load Dump, 400CD/m2 Brightness
Application USA Techwell Automotive Digital Video Processor, OSD Menu Separately Set Each Camera Mirror/Normal image, Trigger Priority of Camera1 image Display, Reversing Image Delay Time 0-30"
Dual Aluminum Shell Side Camera Always Positioned Correctly, No Matter What The Location, IP69K Waterproof and 10G Vibrationfo, 10pcsIR LED's for Picture Support in the Dark
Rear View Color Monitor(Model:SP-960) 9"Digital Screen TFT LCD Color Monitor with Sun Visor OSD MENU Separately Set Each Camera Trigger Priority OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30s OSD MENU Separately Set Each Camera Mirror/Normal image Manual and Automatic Switch Display Mode Color System:PAL/NTSC (AUTO) Display Resolution: 800RGB(H) X 480(V) dot Accepts up to 2 Cameras Video Inputs:1.0Vp-p75Ω Wide view angle(CR:10):(up/ down): 45/65 (left/right): 65/65 Brightness (cd/m2): 400 Contrast ratio: 500:1 Back-light : Single LED Operating temperature: -20ºC to +70ºC Storage temperature: -30ºC to +80ºC Load Dump: DC14+87V(Td400mS) 5pulses Free Operating Voltage DC11-32V External dimensions: (L x W x T) (234 x158 x 81mm) with mounting Sun Visor Weight Approx: 479g |
Aluminum Shell Side Waterproof IR Color Camera(MODEL:DF-8053*2) Image Type: 1/3 inch Color CCD Horizontal Resolution:700TV Lines Effective pixel:NTSC:976(H)×494(V) PAL:976(H)x582(V) Usable Illumination : 0Lux ( Built in 10pcs IR LED's for Picture Support in the Dark) Free viewing angle: 130° Waterproof: IP69K Shockproof: 10G Video Output:1.0Vp-p75Ω Power supply:DC12V (from Reversing Monitor) Dimensions: 55(L) x 63(W) x 74(H)mm Product Accessories U- Support Bracket,Angle Adjustment Screw,Electrical Connecting Cable,15m cable*2, Auto cigarette lighter,User's Manual |
Veise (Guang Zhou) Electronics Co., Ltd. is a high-tech enterprise engaging in the R&D, selling and manufacturing of vehicle rear view monitor camera system, mobile DVR quad back up system, farm CCTV systems for car, heavy truck, trailer, SUV, farm tractor, forklift, compactor vehicle, street sweeper, mobile home, passenger bus and mining vehicle.
Since 1997, our company insists on developing innovative vehicles vision safety system for both workers and vehicles, such as can not only eradicate blind spots night-vision equipped cameras but also improve workplace safety, minimize vehicle damage, human injuries and fatalities. Independent research and development of the world's first infrared night vision waterproof camera, digital screen monitor with removable sun visor, DVR quad monitor, wireless camera monitor backup System and more.
Our company are passed the requirement from quality management system for production, such as ISO/TS16949: 2009 Advanced Product Quality Planning (APQP), Design Failure Mode and Effects Analysis(DFMEA), Process Failure Mode and Effects Analysis(PFMEA), Measurement System Analysis(MAS), Statistical Process Control(SPC), Production Part Approval Process(PPAP) to design a production approach, effectively improve the quality of company management capability and product quality.
Applying the energy-saving Low power techniques and industrial grade material quality standard, the company design all the mechanical parts pre-verification through 3D simulation minimiz mechanical and assembling errors, and protect from water and vibration. Our Producing capacity of the rear view backup camera system is: 30000 sets monitors, 40000 sets cameras per month of SMT components and simplify the process. Can provide professional OEM, ODM service.
Our company has introducted advanced production facilities and reliable test equipment: Anti load dump, Waterproof, Vibration testing instrument, Environment temperature, Salt fog detection apparatus ets, VEISE monitor camera system complies with ISO-7637-2.
Our rear view Monitor and camera has design patent, model patent. And get the MA, IP69K, EMC, FCC, RoHS, E-MARK. Without special requirements the lead-time is 2-4 weeks and warranty for 2 years.
