Product Specifications
Prod Model: |
MO-144D, CW-676 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Color: |
Black |
Type: |
Monitoring System |
Application: |
Sentinel Surveillance |
Feature: |
Vandal-proof |
Sensor: |
CCD |
Horizontal Resolution: |
420tvl |
Product Description

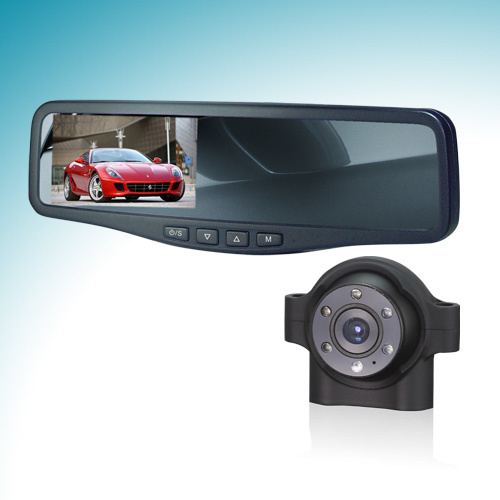

Rear View System with 4.3 Inch Mirror Monitor and backup camera (MO-144D, CW-676) Features:
Backup Camera (CW-676)
Waterproof IP69K
Compact profile
Waterproof and vandalproof
Convenient angle adjustment
Infrared LED light: 5
IR Distance: 5 m
High resolution
Can be mounted on rear, front, or either side of vehicle
1 / 3" COLOR CCD SENSOR SPECIFICATIONS
Image Device: 1/3" SHARP CCD
TV System: PAL: 25f/s NTSC: 30f/s
Effective Pixels: 512 x 582 pixels / 512 x 492 pixels
Sensing Area: 4.9 mm x 3.7mm
Scanning System: 2: 1 Interlace
Sync. System: Internal
Resolution: 420TV lines
Minimum Illumination: 0.1 Lux (day), 0 Lux (with IR)
Video Output: 1.0vp-p, 75Ohm
Microphone: Yes
Gamma Consumption: 0.45
AGC: Auto
S/N Ratio: Better than 48dB
White Balance: Auto
Electronic Shutter: 1/60(NTSC) / 1/50(PAL) ~ 1/100, 000 Second
BLC: Auto
Current Consumption: Max. 150mA
Power Supply: DC12V
Operating Temperature: -20 ~ +60, RH95% MAX
Storage Temperature: -30~+80 RH95% MAX
Lens Angle: 150°
4.3 Inch Mirror Monitor (MO-144D)
Mounting position: Inner side of vehicle windshield (rear mirror position of vehicles)
Mirror viewing angle: Rear viewing angle adjustable
Shatterproof standard: 2.84G
Working condition: Performs in rugged conditions; Operating temperature: -20º C~+70º C
Distance label can be turned on or off, and can be adjusted up and down.
Backlighting for buttons: Automatic backlighting in dim light.
Backlighting for screen: Automatic backlighting when in dim light longer than 5s (Lighting brightness can be set up and
Saved)
Power supply for camera, easy installation.
Wide voltage input: Support 12V and 24V system
Main chip: MST703.
TV system: PAL/NTSC/AUTO
Language system: 8 languages selectable
Video input: 2 video inputs and power supply for camera
Distance label: Can be adjusted up and down
Auto trigger: 2 camera trigger wires, once triggered, automatically switches to its corresponding camera
Frame ratio: 16: 9
DOT pitch: 0.198(H)× 0.198(V)
Resolution: 480(H)× 272(V)
Brightness: 500 CD/m2
Contrast: 600: 1
Viewing angle: U: 60° , D: 70° , L/R: 75°
Power consumption: 3W
Power supply: DC12-32V
Operating temperature: -20º C~+70º C
Storage temperature: -40º C~+80º C
