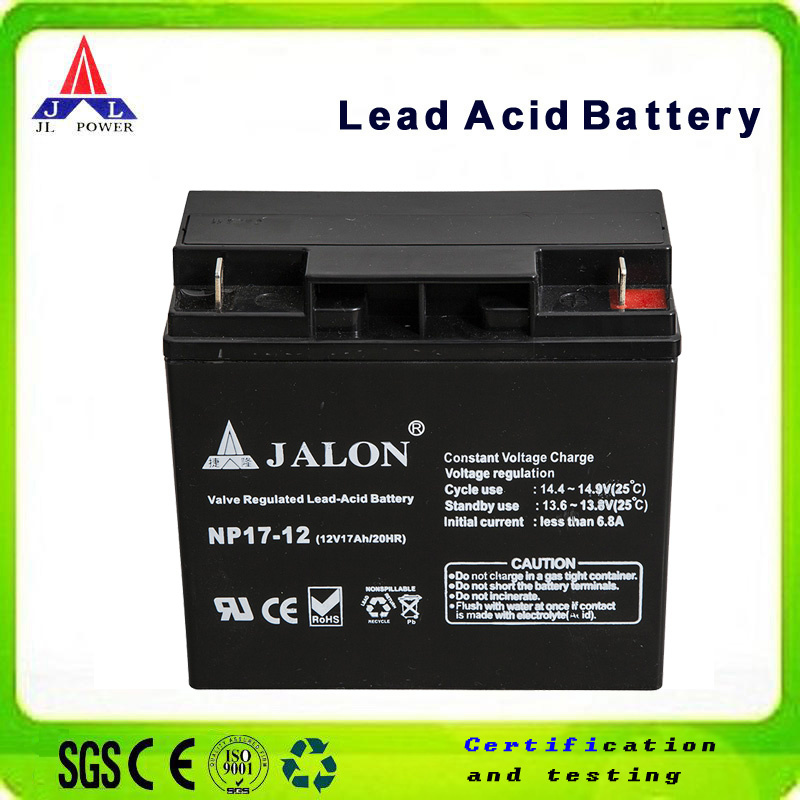

Rechargeable Deep Cycle UPS Battery for UPS system(12V17ah)
Model: NP17-12
Size: 181*76*166mm
Weight :5.3 kg
Color :black
Delivery time :10-15 days
Packing detail: 4PCS/CTN
Warranty: 1 years
Designed Service life: 5-7 years
Brand: JALON,eFox, OEM Acceptable
Certificate: CE, ISO, SGS, UL
Features
- Sealed and maintenance free operation
- Deep cycle long life design
- Safety valve installation for explosion proof.
- High quality and high reliability.
- Deep discharge recovery performance.
- Low self discharge characteristic.
- Good Renewal Ability after Deep Discharge
- Safe and non-spillable
- High Recharging Efficing
Application
- Solar System
- UPS System
- Wind sytem
- Cable Television, toy
- Communication Equipment
- LED light
- Emergency Power System
- Telecommunication equipment system
- Emergency lighting
- Security system
1)We are manufacturer who specialized in battery for 15 years in Guangzhou, China.
2)With the strenght of excellent quality and pretty competitive price.
3)Your own logo/special size can be made as your require.
4)We would always give you the best service.
| SPECIFICATIONS |
| Nominal Voltage | 12 V |
| Rated Capacity (10 hour rate) | 17AH |
Dimensions
(Length*Width*Height)/mm | 181*76*166mm |
| Weight Approx | 5.3 kg |
|
| CHARACTERIESTICS |
| Internal Resistance | Fully charged battery at 25° C | 8 mΩ |
Capacity affected by temperature
(20 hour rate) | 40° C
25° C
0° C
-15° C | 102%
100%
85%
65% |
Self-Discharge
At 25° C | Capacity after 3 month storage
Capacity after 6 month storage
Capacity after 12 month storage | 91%
82%
64% |
| Terminal Type | T9 or T16 |
Charge
(Constant Voltage) | Cycle use | Initial Charging Current less than 16 A
Voltage 14.40~15.00V |
| Float use | Voltage 13.50~13.80V |
|
|
|
|
