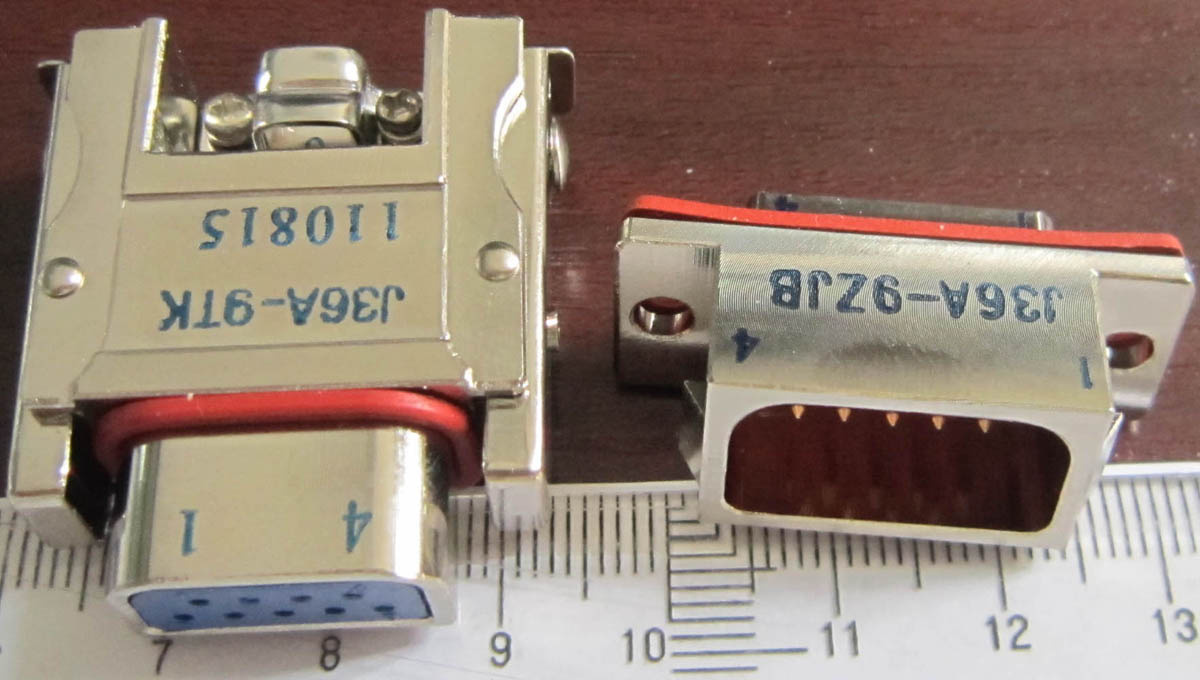

Rectangular Connectors (J36A-9)
Product Specifications
| Prod Model: |
J36A-9 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Military Connectors: |
J36A Series Connectors |
| Type: |
Rectangular Connector |
| Application: |
Microwave |
Product Description
J36A series of products for the low-frequency electrical connectors, J36M to low magnetic type, with GJB142A-94 standard, double-locking structure insurance, fillet Prevention Chap design, termination of welding, is small in size, light weight characteristics, widely used in strategic weapons systems, NASA satellite systems,
Elctronic instruments, meters and the connecting cables.
1, Mainly technical performance
1, Mechanical properties
Shell: High strength aluminum alloy,
Insulator: Heat-resistant thermo plastic materials
Shell plating: Electrolee nickel
Contacts: Copper alloy, gold plated
Rubber pieces: Silicone rubber materials
Mechanical life: 500 cycles
Electronics supplier, China factory, connector manufacturer, plug supplier, Hangzhou Kaipu Connector Electronic Co., Ltd. is a company specializing in manufacture of circular connectors and rectangular connectors of high quality. We design and make water proof connectors, power plugs, electrical connectors.
ISO9001: 2008, Registration Number: 04005Q11376R0S.
Our products of connectors:
1. Circular series AISG, Y2, Y2M, Y3, Y4, Y4M, Y5, Y5A, Y11, Y27, Y50E(MIL-C-26482), PTB, YP21, YP28, YP36, YP50, JL5, JL16, JL33, FQ(IP67), FQ14, FQ18, FQ24, FQ30, FX16, FQN14, FQN18, FQN24,
FQN, FQC, FQX(IP68), kp11(IP67), kp22(IP68), KP32(C16), P20, P28, P32, P36, P40, P48, P55, P60, YD20, YD28, YD32, YD40, YD48, YD55, X, Q14, Q18, Q24, Q30, TY20, TY32, TY48, LYP, XC (similar as MIL-38999), 2PM, 2CX, CX, PC-4TB, PC-7TB, PC-10TB, PC-19TB, PC-32TB, PC etc.
2. Rectangular connector series B, C, F etc meet DIN41612, J7, J7A, J14A, J14B, J14D, J15, J36A.
