Rectifier Transformer, Induction Furnace Transformer
Product Specifications
| Prod Model: |
ZPS Rectifier transformer, furnace transformer |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transofmer Capacity: |
200kVA to 10000kVA |
| Color: |
Blue or Grey |
| Application: |
Rectifier |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Brand: |
Zhongya Tebian |
Product Description
1. Product Name: Rectifier Transformer, induction furnace transformer

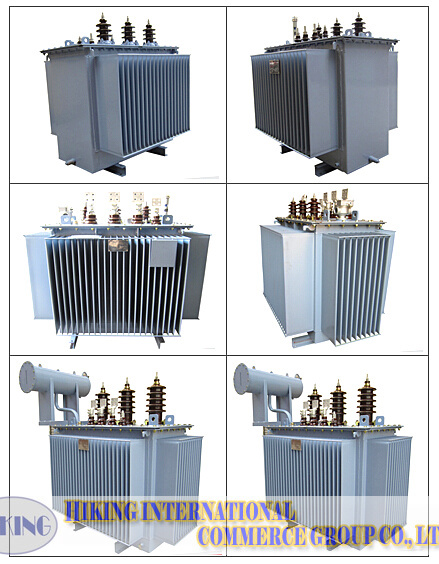

2. Model: ZPS Transformer, 200KVA-10000KVA3. Usage: Used for induction furnace, transfer high voltage in to medium frequency voltage input, such as 10 KV transfers into 380V, or 660V, 750V. 4. Equipment photos for reference:
5. Technical Specifications:| Model | 2000KVA 6.3KV/0.66 |
| Rated capacity | 2000KVA |
| Input voltage(KV) | 6.3KV |
| Output voltage(KV) | 0.66KV |
| Frequency | 50Hz |
| Phase | 3 phase |
| High voltage tapping voltage | ±5% |
| Connection symbol | Yyn0 |
| Cooling agent | K(NAN) |
| Di-electric | silicon oil |
| Load loss(KW) | 17.8 |
| No-load loss(KW) | 2.53 |
| Non-load current(%) | 0.5 |
| Oil weight | 870 |
| Total weight | 4350 |
| Dimension(LxHxW)(mm) | 2100*1630*1940 |
| Installation size(mm) | 900*820 |
| Packing | Plywood case 2110*1690*2230 |
6. Equipment Package: Plastic film protection OR plywood box. ![]()
7. Equipment Delivery: By sea container, train container, or by trucks.![]()

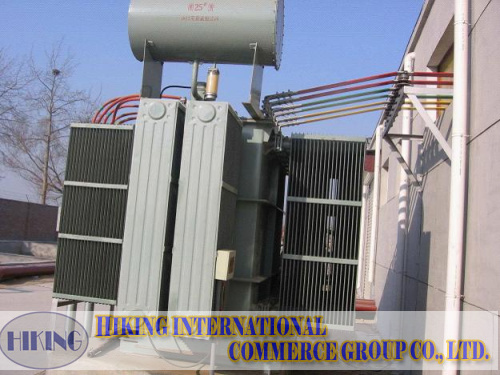

8. Equipment Working Site:![]()
9. Aftersales Service:1.Paper documents:We offer all related schemes for building furnace foundation, furnace installation, cables connections, pipes connections.2.Installation and commissioning: We offer engineers for assistant of equipment installation and commissioning.3.Spare parts support:We support all spare parts in time when there is need for all the time after sales. 10. Trade Terms:1. Delivery Port: Qingdao; 2. Delivery Time: 30/45/60/80 days to Qingdao Port; Shipment: 20GP/40GP/40HC/40OT/Flat Rack Container3. Payment Term: 100% T/T in advance (30% Deposit for arranging producing, and balance rest 70% before shipment);4.Quality Guarantee: 1 year.
![]()
Shandong Hiking International Commerce Group Co., Ltd. is professional supplier of industry metallurgy equipment, and exported for years.
Our main products are as followings:
1. Industry Resistance Heat Treatment Furnace (Quenching furnace, hardending furnace, annealing furnace, heat treatment furnace)
1.1 Boggie Resistance Furnace
1.2 Box Type Resistance Furnace
1.3 Experiment Heating Furnace
1.4 Pit Furnace(Nitriding furnace, carburizing furnace, carbonitriding furnace)
1.5 Induction Heating Furnace
2. Melting Furnace (Melt iron, steel, stainless steel, copper, brass, aluminum, silver, gold, etc)
3.1 Induction Melting Furnace (Reducer tilting induction furnace; Hydraulic tilting induction furnace)
3.2 Resistance Melting Furnace
3.3 Gas Heat Melting Furnace
4. Casting Machinery
4.1 Copper Bar Casting
4.2 Sand Mixer
4.3 Molding Machine
4.4 Core Shooter
5. Water Cooling Tower
5.1 Closed Type Cooling Tower
5.2 Open Type Cooling Tower
5.3 Heat Exchanger
6. Dedusting Equipment
7. Ladle
8. Transformer
9. Spare Parts
MPU-2FK Main Board, MPU-6FK control board, MPU-8FK Circuit board, capacitor, thyristor, SCR, resistor, pulse transformer, temperature tester, Water cooled cable, induction coil.
Our equipment is distributed all over 50 countries, welcome to our company with inquiry telephone or email for business cooperation.
