Product Specifications
| Prod Model: |
ZSSG11-10000/10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Multi-winding Transformer |
| Application: |
Rectifier |
Product Description
Recfier Transformer
30-500 capacity regulating transformer
30-500 serials three phase double winding capacity regulating transformers with off-circuit tap changer
single phase recifier transformer
three phase recifier transformer
Pls indicate the followings while ordering:
1:Rated capacity
2:Rated voltage of high and low voltage
3.connection symbol
4.impedance voltage
5.tapping range
6.rated frequency
7.other special requirement
Ratedpower
(kVA) | 9 loss (W) | Ratedpower
(kVA) | 9 loss (W) | No-load Loss(%) | Impedence Voltage(%) | | No-Load Loss | Load Loss | No-Load Loss | Load Loss | | 30(10) | 6
6.3
10
10.5
11
±5% | 0.4 | Dyn11(Yyn0) | 130(60) | 630(260) | 2.3(1.2) | 4 | | 50(20) | 170(95) | 915(450) | 2.0(1.0) | | 63(20) | 200(95) | 1090(450) | 1.9(1.0) | | 80(30) | 250(130) | 1310(600) | 1.9(1.0) | | 100(30) | 290(130) | 1580(600) | 1.8(0.9) | | 125(40) | 340(160) | 1890(750) | 1.7(0.9) | | 160(50) | 400(170) | 2310(870) | 1.6(0.8) | | 200(63) | 480(200) | 2730(1040) | 1.5(0.7) | | 250(80) | 560(250) | 3200(1250) | 1.4(0.7) | | 315(100) | 670(290) | 3830(1500) | 1.4(0.7) | | 400(125) | 800(340) | 4520(1800) | 1.3(0.6) | | 500(160) | 960(400) | 5410(2200) | 1.2(0.6) |
|
|
|
Our products
Our products enjoy good performance and high quality, best-selling home and abroad. The company's quality requirements are:"boyuan Special Type Transformer seeks for greater perfection". Our brand culture is to create boyuan brand and revitalize national industry. We always believe by virtue of our product quality
Rectifier transformer
Rectifier transformer is the most widely used power supply equipment. It is mainly used in electrochemistry,metallurgical electrolysis,DC drive,medium-frequency power supply and electric heating crystallization of silicon carbide and other occasions.
Traction,drag system rectifier transformer
The transformer is designed and manufactured according to the characteristics of DC motor working method, is the special transformer which has certain requirements on the reliability.
Features:
1.Low loss,Low noise
2.Energy saving products
3. High efficiency
4.Operation Stable
5.Easy to operate
Picture of the product:
Pictures of our workshop:
CE certification

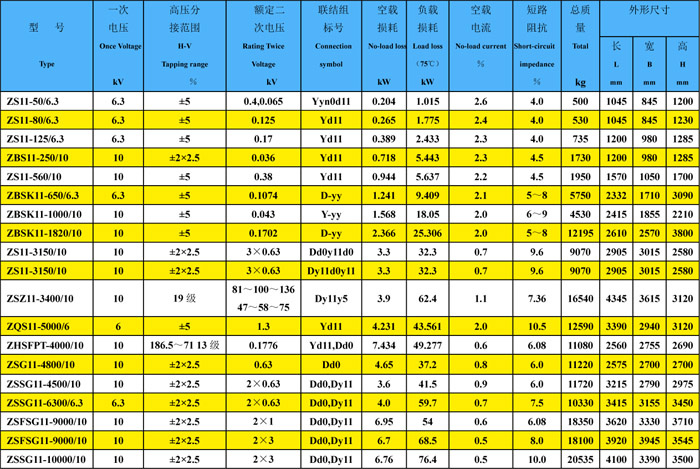

| Model NO. | Network
Voltage(KV) | DC power supply parameters and characteristics | Connection group symbol | Weight of product(kg) | Overall size(mm)
L*W*H/lifting height |
| Rectifier mode | No-load voltage (V) | Work
Current (A) | Equivalent phase | body | oil | Total |
| ZQS-400/10 | 10 | 3phase bridge type | 150-400 | 1000 | 6 | D/d0 | 1000 | 350 | 1700 | 1800*1250*1600/3500 |
| ZQS-630/10 | 10 | 300-630 | 700 | 6 | D/d0 | 1100 | 600 | 2100 | 1900*1300*1650/3500 |
| ZQS-800/10 | 10 | 300-660 | 900 | 6 | D/d0 | 1800 | 900 | 3300 | 1920*1830*2000/4000 |
| ZQS-1000/10 | 10 | 330-660 | 1450 | 6 | D/d0 | 2100 | 1000 | 4000 | 2141*1850*2500/4000 |
| ZSS-1250/10 | 10 | Double three-phase bridge | 780 | 1500 | 12 | D/d0-y11 | 2200 | 1650 | 4800 | 2150*2000*3000/4500 |
| ZSS-1800/10 | 10 | 780 | 2200 | 12 | D/d0-y11 | 2600 | 2100 | 5600 | 2250*2300*3100/4500 |
| ZSS-2500/10 | 10 | 780 | 2950 | 12 | D/d0-y11 | 3700 | 2200 | 7250 | 2500*2200*2970/4000 |
| ZSS-3150/10 | 10 | 710 | 4250 | 12 | D/d0-y11 | 4300 | 2500 | 9000 | 2500*2300*2900/4000 |
| ZSS-3600/10 | 10 | 710 | 4860 | 12 | Y/d11-y0 | 5000 | 2650 | 10500 | 2500*2300*2900/4500 |
| ZSS-4500/10 | 10 | 780 | 5500 | 12 | D/d0-y11 | 5800 | 3000 | 11800 | 2800*2400*3300/4500 |
| ZSS-5000/35 | 35 | 780 | 6100 | 12 | D/d0-y11 | 7000 | 3300 | 12500 | 2900*2500*3300/4500 |
| ZSS-12500/35 | 35 | 1050 | 10885 | 12 | Y/d11-y0 | 13000 | 5500 | 21800 | 3500*2600*3500/5500
|
Ningbo Ville Electric Co., Ltd. is a company specialized in research, development and production of transformer and high voltage & low voltage electrical power equipment.
It locates in Hi-technical enterprise R & D center zone of Ningbo, Zhejiang province, which is one of the well-know coastal city in China. Its professional engaged in turnkey project contractor of power substation, power plant project and electric power complete equipments.
Working field: Manufacturing, engineering, designing, executing and commissioning for HV and LV electrical products.
Products application:
Power-fossil fuel plant, Steel plant, Infrastructure- railway, international generation, substation, hydropower station, wind power substation, transmission and distribution.
We has excellent experience and good capacity in complete projects equipments in Generation, Substation, Transmission and Distribution from 400V-330kv, especially in Power plant, Substation construction and Transmission line, including of design, complete equipment, installation, Commissioningand after-sales service, and also design the complete Electrical Solutions according to customer's demand. We are mainly services to International State Power Board, Power Construction Contractor, Power Project Contractor, Factories and the Electric Power Project in the world.
In order to achieve the enterprise's strategic target---being stronger, larger, and superior, we continue to expand throughout the world's markets for power transmission and distribution area. And we also actively attach our team to competition, walking forward to the mission of "First-class worldwide electrical equipment supplier"
