Product Specifications
| Prod Model: |
6GT-1200, 1500, 2200, 2400, 2800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Item: |
Chip Drying Machine |
| Feeding Moisture: |
35-55% |
| Final Moisture: |
10-15%, Adjustable |
| Usage: |
Biomass Fuel Production, Pellets and Briquettes |
| Fuel: |
Coal, Waste Wood, Barks, Wastepellet and Briquett |
| Operational Method: |
Continuous |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Vacuum Dryer |
| Movement Way: |
Combined |
| Heating Mode: |
Transmission |
| Appearance Of Dried Sample: |
Wood Chips, or Wood Dust |
Product Description

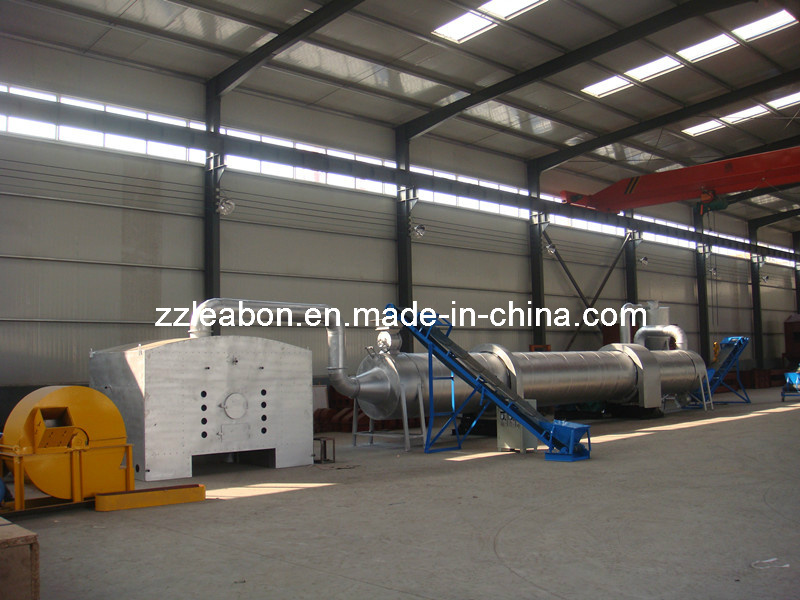

The rotary dryer is composed of stove, main rotary body,
Screw conveyor, cyclone separator, air-lock, fan and matched pipes which can realize to reduce the moisture from 60%-10%
The heat generator combined fan is not included in our quotation, the moisture evaporating capacity of our rotary drum dryer from 250kg per hour to 3000kg per hour.
Component: Air heater with heat-exchanger, rotary-cylinder dryer, centrifugal shedder
Scope: Wet materials
Features:
1. Air heating system is able to allow highly efficient removal of water from fresh harvested forage, and the maximum durability of dehydrated forage.
2. Non-pollution to the target materials guarantees minimal loss of their color, favor, and nutritional ingredients;
3. Smoke collector working with the air heating system adopts water-recycled wet-type collecting method, and ensures the exhausted gas to satisfy the environmental protection requirement as well as the lowest water consumption.
4. Main data
Capacity of Roll: 2 CBM to 60CBM.
Fuel: Wood, LPG, Diesel oil, etc.
Data for the dryer
Type
|
Spec |
Dia of
roll |
Length
of roll |
Gradient |
Speed
(rpm) |
Weight
(t) |
Power
(kw) |
Cubage (M3) |
|
6GT600 |
φ 0.6× 8 |
φ 600 |
8m |
3-5 |
8 |
5.1 |
4/6p |
2.26 |
|
6GT800 |
φ 0.8× 10 |
φ 800 |
10 m |
3-5 |
7.2 |
6.9 |
4/6p |
5.02 |
|
6GT1000 |
φ 1.0× 10 |
φ 1000 |
10m |
3-5 |
6.73 |
7.5 |
5.5/6p |
7.85 |
|
6GT1200 |
φ 1.2× 12 |
φ 1200 |
12m |
3-5 |
5.8 |
13.1 |
11/6p |
13.31 |
|
6GT1500 |
φ 1.5× 12 |
φ 1500 |
12m |
3-5 |
4.8 |
22.3 |
15/6p |
21.2 |
|
6GT2200 |
φ 2.2× 14 |
φ 2200 |
14m |
3-5 |
3.2 |
52.8 |
30 |
53.22 |
|
6GT2400 |
φ 2.4× 18 |
φ 2400 |
18m |
3-5 |
3 |
73.3 |
37 |
81.43 |
|
6GT2800 |
φ 2.8× 24 |
φ 2800 |
24m |
3-5 |
2.59 |
97 |
75 |
147.8 |
